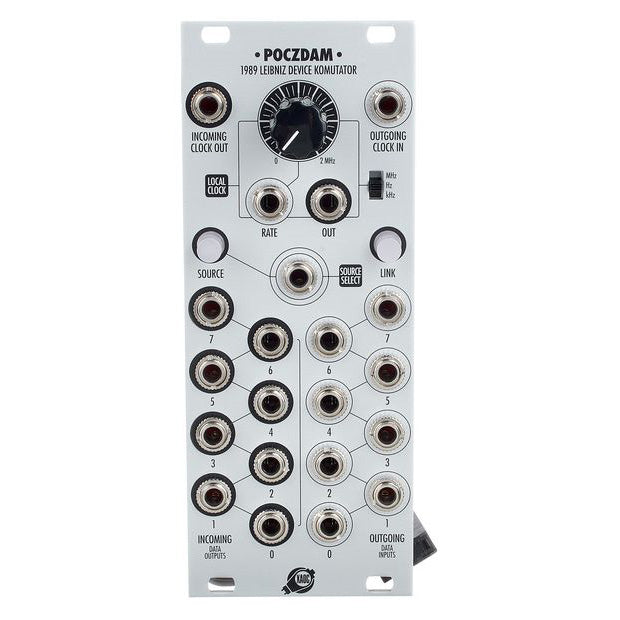

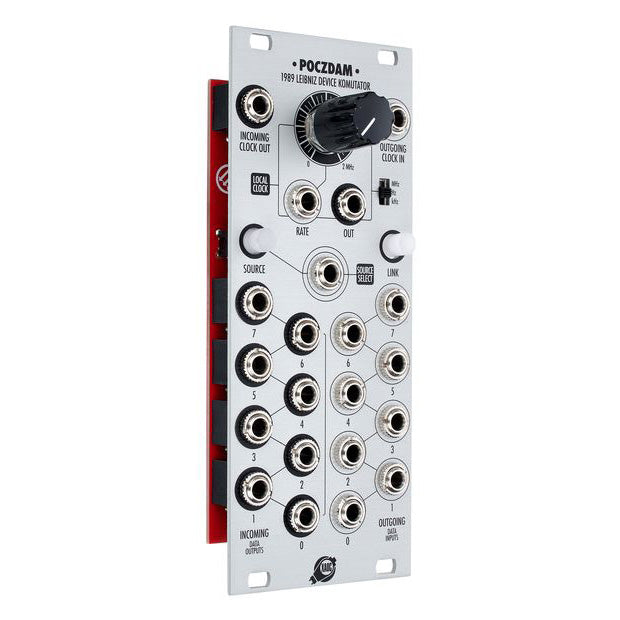

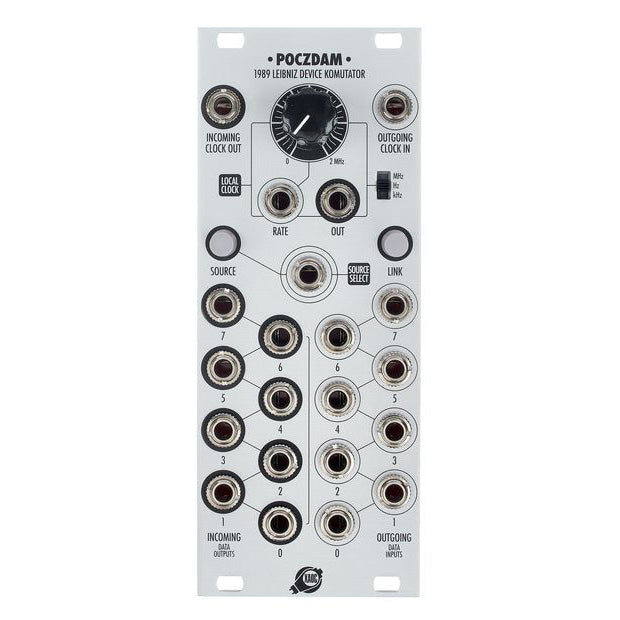

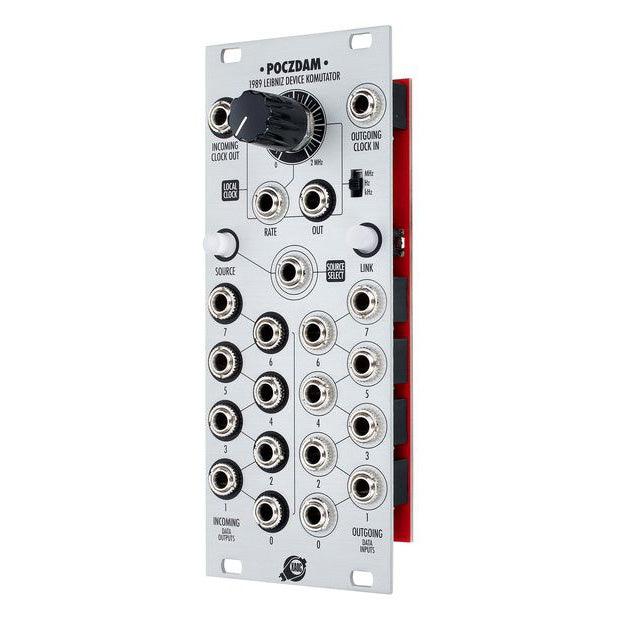

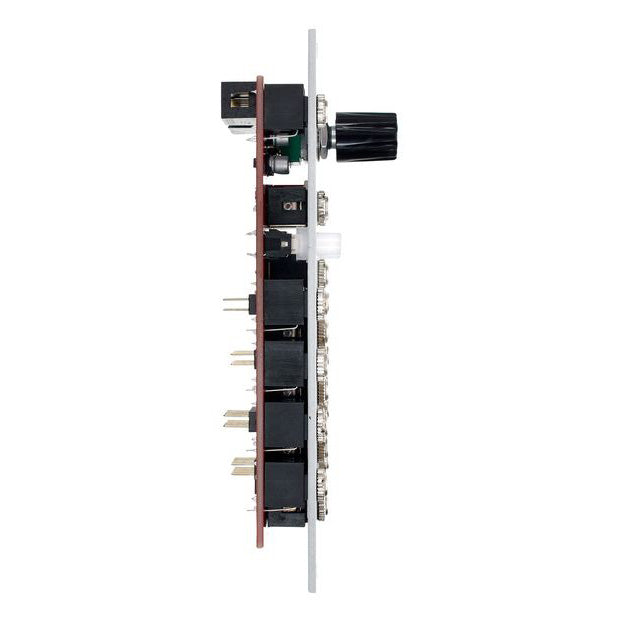

Xaoc Devices Poczdam

Data routing expander in the Leibniz subsystem

• Part of the Leibniz binary system (Dresden, Erfurt, Jena, Leipzig, Potsdam)

• Data routing
• Neutral Leibniz data clocking
• Internal CV clock generator (up to 2 MHz)
• 8 data inputs and outputs each
• Combination mode


Xaoc Devices Gera &amp,amp- PotsdamXAOC Devices Potsdam at a glanceThe

Potsdamexpander

module

is abinary data routing solution for

the

Leibniz subsystem of XAOC devices. It facilitates the manual and remote switchingbetween two Le ibnizdata sources (e.g. Dresden and Jena), the changing of individual bits of the data stream and the re-clocking of the data using the integratedClock voltage-controlled generator or an external clock signal. Potsdam is particularly useful in complex Leibniz configurations where thedata flow between multiple modules needs to bereconfigured. Other tricks such assplicingwaveforms, breaking loops or creatingdigital chaos also belong to the repertoire of this extension. In its role as an expander module, it is featureless on its own. To be fully effective, this module shouldbe used together with Dresden and Jena or Dresden and Erfurt.

Advantages:

• Manufacturer:XAOC Devices
• TE / HP:10
• Depth (mm):30
• + 12 V (mA):20
• - 12 V (mA):10
