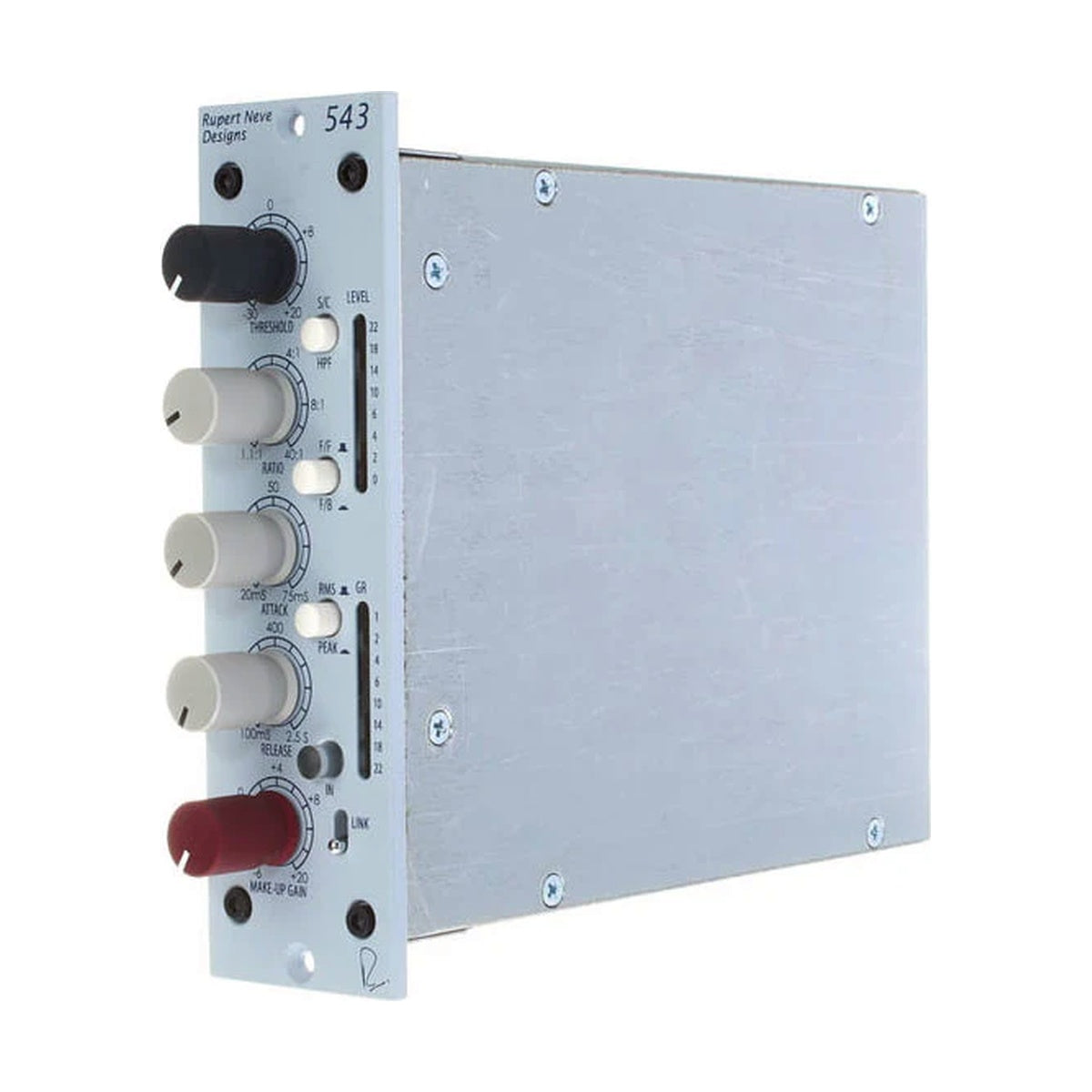

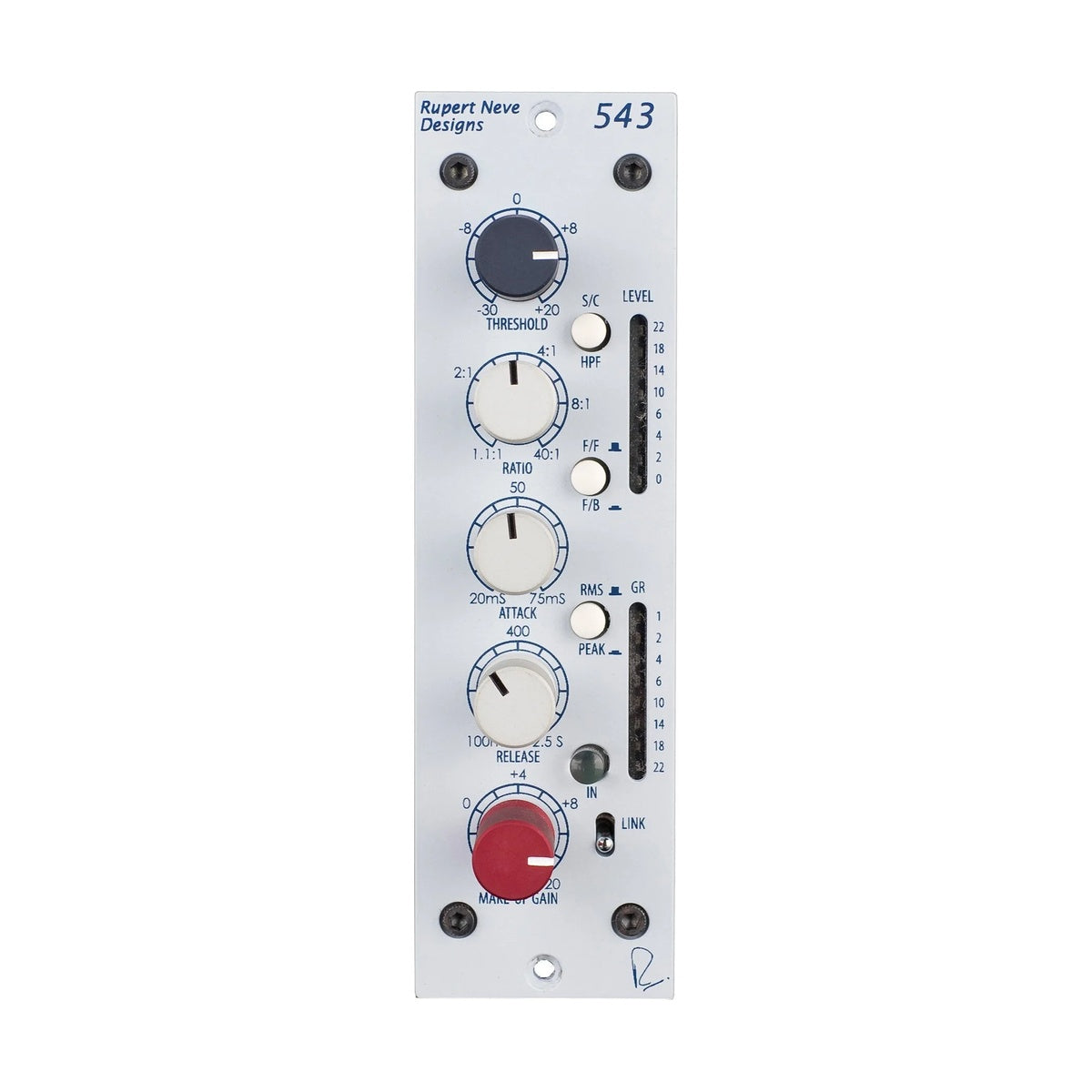

Rupert Neve Designs 543 Mono Compressor / Limiter – 500 Series mono VCA compressor/limiter for tracking, mixing, mastering. Delivers musical dynamic control with transparency and precision. Derived from Portico 5043, features feed-forward/feedback modes, Peak/RMS detection, sidechain HPF.
Custom transformers, individually controllable threshold, attack, release, makeup gain, ratio, sidechain HPF, FF/FB selection, Peak/RMS modes. Compressor bypassed: transformer-coupled line amp. Link two for stereo.
Single-slot module suits modular racks.
MAIN FEATURES
- Feed-forward/feedback modes
- Peak/RMS detection
- Sidechain HPF (250Hz)
- Ratios: 1.1:1 to 40:1
- Threshold: -30 to +20dB
- Attack/release variable
- Stereo link capable
- Line amp mode
TECHNICAL SPECIFICATIONS
- Format: 500 Series single-slot
- THD+N: <0.0006% bypassed; <0.02% engaged @1kHz +20dBu
- Noise: <-103dBu unity bypassed
- Power: 500 Series slot
- Dimensions: Standard 500 module
- Weight: Not specified
- Included: 543 module
- Product Code: 543
