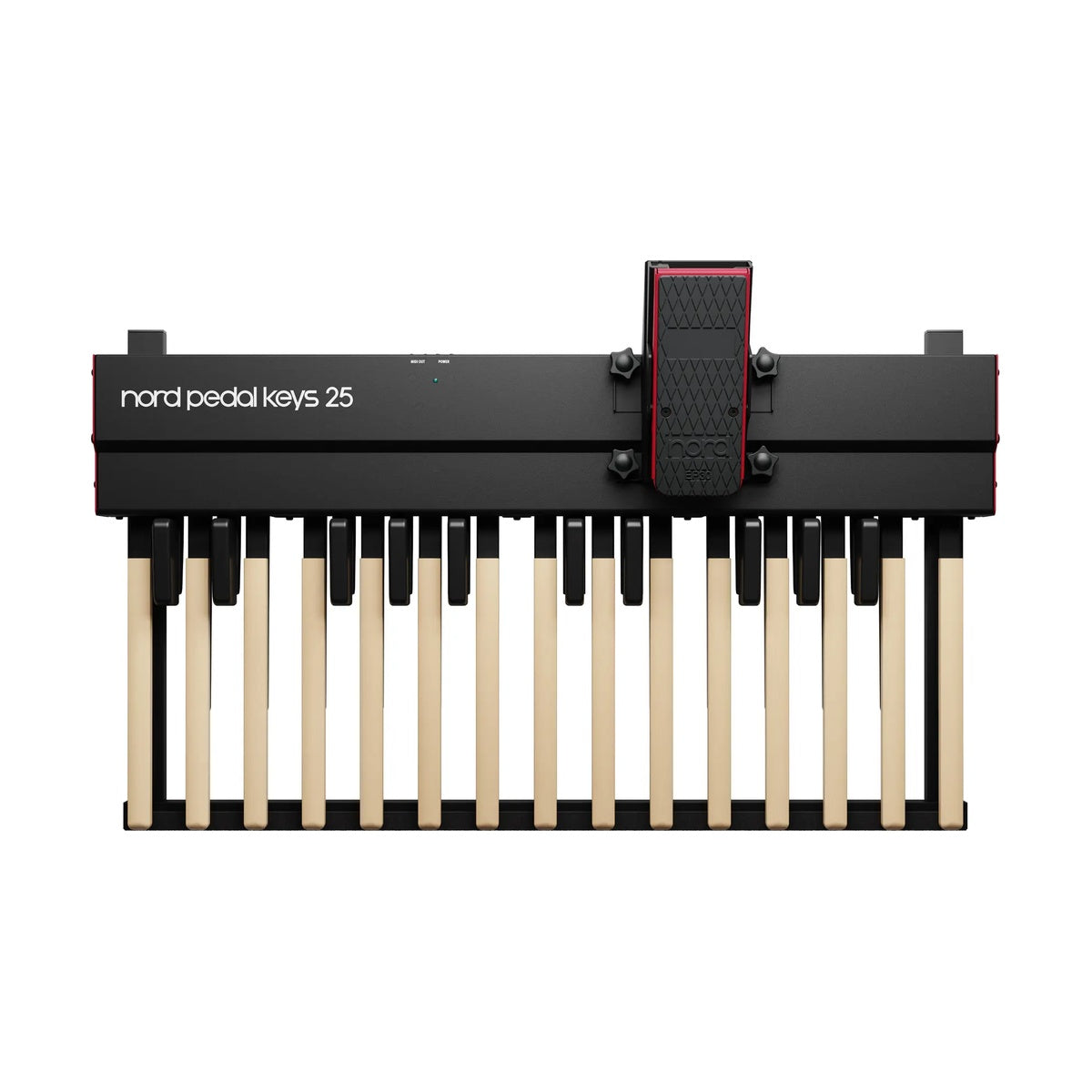

Nord Pedal Keys 25 – professional MIDI pedal keyboard designed for organ bass performance and foot control. The 25 wooden pedals covering C2–C4 provide accurate response and authentic feel for heel-toe playing techniques.
Authentic organ performance response
Full-size wooden pedals deliver stability and precise articulation required for organ bass lines. Fixed velocity (64) ensures consistent MIDI output, ideal for Hammond-style engines and pipe organ simulations. The 25-note layout follows traditional pedalboard standards.
MIDI integration and expressive control
Standard 5-pin MIDI output ensures compatibility with any MIDI-enabled hardware or software. The included Nord EP30 expression pedal mounts directly onto the unit and features adjustable resistance. When used with Nord Organ 3, the unit can be phantom-powered via MIDI, reducing cable requirements.
KEY FEATURES
- 25 wooden pedal keys
- Range: C2–C4 (MIDI notes 36–60)
- Fixed velocity output (64)
- 5-pin DIN MIDI output
- Included Nord EP30 expression pedal
- Adjustable expression pedal resistance
- MIDI-powered (with Nord Organ 3) or external 9V supply
- Compatible with all MIDI devices
- Aluminium chassis construction
- Designed for heel-toe playing technique
TECHNICAL SPECIFICATIONS
- Type: MIDI pedal keyboard
- Number of keys: 25
- Range: C2–C4
- MIDI transmission: channel 3, velocity 64
- Outputs: MIDI DIN
- Expression pedal: Nord EP30 (included)
- Power: MIDI (Nord Organ 3) or 9V DC
- Construction: aluminium
- Dimensions: 980 x 242 x 611 mm
- Weight: approx. 15.5 kg
