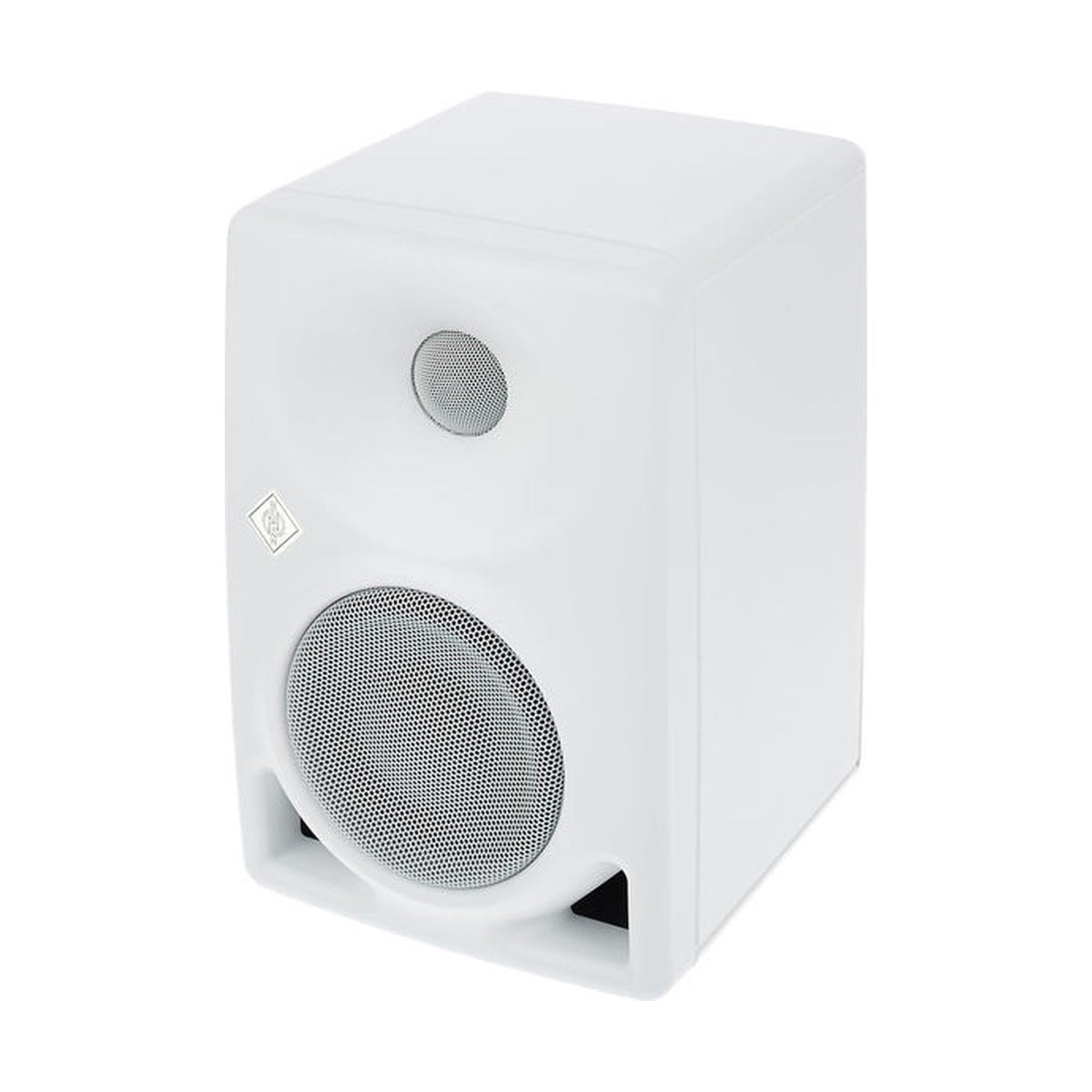

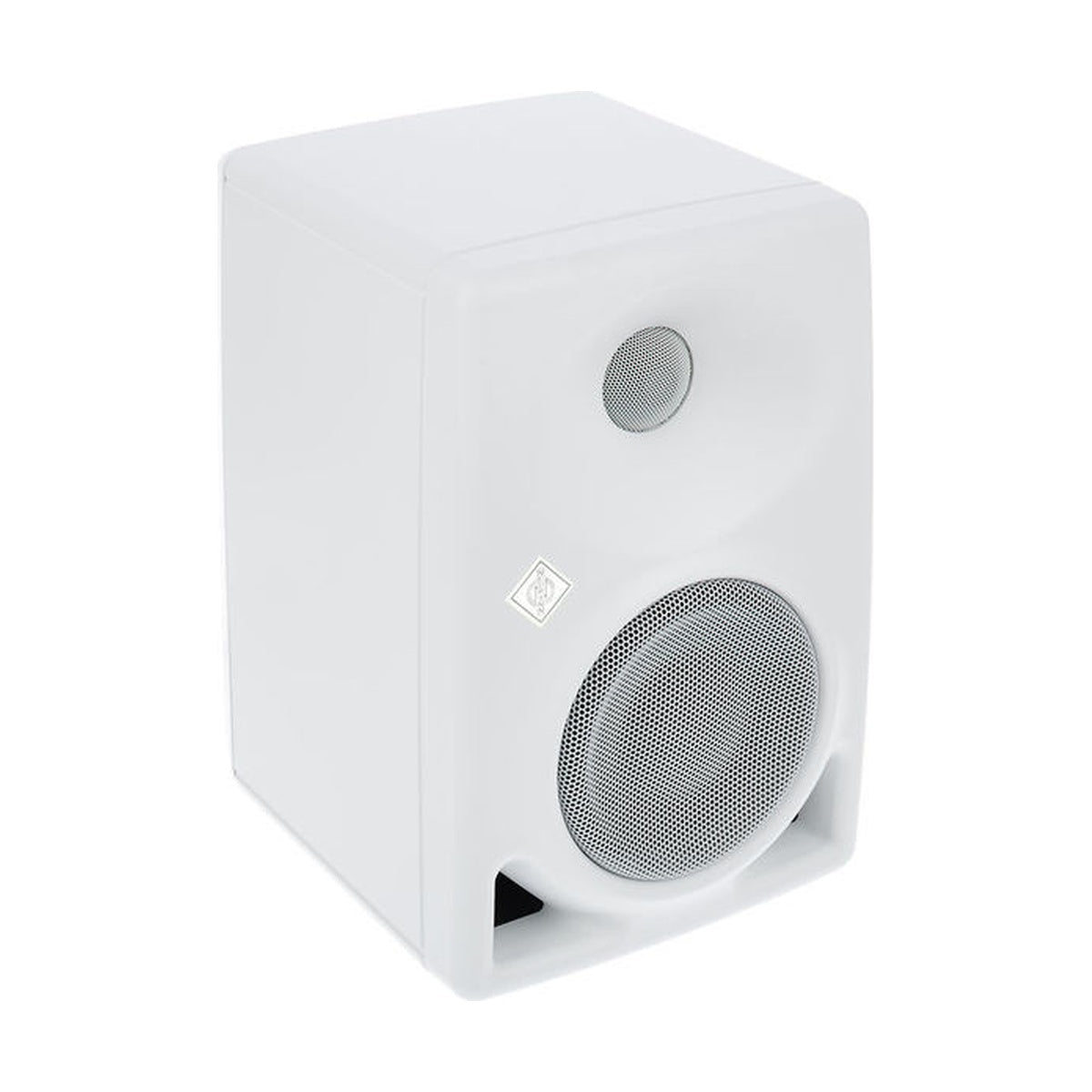

Neumann KH 80 DSP A W EU is an ultra-compact two-way active nearfield studio monitor in elegant white finish (RAL 9016), designed for project studios, video editing, and broadcast. Featuring a new DSP engine with ultra-low latency (<2 ms) and Mathematically Modeled Dispersion™ technology, it delivers reference sound quality with precise imaging despite its miniature size. The 4" woofer and 1" tweeter powered by Class D amplifiers (150W LF + 55W HF) offer deep bass down to 57 Hz (-3 dB) and maximum SPL of 108.8 dB, perfect for nearfield monitoring.

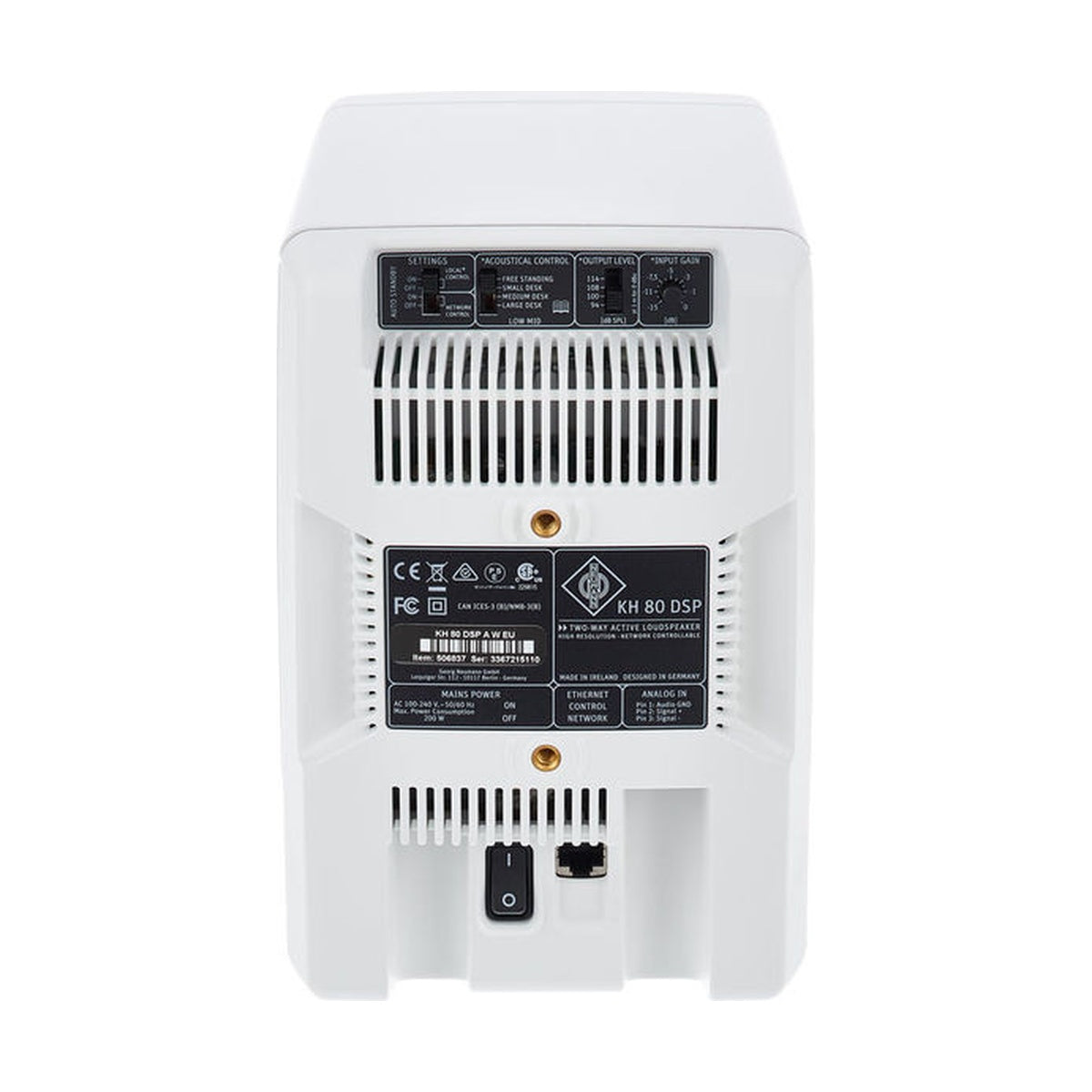

The monitor stands out with integrated metal grilles, 2x M6 mounting points, and full compatibility with the Neumann.Control i app (iPad) for remote control and acoustic calibration. XLR analog input with gain control, advanced DSP limiting, and self-calibration with MA 1 system make it incredibly versatile. The white design and compact dimensions (233 x 154 x 194 mm) allow discreet placement in any studio environment.
KEY FEATURES
- Two-way DSP monitor with ultra-low latency (<2 ms)
- 4" woofer + 1" tweeter (150W LF + 55W HF Class D)
- MMD™ waveguide technology for precise imaging
- XLR analog input, Neumann.Control i and MA 1 compatible
- Max SPL 108.8 dB, 57 Hz - 21 kHz (-3 dB)
- 2x M6 mounting points, integrated metal grilles
- White finish (RAL 9016), EU mains cable
- Advanced DSP limiting and room alignment
TECHNICAL SPECIFICATIONS
- Configuration: 2-way bi-amped DSP
- Drivers: 100 mm (4") woofer, 25 mm (1") tweeter
- Frequency Response: 57 Hz - 21 kHz (-3 dB)
- Max SPL: 108.8 dB @ 1m (3% THD, 100 Hz - 6 kHz)
- Amplifiers: 150W LF (cont.), 55W HF (cont.)
- Crossover: 1.8 kHz, 48 dB/oct (8th order)
- Input: XLR electronically balanced
- Dimensions: 233 x 154 x 194 mm (9 1/8" x 6" x 8 5/8")
