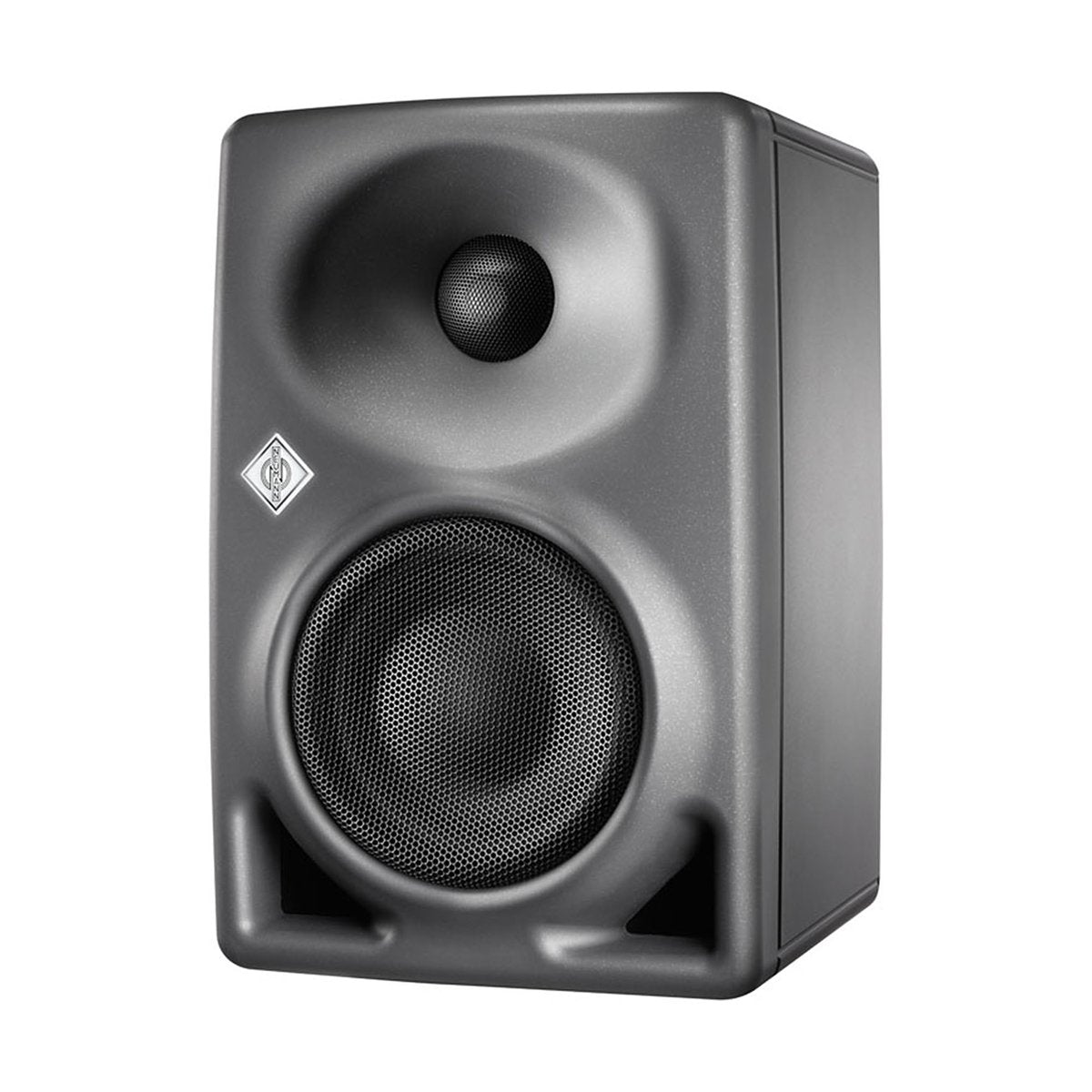

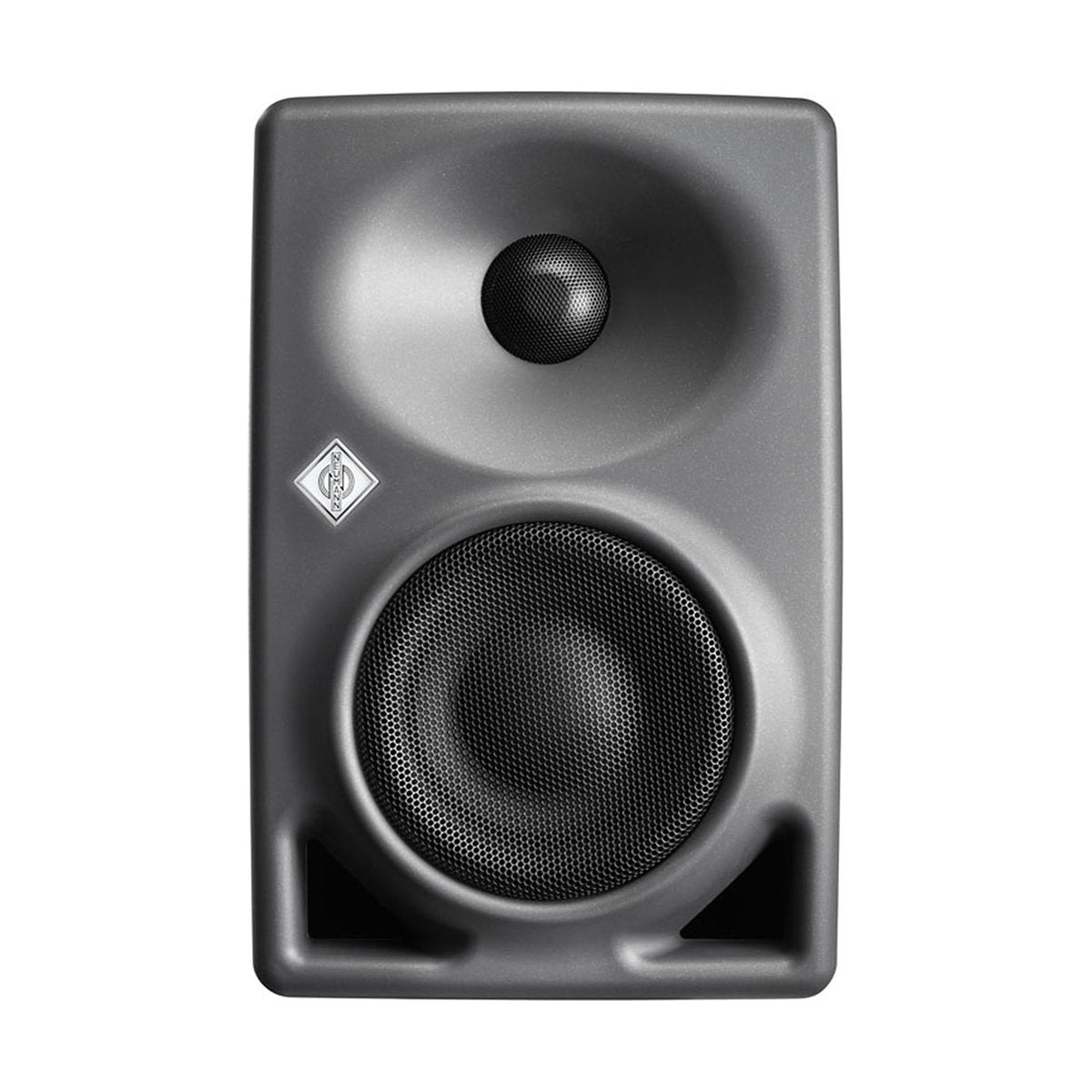

Neumann KH 80 DSP A G EU is an ultra-compact two-way active nearfield studio monitor in classic Graphite finish (RAL 7021), designed for project studios, video editing, and broadcast. Featuring a new DSP engine with ultra-low latency (<2 ms) and Mathematically Modeled Dispersion™ (MMD™) waveguide technology, it delivers reference sound quality with razor-sharp stereo imaging. The 4" composite woofer and 1" lightweight dome tweeter powered by Class D amplifiers (150W LF + 55W HF) provide deep bass extension to 57 Hz (-3 dB) and maximum SPL of 108.8 dB.[web:612]

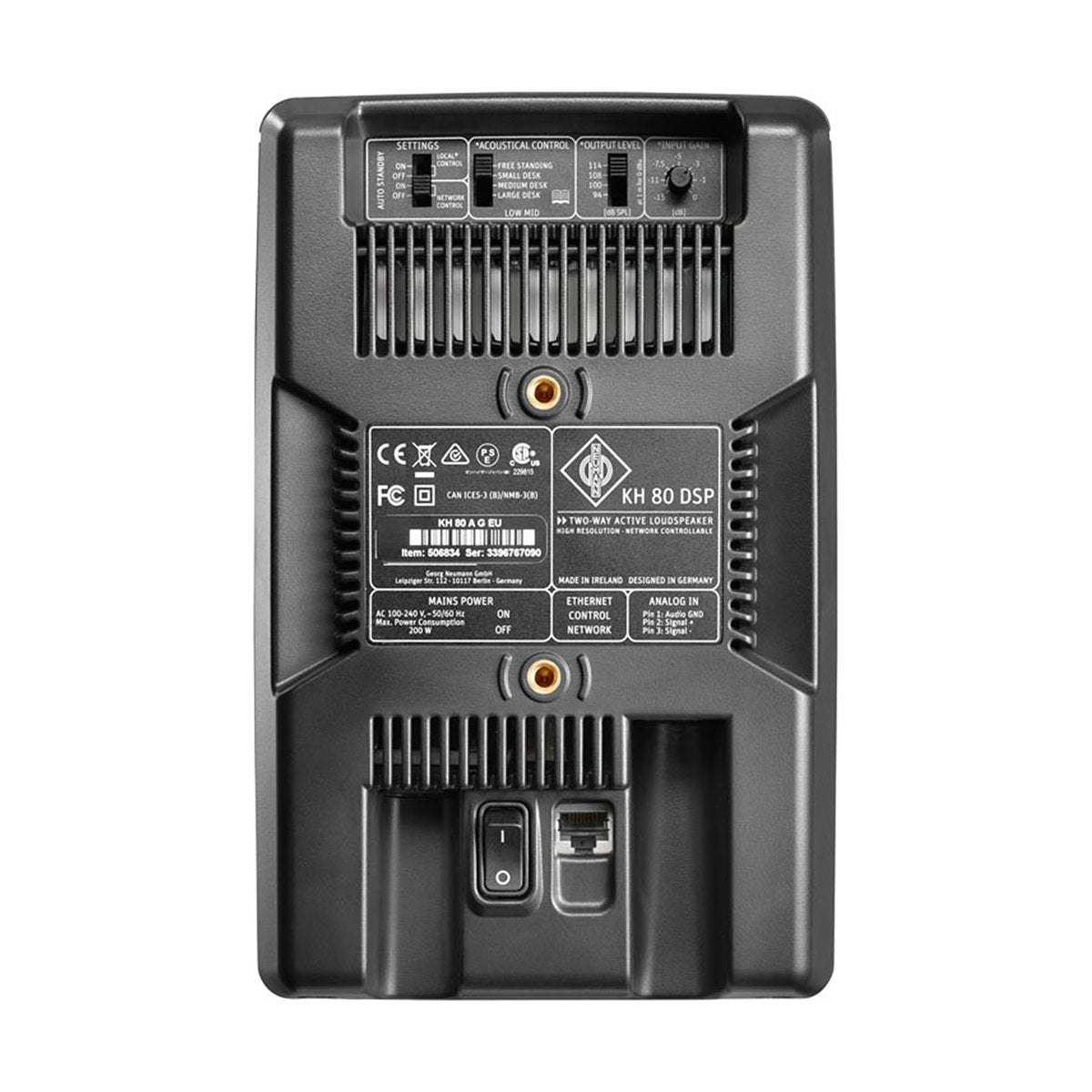

The monitor features integrated protective metal grilles, dual M6 mounting points, and full compatibility with the Neumann.Control i app (iPad) for remote EQ, volume control, and acoustic calibration with MA 1 system. Advanced DSP limiting (peak/excursion/thermal), linear FIR 1.8 kHz crossover (48 dB/oct), and 4-position Low-Mid acoustic controls enable perfect room adaptation. Balanced XLR analog input with gain control provides exceptional flexibility for studio applications.
KEY FEATURES
- Two-way DSP monitor with ultra-low latency (<2 ms)
- 4" woofer + 1" tweeter (150W LF + 55W HF Class D)
- MMD™ waveguide for precise stereo imaging
- XLR analog input, Neumann.Control i + MA 1 compatible
- Max SPL 108.8 dB, 57 Hz - 21 kHz (-3 dB)
- 2x M6 mounting points, integrated metal grilles
- Graphite finish (RAL 7021), EU mains cable
- Linear FIR crossover 1.8 kHz (48 dB/oct)
TECHNICAL SPECIFICATIONS
- Configuration: 2-way bi-amped DSP
- Drivers: 100 mm (4") woofer, 25 mm (1") tweeter
- Frequency Response: 57 Hz - 21 kHz (-3 dB)
- Max SPL: 108.8 dB @ 1m (3% THD, 100 Hz - 6 kHz)
- Amplifiers: 150W LF (cont.), 55W HF (cont.) Class D
- Crossover: 1.8 kHz, 48 dB/oct (8th order FIR)
- Input: XLR electronically balanced (+24 dBu max)
- Dimensions: 233 x 154 x 194 mm (HxWxD), weight 3.5 kg
