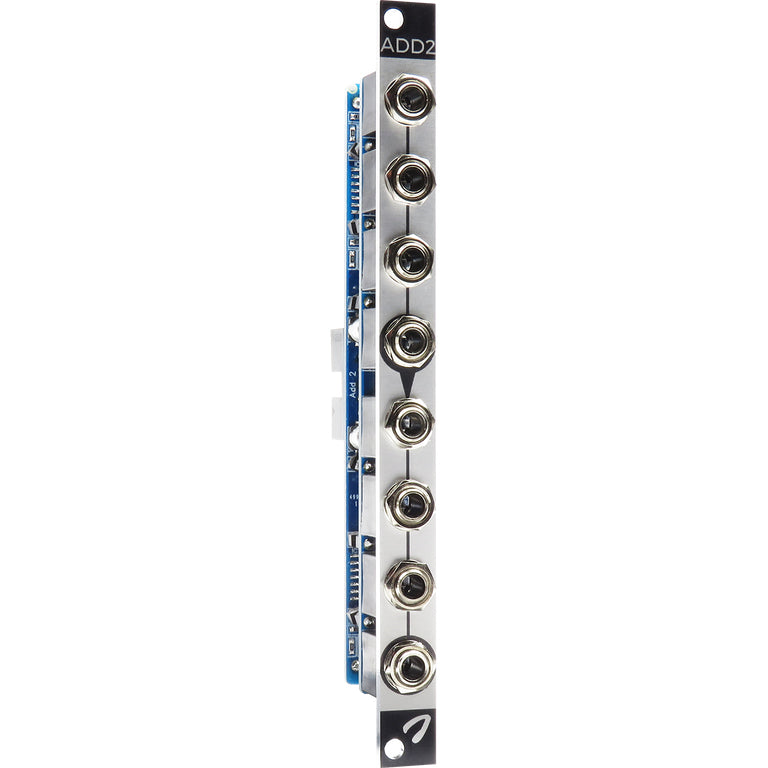

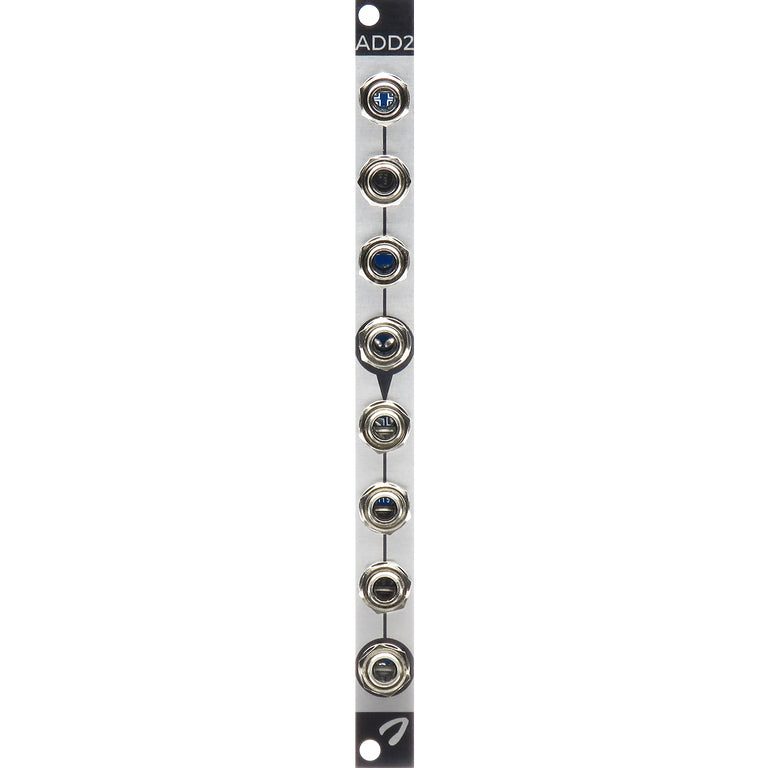

Joranalogue Add 2 is a precision mixer and signal summing module.
Add 2 is a compact yet extremely flexible module for Eurorack modular synthesizers. It allows for precise summing or mixing of up to 5 signal sources into 2 outputs with the highest accuracy.
Functionality and Flexibility
Functions as a 5-in-2 or two 3-in-1 summing/mixing module
Each section can be configured for summing or averaging signals
When averaging, signal levels are combined without clipping
Uncompromising signal quality
High-precision components with low noise/distortion
Flat frequency response up to 20 kHz for audio and CV/gates
Impedance-compensated outputs
Compact and reliable design
Ultra-compact 2 HP format
Milled aluminum panel with laser graphics
Protection against reverse power polarity
Power cable and mounting hardware included
Ideal for combining control signal sources, LFOs, audio, and gates/triggers with maximum precision.
Technical Specifications:
- Width 2HP
- JoranalogueVoltage and current +12: 20 mA, −12: 20 mA
