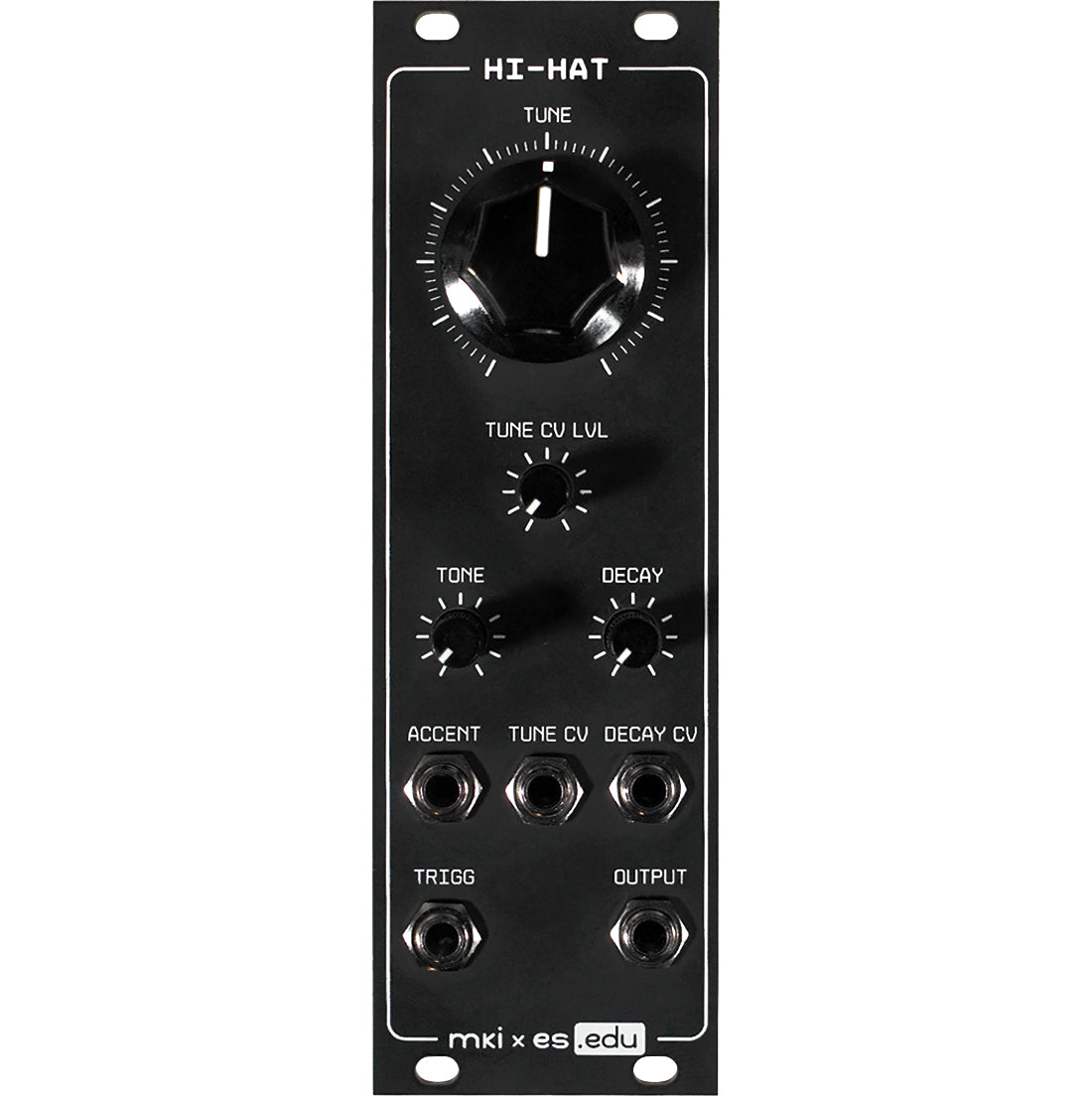

Erica Synths EDU DIY Hi-Hat is a module recreating the sounds of classic electronic hi-hats.
The EDU DIY Hi-Hat will teach you the basics of working with analog circuits and allow you to experiment with the iconic 808 timbre. Adjust pitch, decay, and detune manually or via CV. Add accents to create a more lively and expressive rhythm section.
Its sturdy metal panel and compact form make the EDU DIY Hi-Hat ideal for both electronics learning and use in modular patches and performances.
Features and specifications:
- TR-808 inspired circuit
- Manual control of pitch, decay, and detune
- Pitch and decay control via CV
- Accent input
- CV range: -5V to +5V
- Accent threshold: >+2.5V
- Width: 8 HP
- Depth: 30 mm
- Power consumption: +12V 7mA, -12V 7mA
