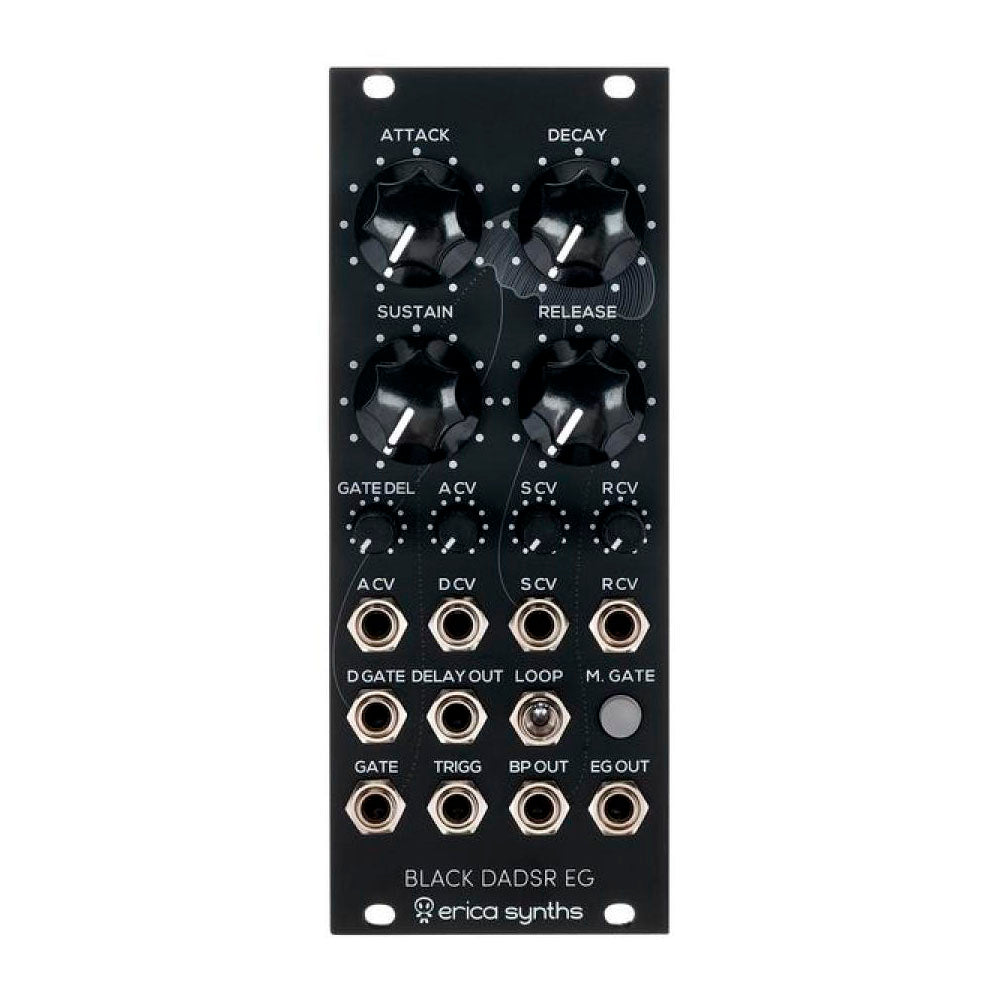

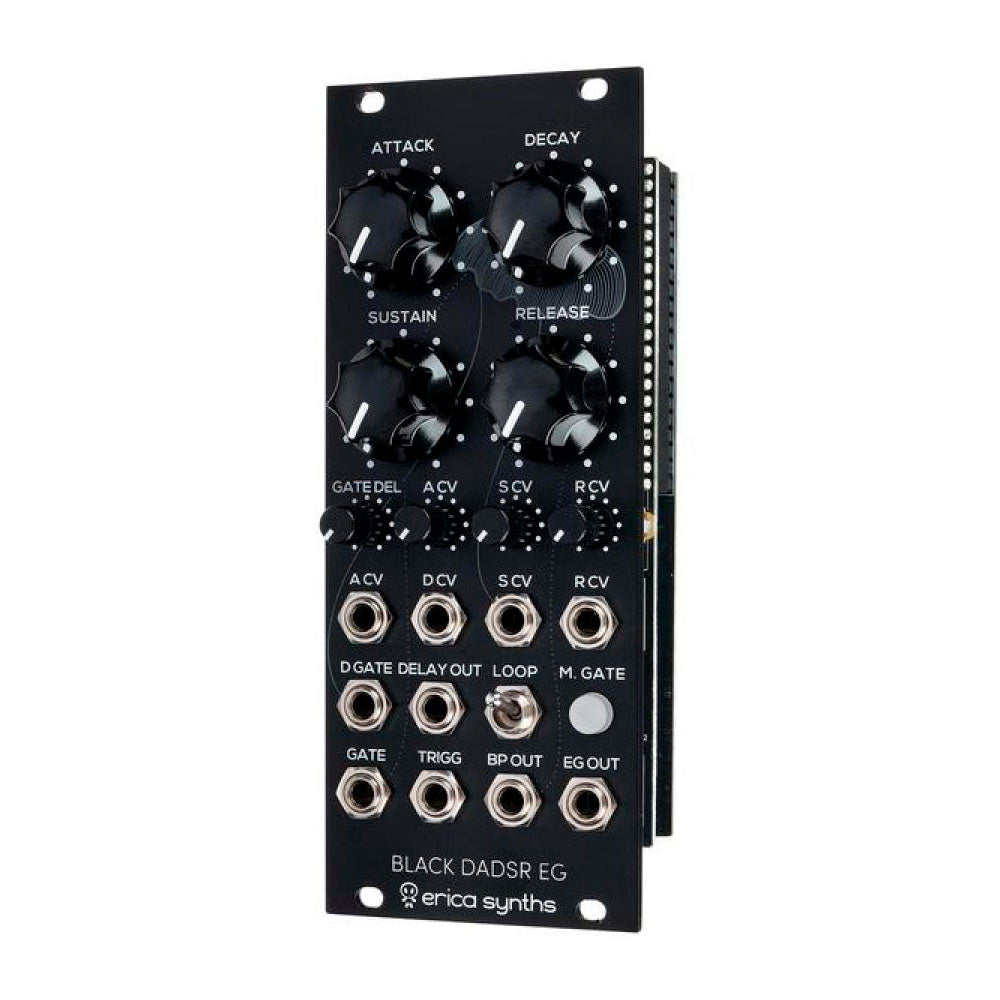

Erica Synths Black DADSR EG is an analog envelope generator module. Each parameter (Delay, Attack, Decay, Sustain, Release) is controlled via CV. A Gate Delay is provided for trigger delay. The module features unipolar and bipolar outputs, allowing it to be integrated into various Eurorack systems. Additionally, a manual Gate button and a switchable Loop mode are available for creating repeating envelopes.
Black DADSR EG Features
- Re-triggerable exponential DADSR envelope generator
- CV control over each stage
- Gate delay with a manually controlled delay time
- CV attenuators
- Looping function
- Manual gate button
Black DADSR EG Specifications
- Attack time (with max CV): 0…2.5” (4.4”)
- Decay time (with max CV): 0…5” (12”)
- Sustain level: 0…10V
- Release time (with max CV): 0…4.5” (10”)
- Gate delay time: 0.7”
- CV level (full sweep): -5V - +5V
- Panel width: 10HP

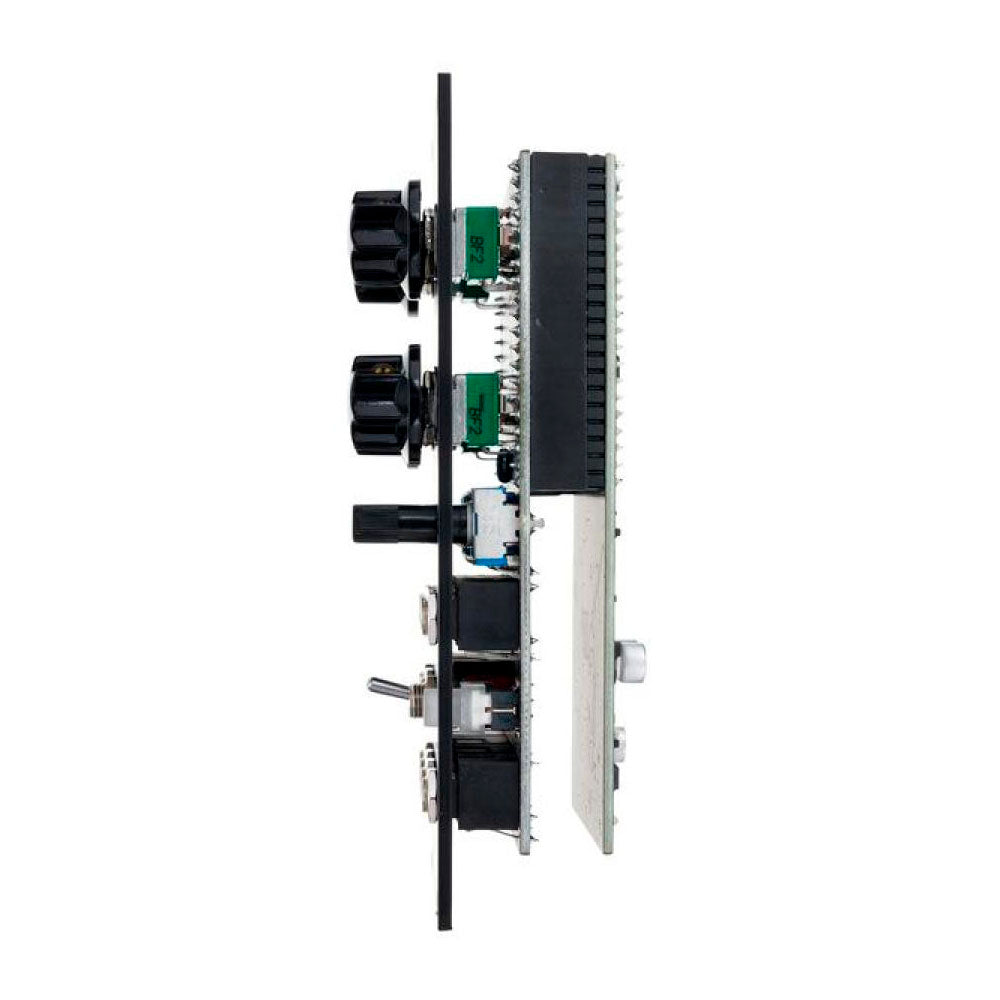

- Module depth: 30mm
- Power consumption: 42mA@+12V, 58mA@-12V
