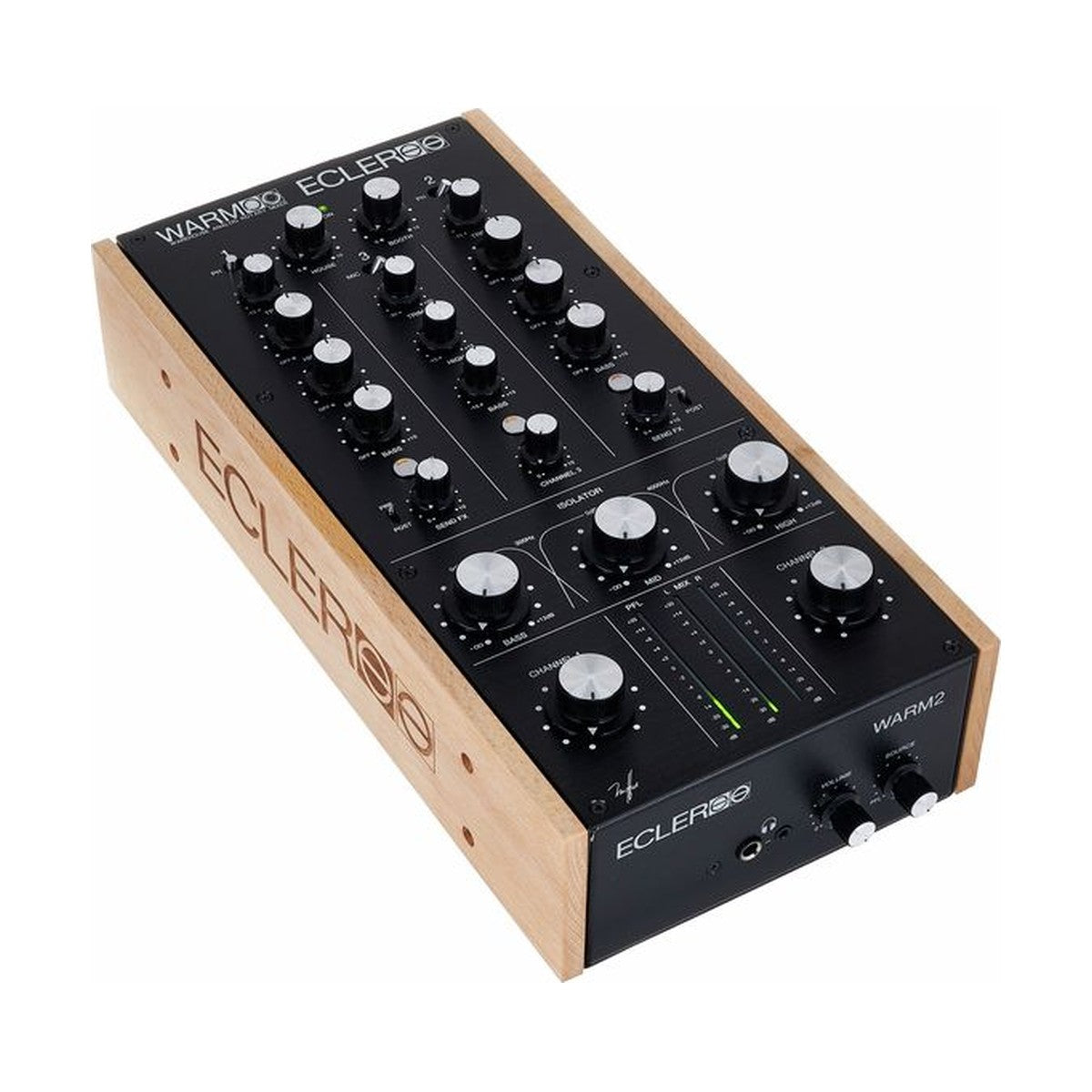

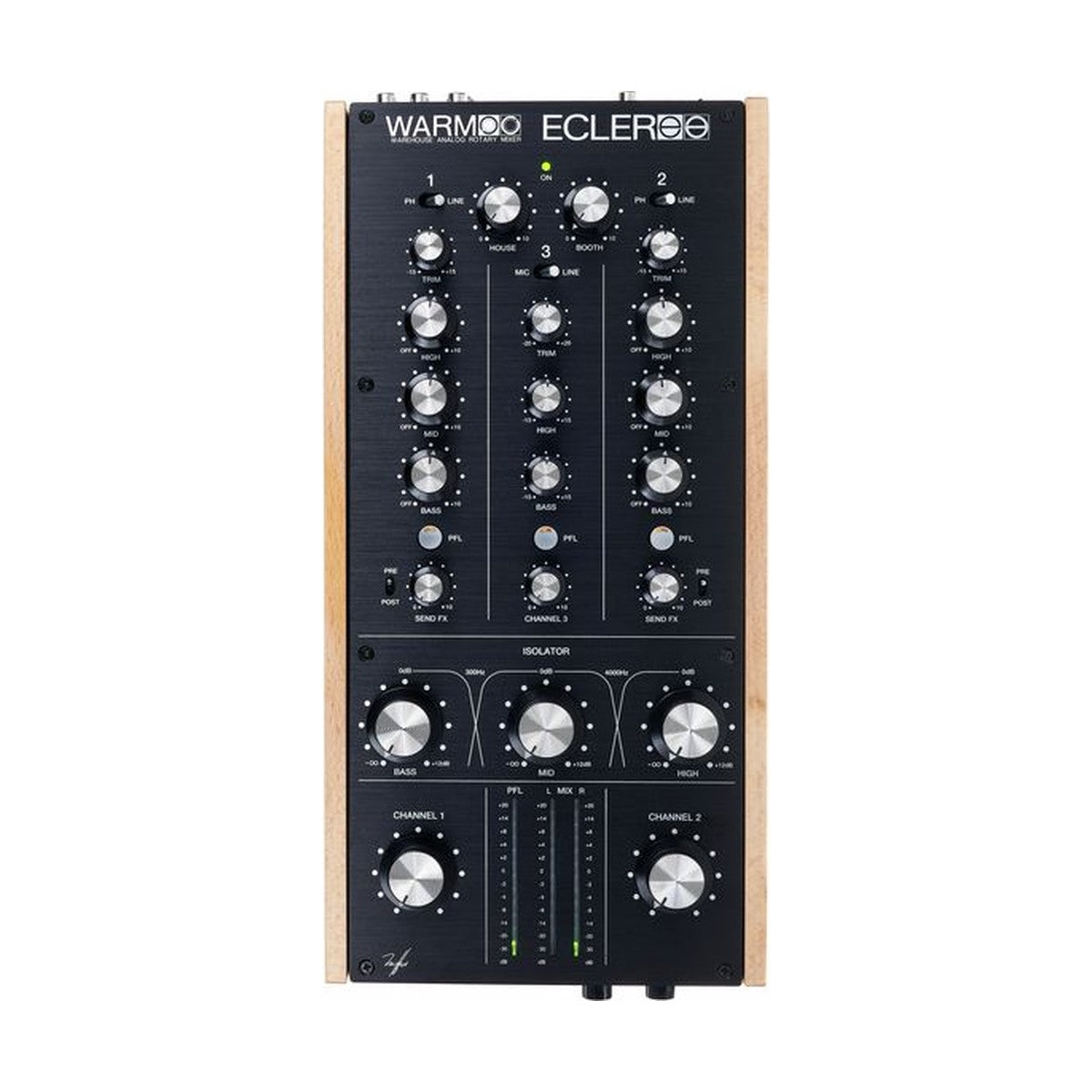

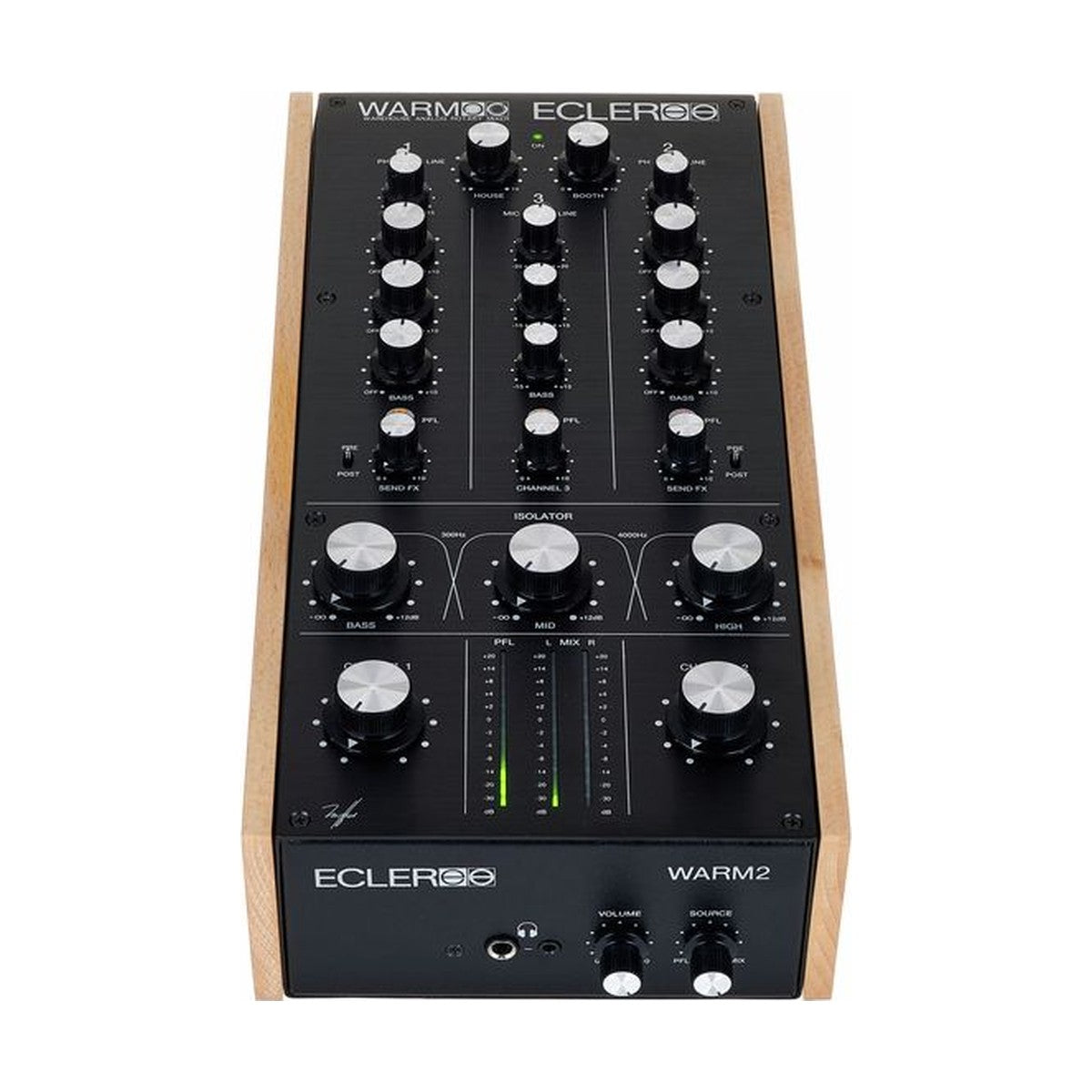

Ecler WARM 2 is a professional, fully analog 2‑channel rotary DJ mixer designed to deliver a characterful, musical and truly “warm” sound. With its compact footprint, classic rotary layout and 3‑band isolator, the WARM 2 is perfectly suited for house, disco, techno and eclectic DJ sets in clubs, bars, audiophile listening rooms or home studios.
The mixer features a 2+1 channel configuration: two main channels switchable between PHONO and LINE sources, plus a dedicated MICRO/LINE channel that can be used either as a microphone input or as a third stereo line input. Channels 1 and 2 offer a full‑cut 3‑band EQ, while the MIC/LINE channel is equipped with a full‑cut 2‑band EQ. A powerful 3‑band isolator (with crossover points around 300 Hz and 4 kHz, 24 dB/oct slope) lets you aggressively sculpt lows, mids and highs. The output section includes a balanced/unbalanced MASTER (HOUSE) output, BOOTH/monitor output, record output, and dual headphone outputs (6.3 mm and 3.5 mm), all supported by a large 12‑segment LED meter for MIX and PFL.
KEY FEATURES
- Professional fully analog 2‑channel rotary DJ mixer with 2+1 channel architecture
- 2 PHONO inputs, 3 LINE inputs and 1 MICRO input (channel 3 switchable MIC/LINE)
- 3‑band full‑cut EQ (bass, mid, treble) on the two main channels
- 2‑band full‑cut EQ on the MICRO/LINE channel
- Dedicated 3‑band isolator (approx. 300 Hz and 4 kHz, about −∞ / +12 dB, 24 dB/oct) for creative sound shaping
- FX Send with level control and Pre/Post fader switch for external effects
- Large 12‑segment LED MIX and PFL VU meter for precise level monitoring
- Premium ALPS Blue Velvet rotary potentiometers for exceptionally smooth volume control

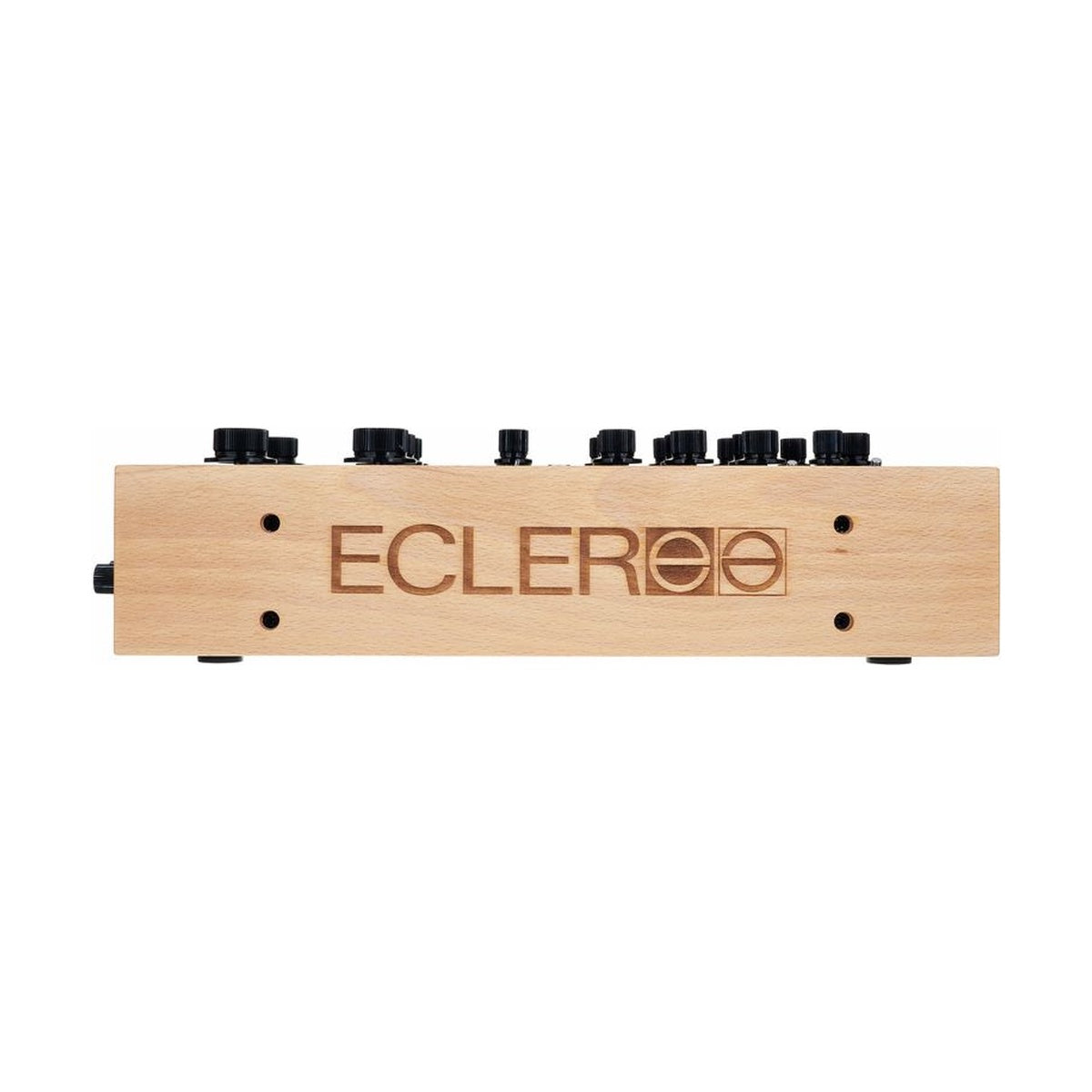

- Wooden side panels and custom aluminium knobs for a premium, vintage‑inspired look
TECHNICAL SPECIFICATIONS

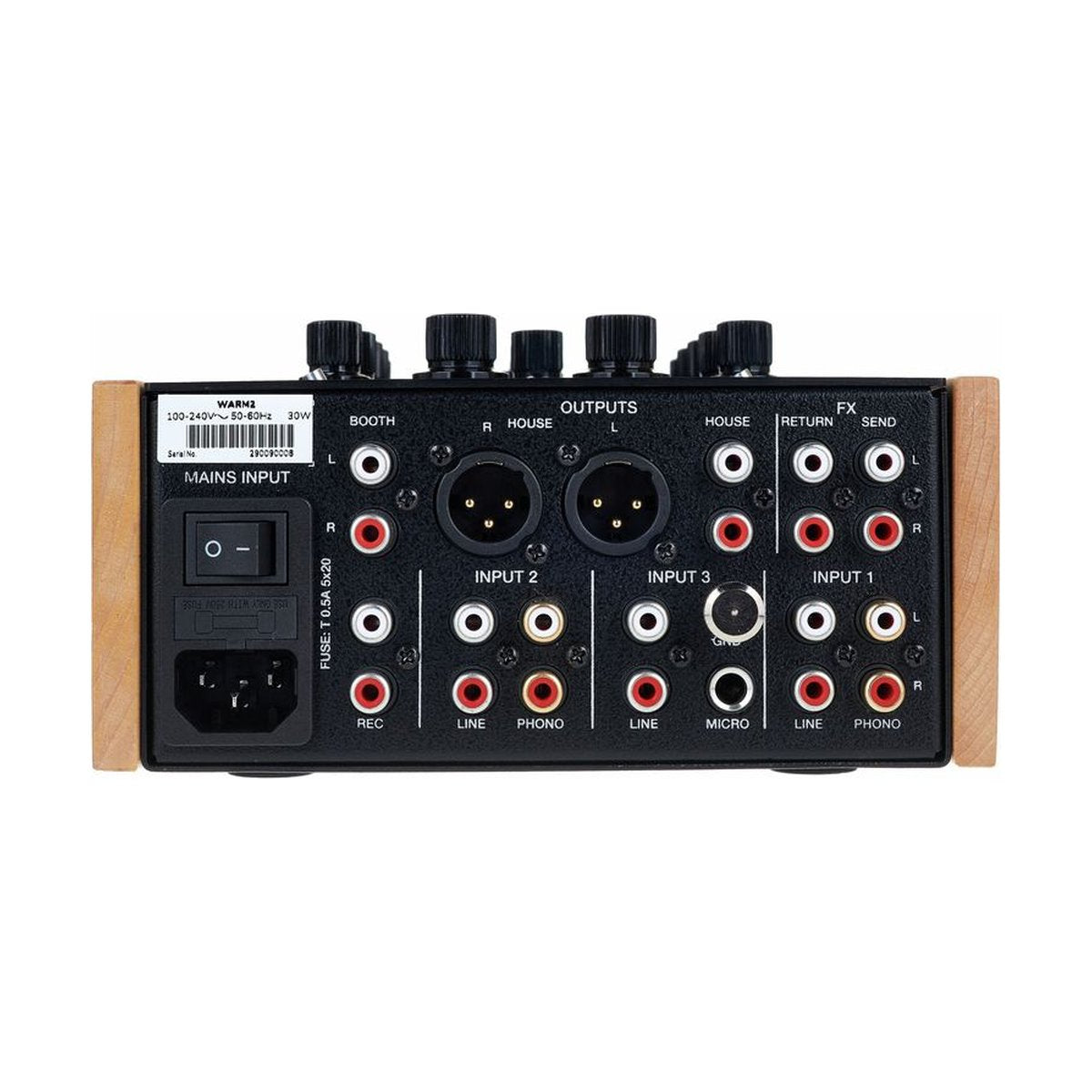

- Inputs: 2 × PHONO (RCA), 3 × LINE (RCA), 1 × MICRO (6.3 mm TRS jack), FX RETURN (stereo RCA)

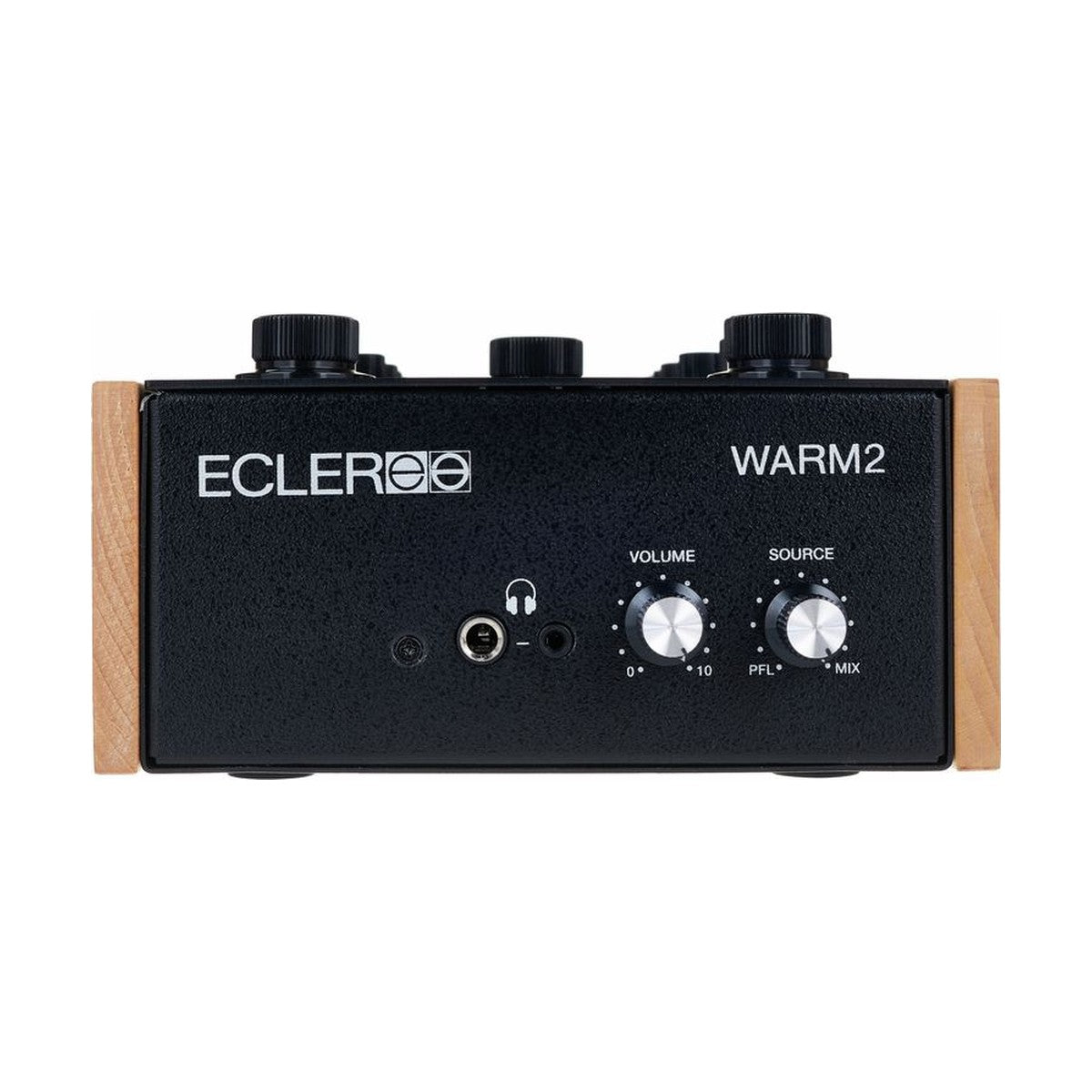

- Outputs: MASTER (HOUSE) balanced XLR + RCA, BOOTH/Monitor (RCA), RECORD/HOUSE output, headphone outputs 6.3 mm and 3.5 mm stereo jacks
- Channel EQ 1–2: 3‑band full‑cut EQ (bass / mid / treble)
- Channel EQ 3 (MIC/LINE): 2‑band full‑cut EQ
- Isolator: 3‑band, crossover points around 300 Hz and 4 kHz, approx. −∞ / +12 dB range, 4th‑order 24 dB/oct filters
- Maximum undistorted output level: approx. 21 dBV (around 23 dBu)
- Signal‑to‑noise ratio: high SNR figures for LINE / PHONO / MIC paths (typically above 85–99 dB depending on input)
- Phantom power for microphone input: approx. 18 V DC (default ON)
- Meters: 12‑segment LED bargraph for MIX and PFL (approx. −30 dBV to +20 dBV)
- Power supply: 90–264 V AC, 47–63 Hz, rated power consumption approx. 30 VA
- Dimensions (without wooden sides): approx. 400 × 185 × 100 mm
- Weight: approx. 3.6 kg
