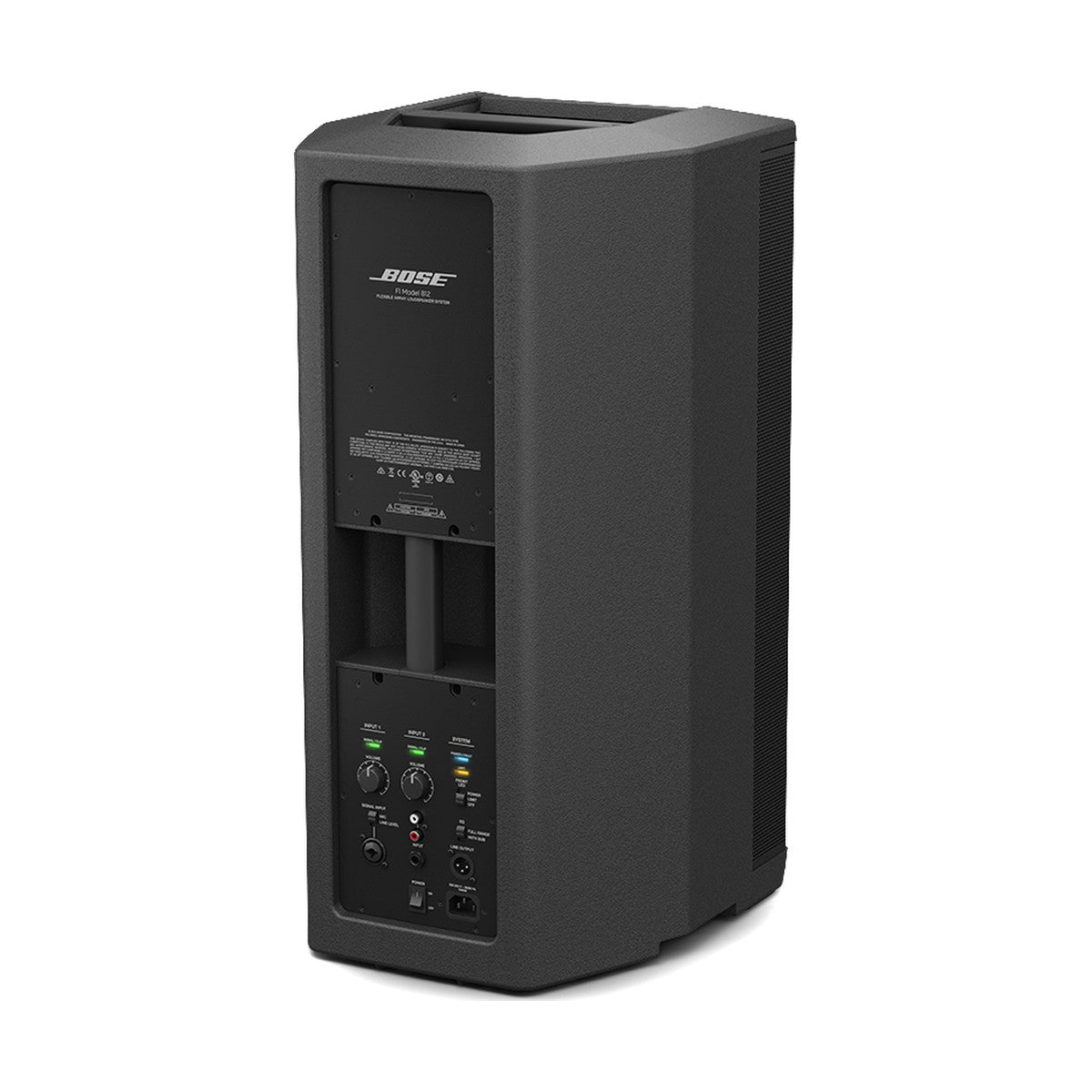

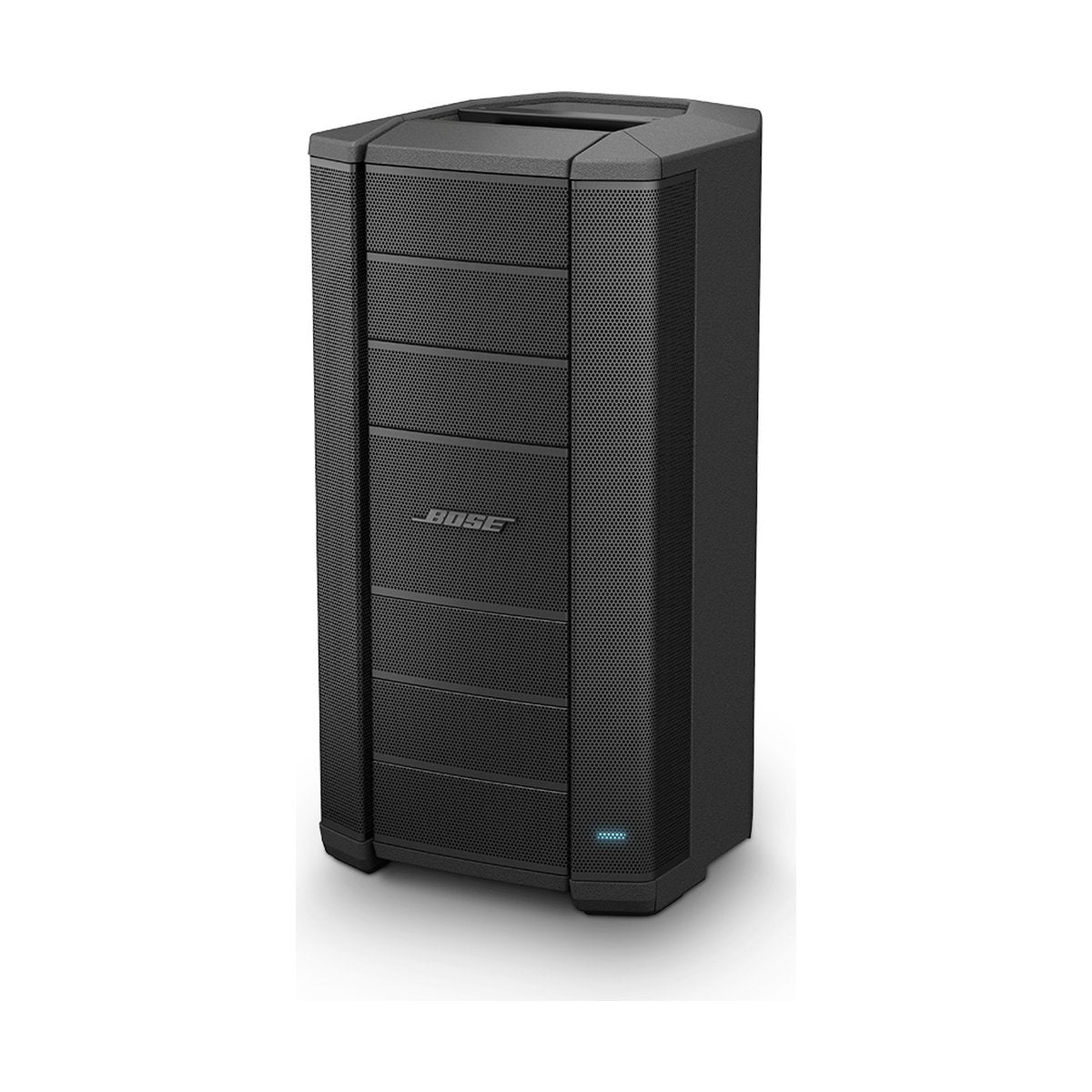

Bose F1 Model 812 Flexible Array – a powered two-way loudspeaker with an adjustable pole of eight 2.25" drivers and a 12-inch low-frequency woofer, delivering a maximum SPL of 132 dB peak, frequency response down to 52 Hz, and 1000 W of system power from two independent Class-D amplifiers.
Four array shapes instead of a fixed horn throw

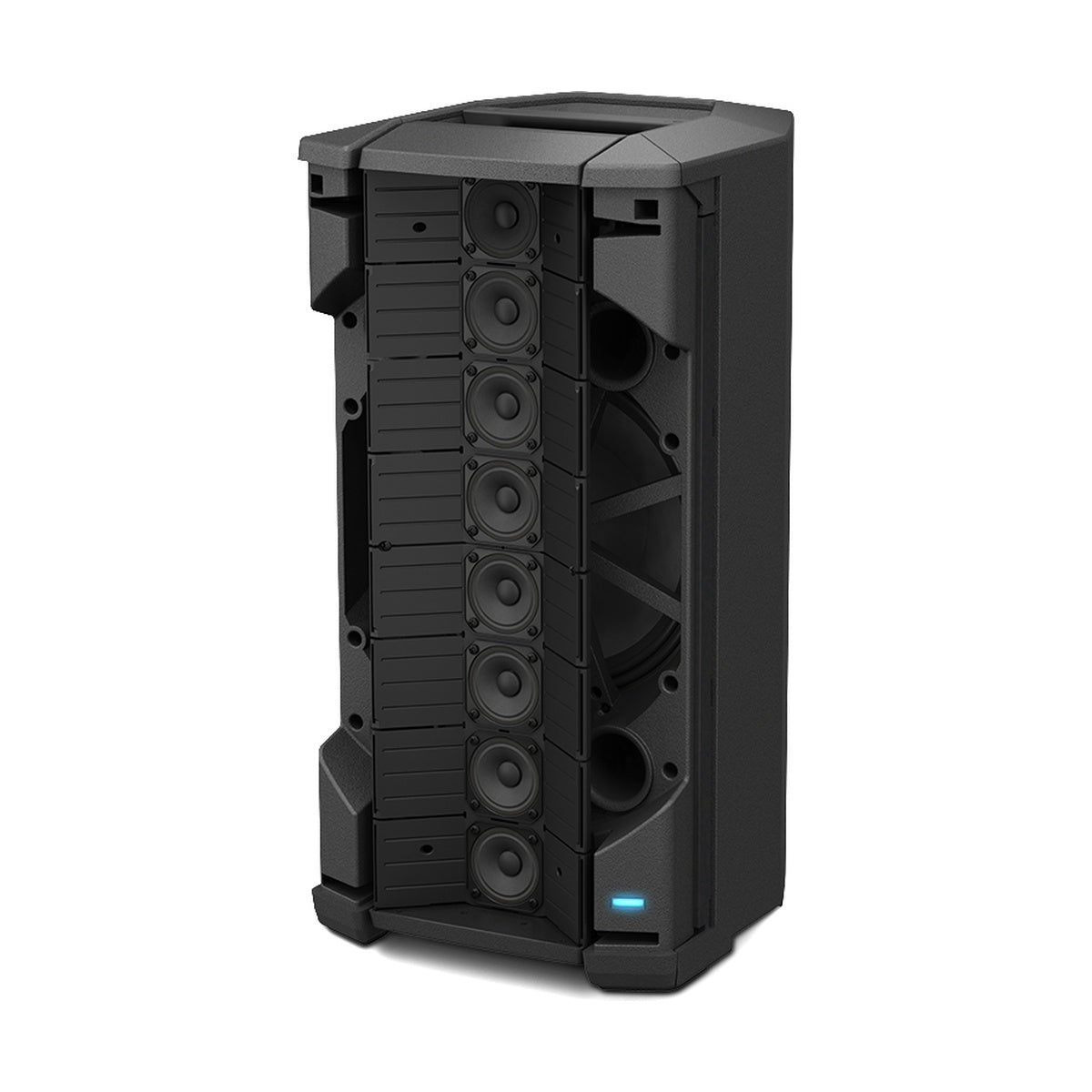

Eight drivers mounted on a flexible baffle, hinged at two points, give four vertical coverage positions – Straight, C, J, and Reverse J – instead of the fixed throw of a typical horn-loaded speaker on a pole stand, which often sends high frequencies over the heads of listeners. An engineer shapes the pole to fit the room: C works for floor-level shows with a standing crowd, J and Reverse J suit raked seating or bleachers, and Straight fits a simple setup on a tall stage. The system switches EQ automatically to match whichever position is chosen, so reshaping the array doesn't call for manually retuning the correction each time.
Bi-amping and a low crossover point – clean vocals at high SPL
Two independent Class-D amplifiers power the mid-high pole and the 12-inch woofer separately, and the crossover sits at 600 Hz, lower than a typical two-way design, so the vocal range is handled mostly by the eight-driver array rather than a single horn-loaded compression driver. That keeps vocals intelligible when the volume gets pushed at a loud outdoor event or wedding, instead of turning harsh and fatiguing the way conventional two-way horn designs tend to at high output.
KEY FEATURES
- Flexible pole with 4 coverage positions: Straight, C, J, Reverse J
- Automatic EQ switching matched to the selected pole position
- 8 × 2.25" drivers, each on its own 100-degree waveguide
- 12-inch low-frequency woofer
- Bi-amped design with two independent Class-D amplifiers
- 2 input channels with independent level control, Line/Mic switch on channel 1
- Built-in handles for transport
- 35 mm pole-mount cup
TECHNICAL SPECIFICATIONS
- System type: powered, two-way
- Frequency response (-3 dB): 52 Hz–15.5 kHz
- Frequency range (-10 dB): 43 Hz–20 kHz
- Nominal dispersion (C position): 100° horizontal × 40° vertical
- Maximum SPL @ 1 m: 132 dB peak
- Crossover frequency: 600 Hz, acoustic 4th-order Butterworth
- System power: 1000 W
- Distortion at rated power: max 0.1% (30 Hz–15 kHz)
- Inputs: channel 1 – balanced XLR; channel 2 – 1/4" TS/TRS, 1/8" TS/TRS, 2 × RCA
- Output: XLR line, mix of channels 1 and 2
- Dimensions: 664.7 × 334.3 × 372.5 mm (H × W × D)
- Weight: 20.18 kg
- Compatibility: optional Bose F1 Subwoofer, 35 mm speaker stands
