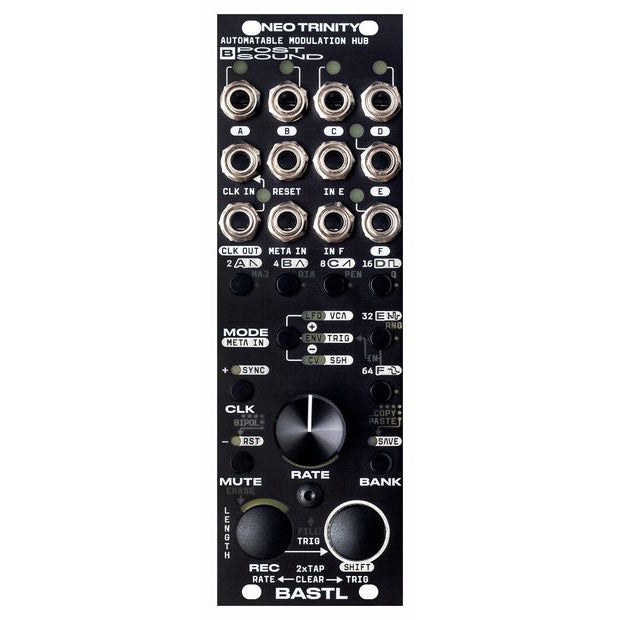

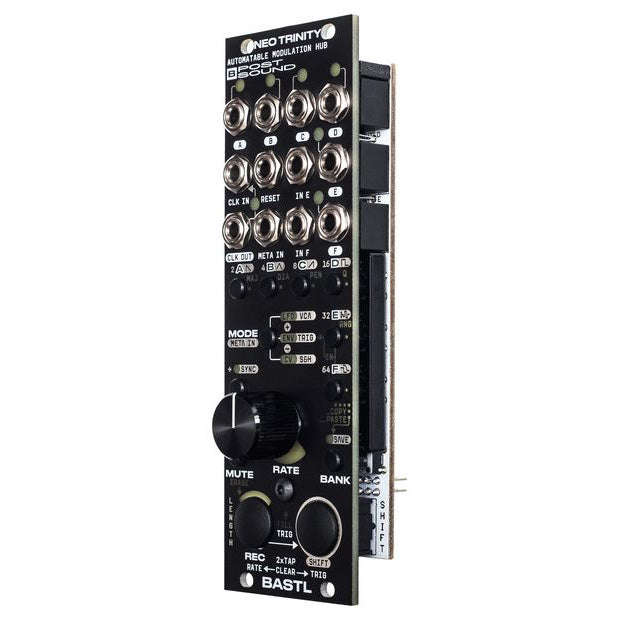

Eurorack Module
- 6-Channel modulation source
- Each channel can be configured as an LFO, envelope generator or CV recorder
- LFO mode with 8 waveforms, random voltages and switchable polarity (unipolar/bipolar)
- Envelope-Modus with 4 selectable forms (Decay Envelope, Variable Shape Envelope, Attack Envelope, Pulse)
- CV mode for creating pitch and gate sequences, internal quantiser with 8 scales, switchable polarity (unipolar/bipolar)
- Rate button and trigger button can be automated for each channel
- All channels can be synchronised to internal and external clock (incl. clock divider/multiplier)
- 6 CV/Gate outputs
- Clock input/output and reset input
- Assignable Meta CV input and CV inputs for channels E & F
- Power consumption: 100mA (+12V) / 35mA (-12V)
- Width: 8 U
- Depth: 24 mm
