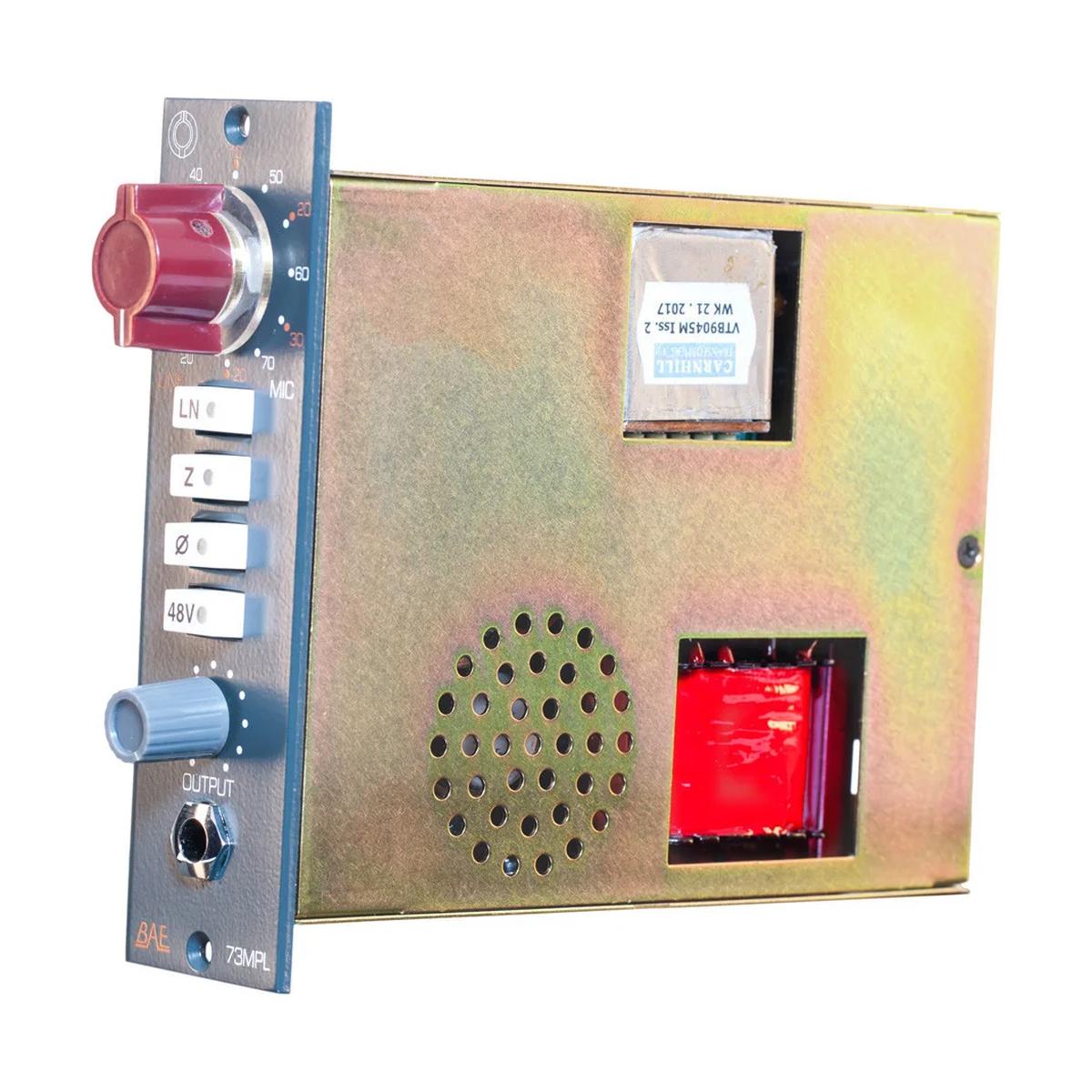

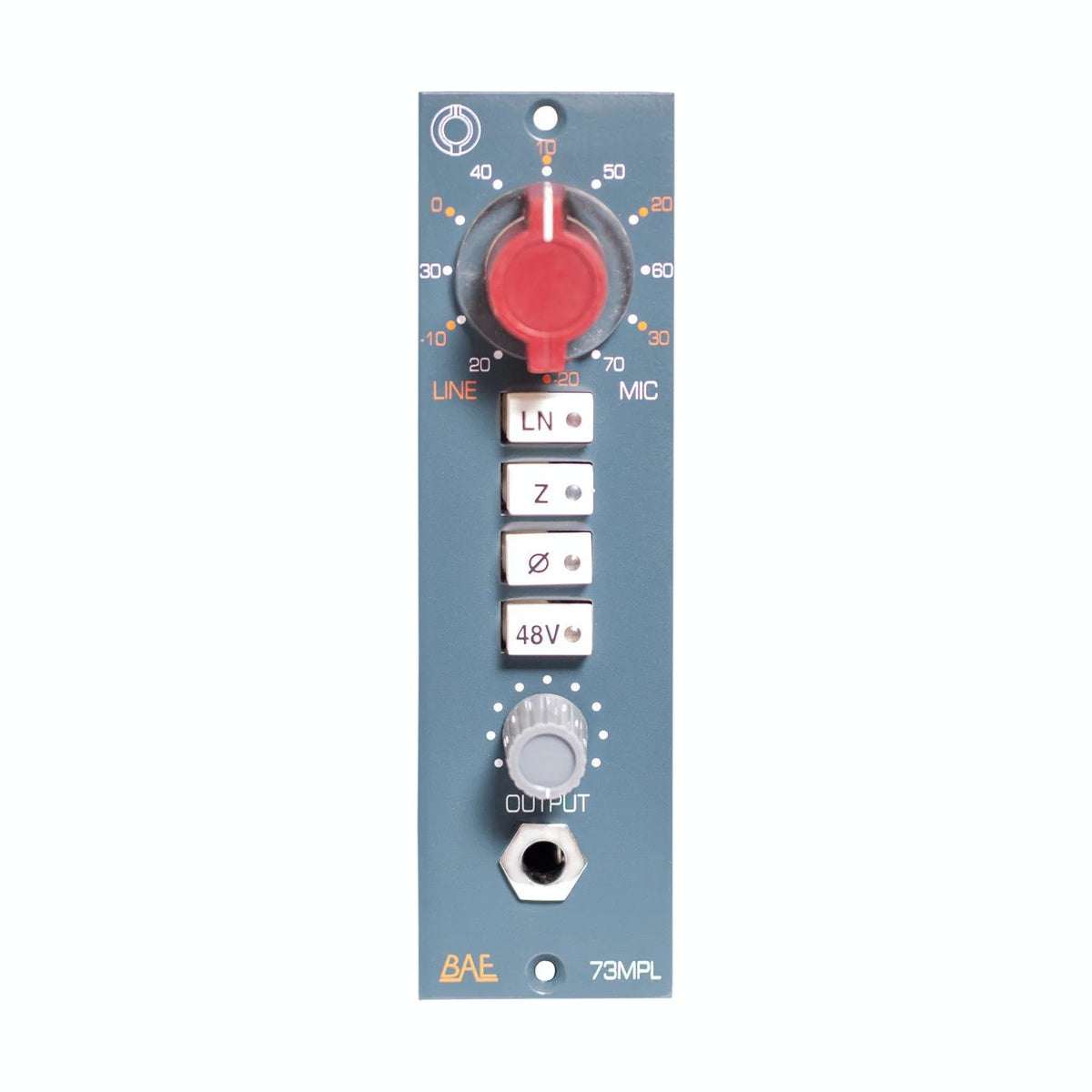

BAE 1073MPL – single-channel 500 Series mic preamp, 1073MP version inspired by classic Neve 1073. Delivers characteristic Class A sound with harmonically rich lows, resonant highs, and focused mids. Features Carnhill St Ives transformers, impedance switch (300/1200 Ohm), Hi-Z DI, +48V phantom, and phase reverse. Gain up to 71 dB, ideal for vocals, guitars, and synths. Hand-wired with Canford wire and modular design.
The module excels in authentic vintage tone, low noise, and versatility in 500 Series format.
MAIN FEATURES
- Class A, transformer-coupled design with Carnhill transformers
- Input impedance selector (300/1200 Ohm)
- High-impedance DI for guitar/synth
- +48V phantom and reverse polarity
- Line level capability for line sources
- Hand-wired with Canford wire and modular PCB
- Original Marconi knobs for precision
- Compatible with 500 Series racks
TECHNICAL SPECIFICATIONS
- Channels: 1 (mic/line/DI)
- Gain: Up to 71 dB
- Input Impedance: Switchable 300/1200 Ohm
- Frequency Response: 20 Hz–20 kHz
- Connections: XLR mic in, 1/4" DI, XLR out (via 500 slot)
- Power: +16V/-16V from 500 rack
- Dimensions: Standard 500 Series module
- Weight: Approx. 0.5 kg
