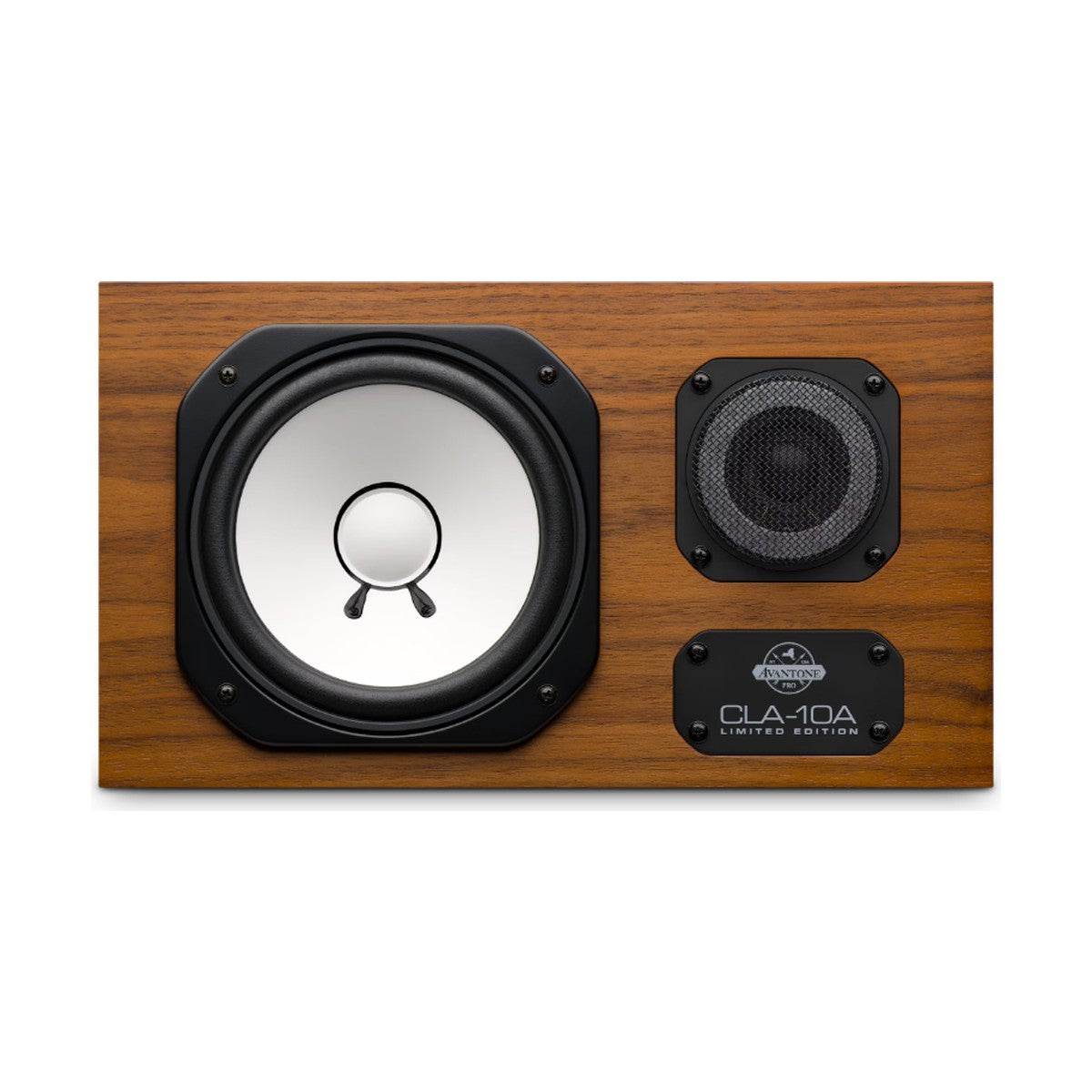

Avantone CLA-10A Limited Edition – limited edition active studio monitors, faithful recreation of iconic Yamaha NS-10M, developed with Chris Lord-Alge. Features white cone drivers (7" woofer, 1.38" tweeter), mahogany veneer cabinet, 200W Class AB amp, and VTPC control for tweeter response simulation. Ideal for precise mixing, revealing mix flaws. Compact, with toroidal linear power supply for authentic tone.
MAIN FEATURES
- 2-way active monitors with white cones (exact original replicas)
- 200W Class AB amp (120W LF, 60W HF), THD 0.005% at low power
- VTPC knob to adjust tweeter (from M to Studio model)
- Mahogany veneer cabinet (black, limited edition)
- Toroidal linear PSU for classic warmth
- 60 Hz – 20 kHz response, up to 104 dB SPL

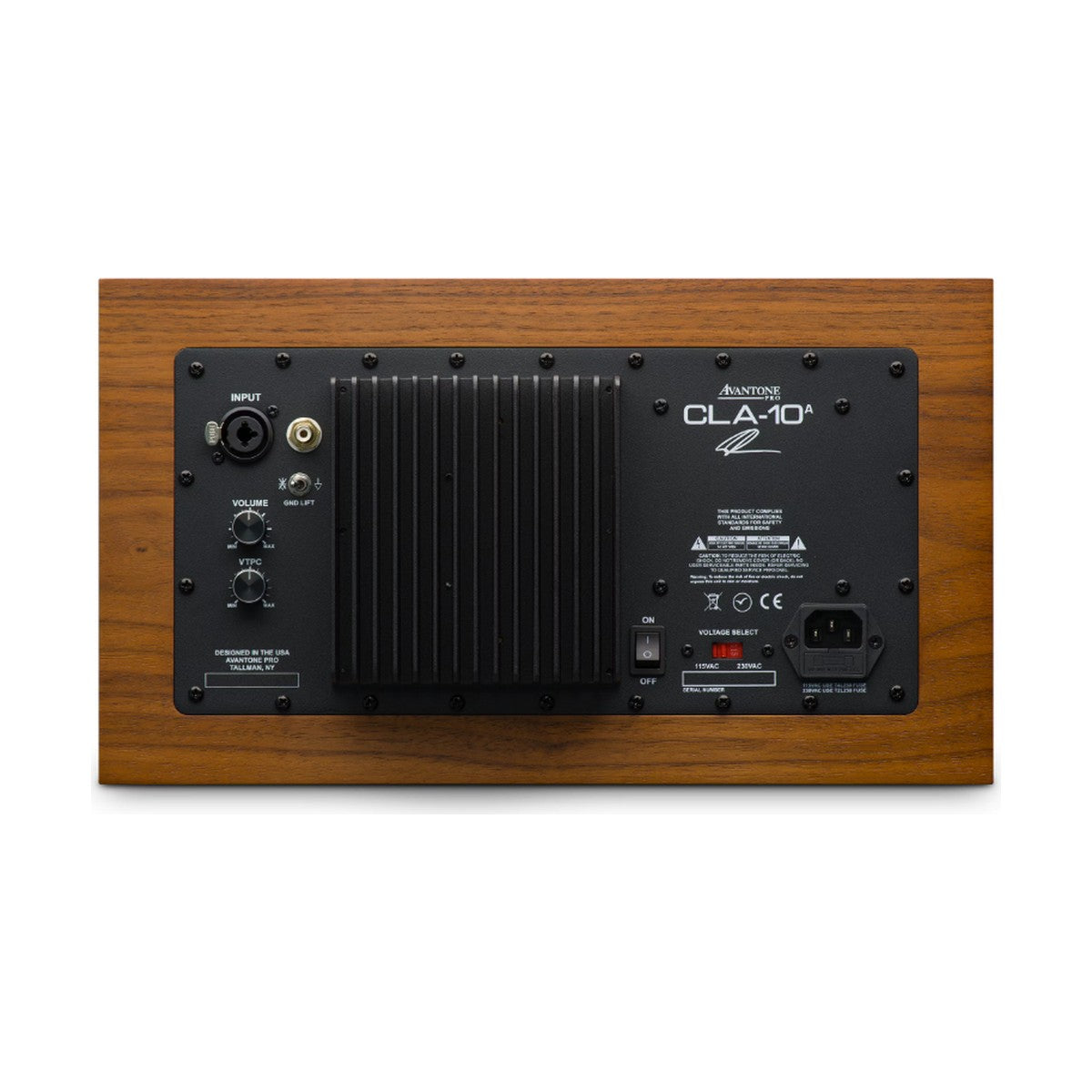

- Connections: XLR/TRS inputs, AC power
- Replacement parts available for original NS-10M
TECHNICAL SPECIFICATIONS
- Drivers: 7" paper cone woofer, 1.38" soft dome tweeter
- Amplifier: 200W Class AB, toroidal linear PSU
- Frequency Response: 60 Hz – 20 kHz
- Max SPL: 104 dB @ 1 m
- THD: 0.005% (low power), 0.1% (full load)
- Dimensions (WxHxD): 330 x 195 x 232 mm (pair)
- Weight: 10.2 kg (pair)
- Power: 110-240V AC
