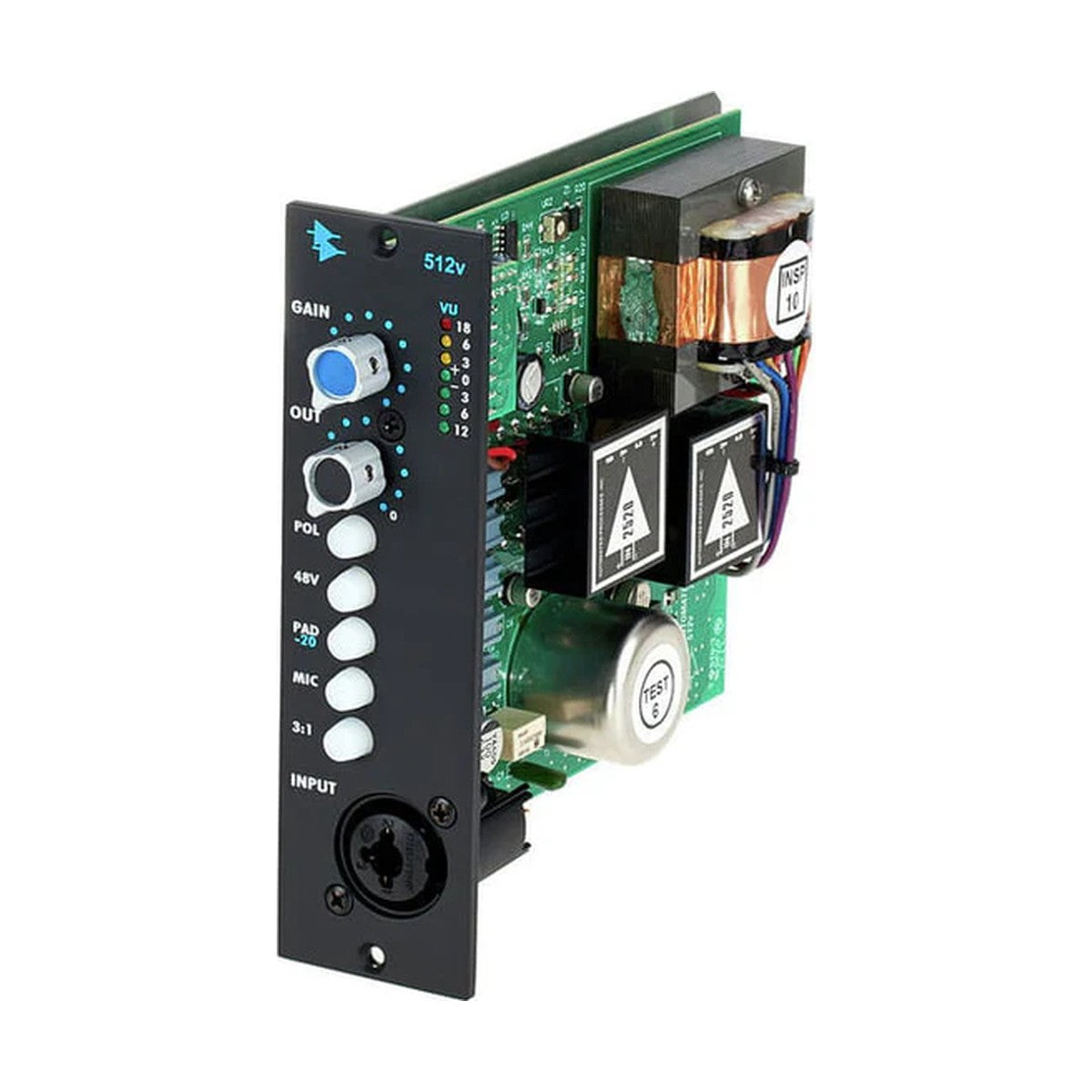

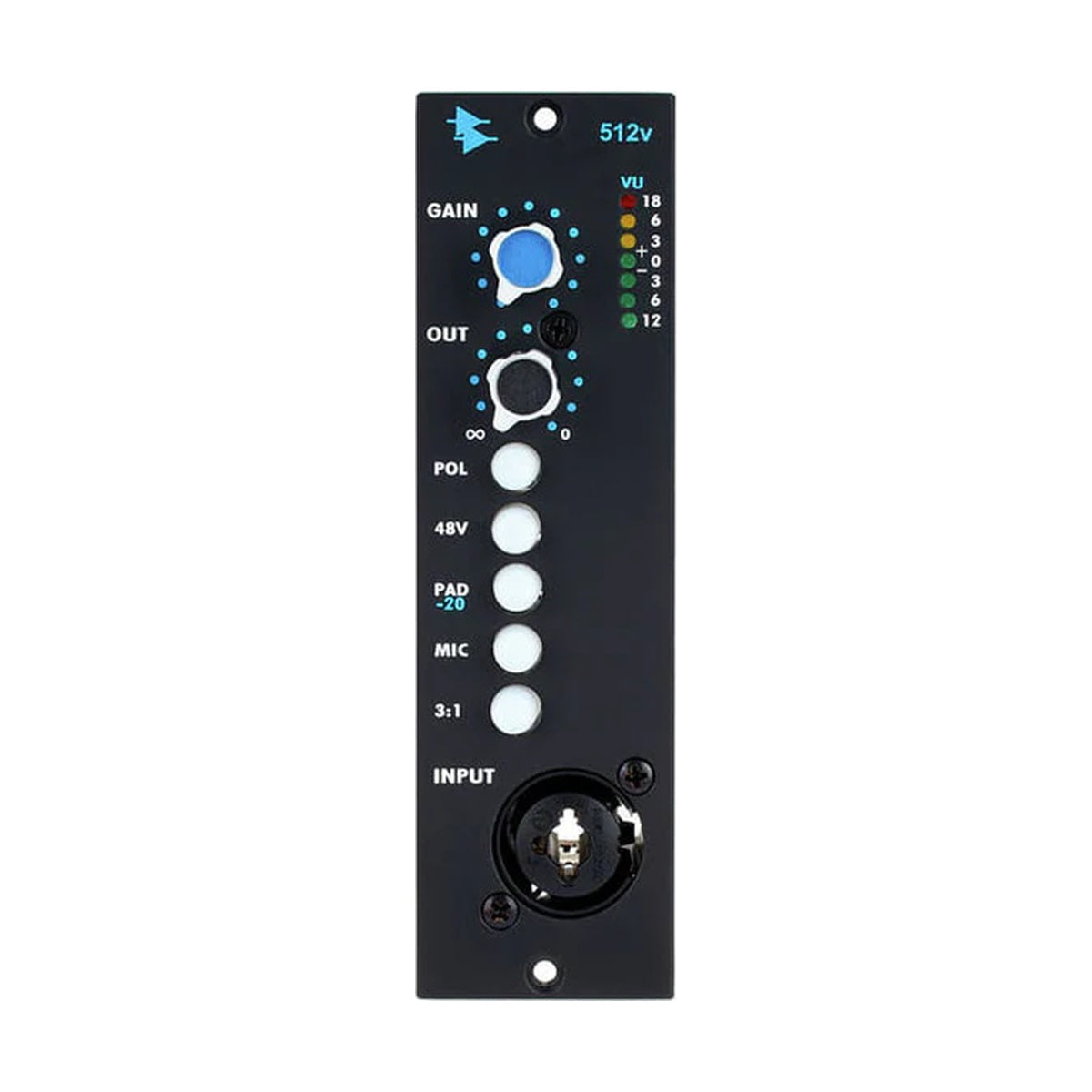

API Audio 512v – 500 Series discrete mic/line/instrument preamp with 65dB gain, low noise (-129 EIN), and API's punchy sound via 2520 op-amp and transformers.
Variable output control, 3:1 transformer tap, front combo XLR/1/4" input, rear mic access, 48V phantom, polarity switch, -20dB pad, mic/line/instrument selector. Ideal for studios with modular racks.
MAIN FEATURES
- 65dB mic gain, 45dB line/instrument
- 3:1 output transformer tap
- Variable output level
- Front/rear inputs
- 48V phantom, pad, polarity
- LED VU meter
- 5-year warranty
TECHNICAL SPECIFICATIONS
- Inputs: Combo XLR/1/4" mic/line/instrument
- Outputs: XLR balanced
- Gain: 65dB mic, 45dB line/instrument
- EIN: -129dBu
- Power: 500 Series slot
- Dimensions: Single-slot module
- Weight: Not specified
- Included: 512v module
- Product Code: 512v
