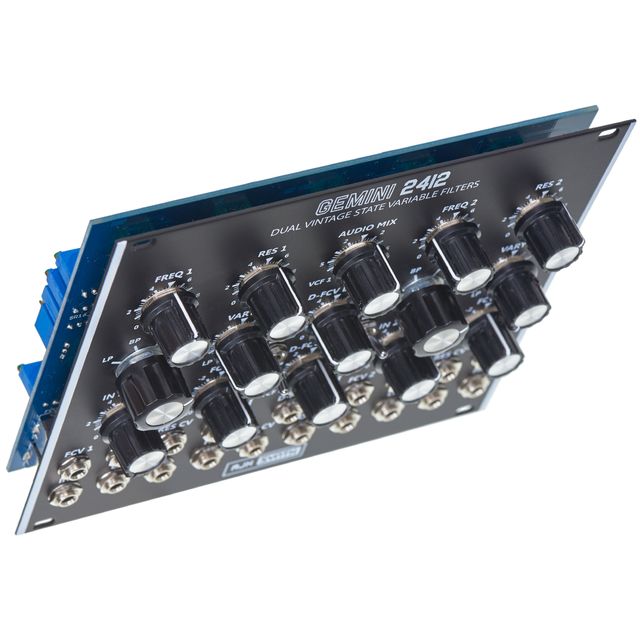

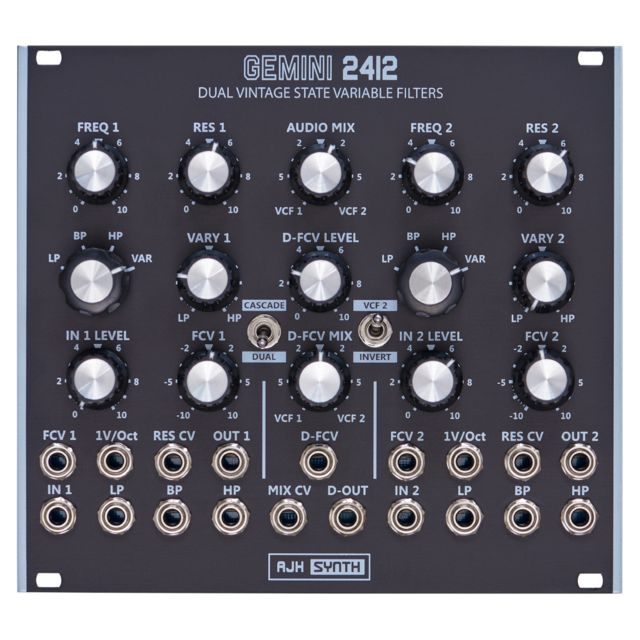

AJH Gemini 2412 Dual SVF black

AJH Gemini 2412 Dual SVF

module is a filter module for Eurorack format modular synthesisers. The module has two identical channels based on the classic SEM filter. The filter characteristics can be mixed using a knob, and there are separate outputs for low and high passages, bands and high passages. In addition to the inputs and outputs of the individual filters, the module has a common frequency CV input for both filters, as well as voltage-controlled crossover between the two filters when a common output is used. Parallel and series operation can be selected via a switch, and the signal from filter 2 can also be inverted via a switch. This achieves a large number of filter functions.

• Filter module based on an SEM filter
• Two identical filter units
• Rotary knob for mixing filter characteristics
• Separate outputs for low-pass, mid-pass and high-pass
• Common-frequency CV input
• Voltage-controlled cross-fading between filters
• Parallel and series operation possible

• Manufacturer:AJH Synth
• TE / HP:28
• Depth (mm):24
• + 12 V (mA):50
• - 12 V (mA):45
• Lowpass:Yes
• Bandpass:Yes
• Highpass:Yes
• Multi-mode:Yes
• Notch:Yes
