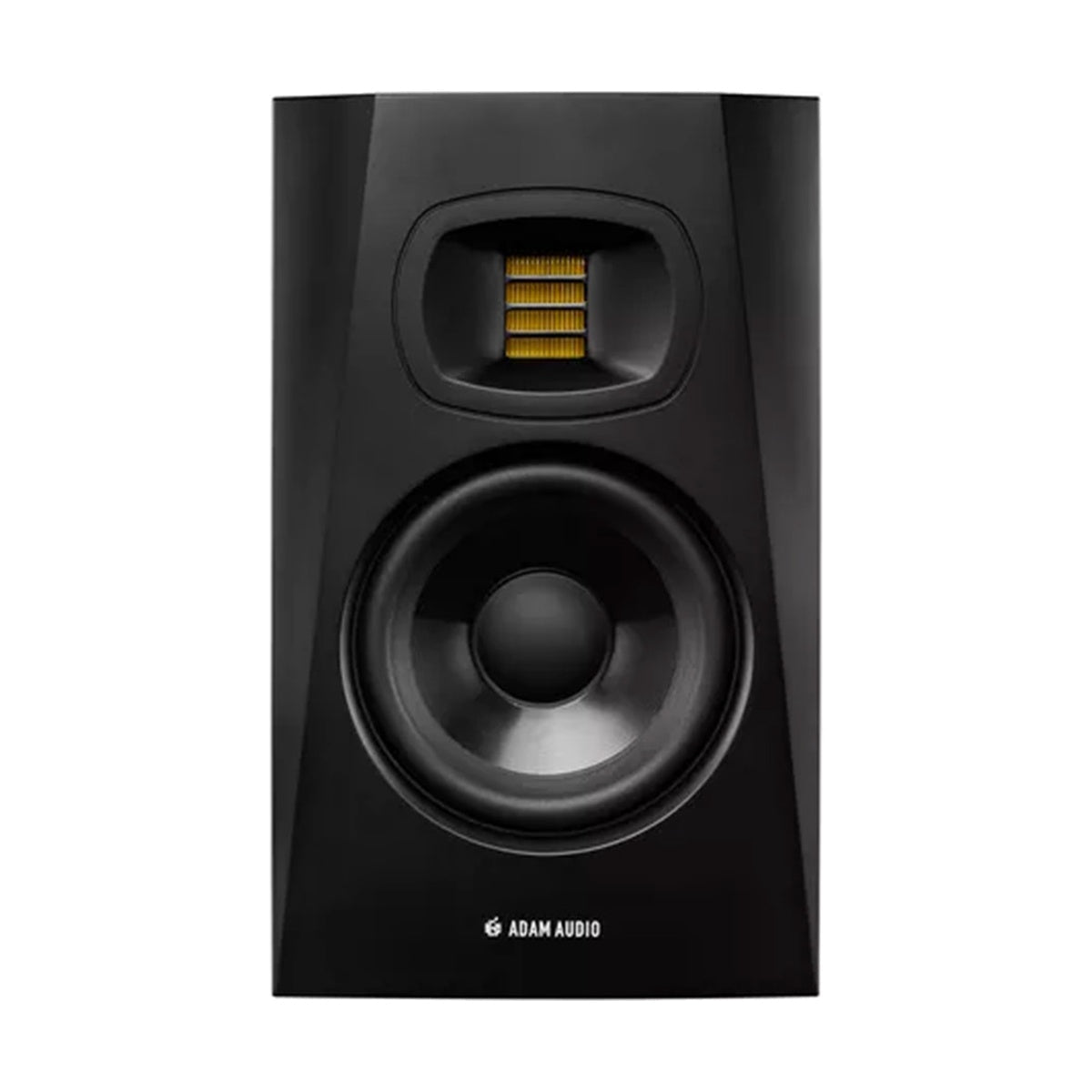

ADAM Audio T5V 2-Way Active Midfield Monitor – Featuring a 5″ Multi-Layer Mineral woofer extending bass to 45 Hz and a 1.9″ U-ART tweeter (up to 25 kHz) on an HPS waveguide, the T5V brings high-res performance to small control rooms on a budget.

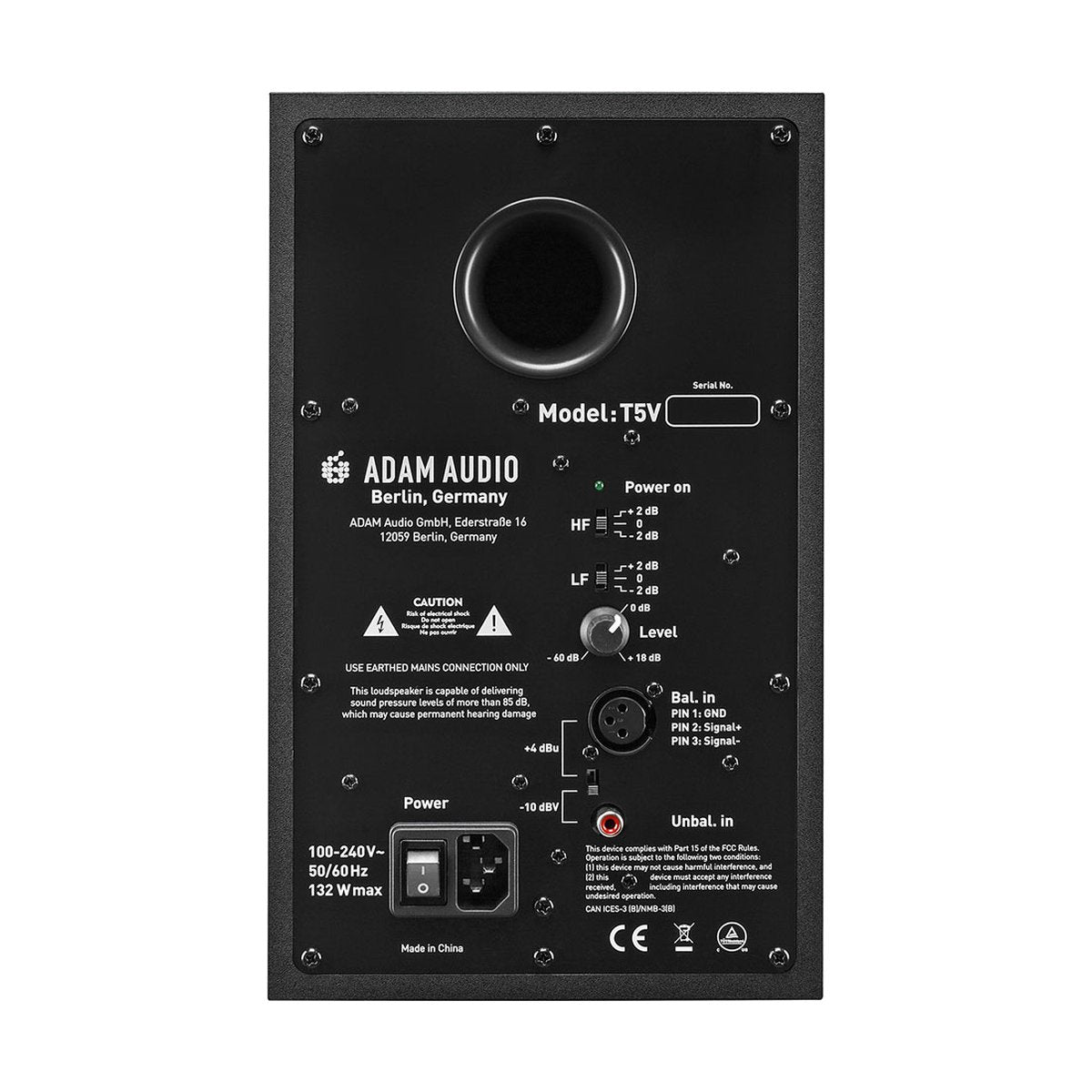

The rear-ported, compact cabinet houses DSP-controlled signal processing plus a 50 W Class-D LF amp and 20 W Class-D HF amp. Rear XLR and RCA inputs, ±2 dB LF/HF trims, and intelligent auto-standby make it a versatile desktop or midfield monitor. Delivers up to 106 dB SPL (pair peak). 5-year warranty.
KEY FEATURES
- 5″ MLM woofer (45 Hz extension) + 1.9″ U-ART tweeter
- 50 W LF + 20 W HF Class-D amplification
- HPS waveguide for uniform high-frequency dispersion
- Rear bass-reflex port in a compact angled cabinet
- Inputs: 1× XLR balanced, 1× RCA unbalanced
- LF/HF trim ±2 dB
- Built-in DSP for crossover and EQ
- Auto-standby (switchable) after 15 min silence
- Max SPL pair peak: 106 dB
- 5-year warranty (2 yr parts/labor +3 yr registration)
TECHNICAL SPECIFICATIONS
- Frequency Response: 45 Hz–25 kHz (–3 dB)
- Max SPL (pair peak): 106 dB
- Drivers: 1× 5″ MLM woofer; 1× 1.9″ U-ART tweeter
- Amplifiers: 50 W LF Class-D; 20 W HF Class-D
- Waveguide: HPS High-frequency Propagation System
- Inputs: 1× XLR balanced; 1× RCA unbalanced
- Trim: LF/HF ±2 dB
- Cabinet: Angled MDF with rear port
- Dimensions (HxWxD): 230 × 160 × 200 mm
- Weight: 5.5 kg each
- Power: 100–240 VAC; auto-standby
