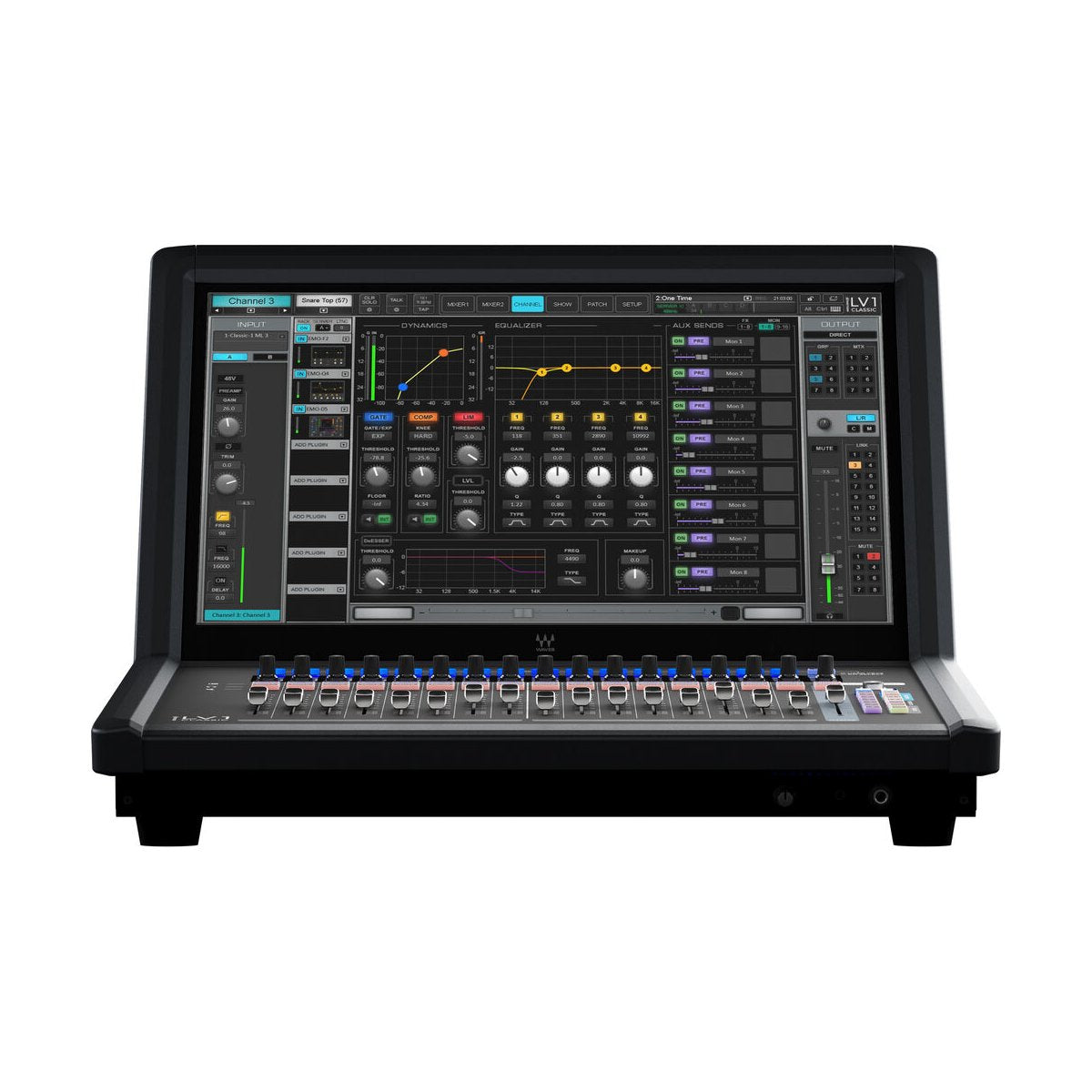

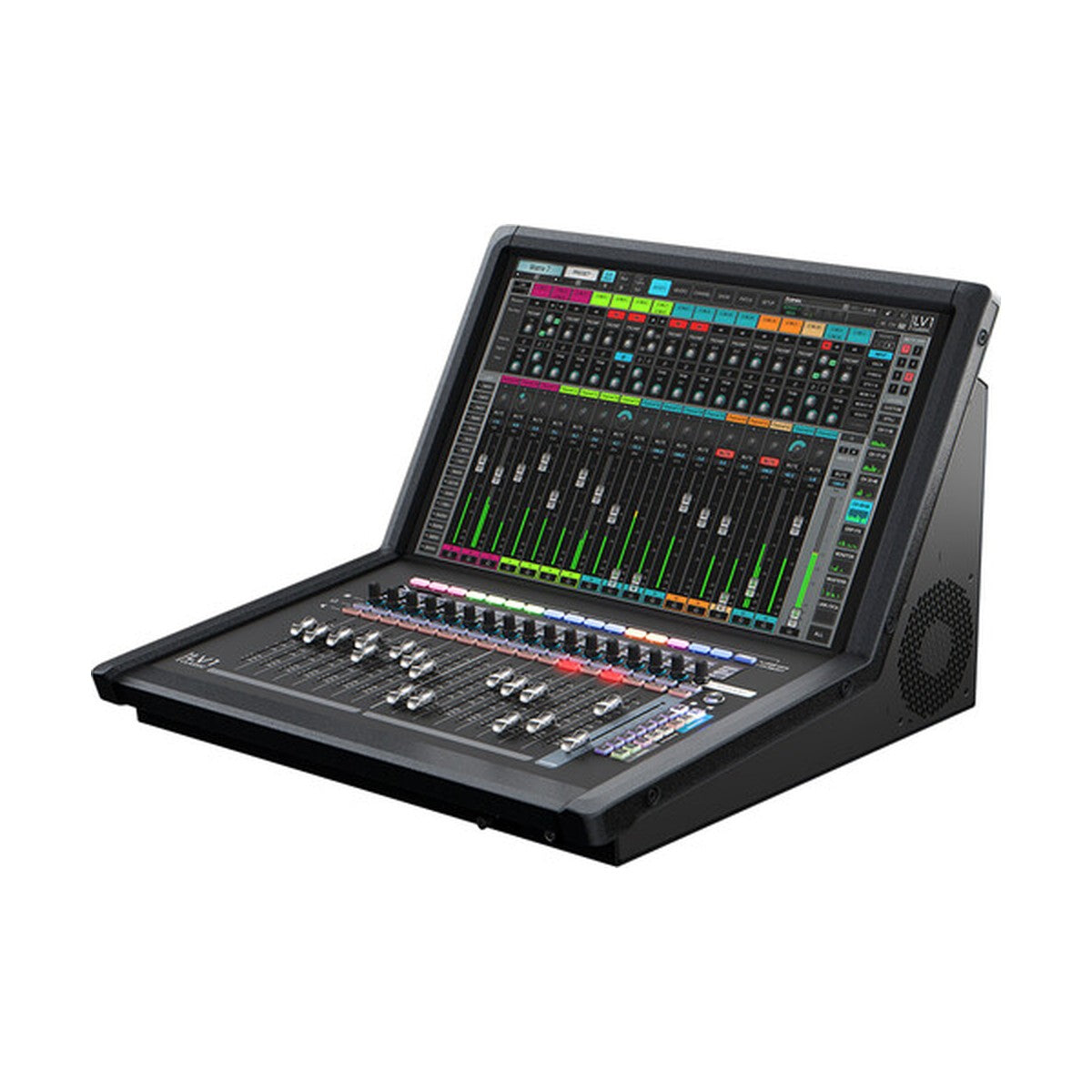

Waves eMotion LV1 Classic is a complete standalone live mixing console featuring 64 mono/stereo channels (128 inputs) and 44 mono/stereo buses, powered by the award-winning LV1 engine with 44.1-96 kHz sample rates and ultra-low 0.8 ms latency. Equipped with 16 inputs featuring proprietary Waves Signature Preamps and 12 line outputs, the console delivers full functionality in a compact 17-fader design with a 21.5" HD touchscreen. The 32-bit floating point engine provides unlimited headroom and pristine audio clarity, while 16 built-in Waves processors (F6 Dynamic EQ, Tune Real-Time, eMo D5/Q4/F4, X-FDBK, R-Comp, Magma Tube Channel Strip, and more) eliminate the need for external DSP servers.
The intuitive interface features 17 Alps 100mm motorized faders, 17 encoders with mini-LCD displays, physical Select/Mute/Solo buttons per channel, and 16 mix layers (Layers) for analog-style workflow. LV1 Classic stands out with 8 mute groups, 16 linked DCA with Spill function, advanced Matrix routing, and full SoundGrid integration for IONIC 16/24 stageboxes. The console includes remote control apps MyFOH (FOH) and MyMon (monitors), dual redundant power supplies, and fail-safe connectivity for touring reliability.
KEY FEATURES
- 64 mono/stereo channels (128 inputs), 44 mono/stereo buses
- 32-bit floating point engine, 0.8 ms latency (44.1-96 kHz)
- 16 Waves Signature Preamps + 12 onboard line outputs
- 17x 100mm Alps motorized faders + 21.5" multi-touchscreen
- 16 built-in Waves processors (no external DSP required)
- 8 mute groups, 16 DCA with Spill, 16 mix layers

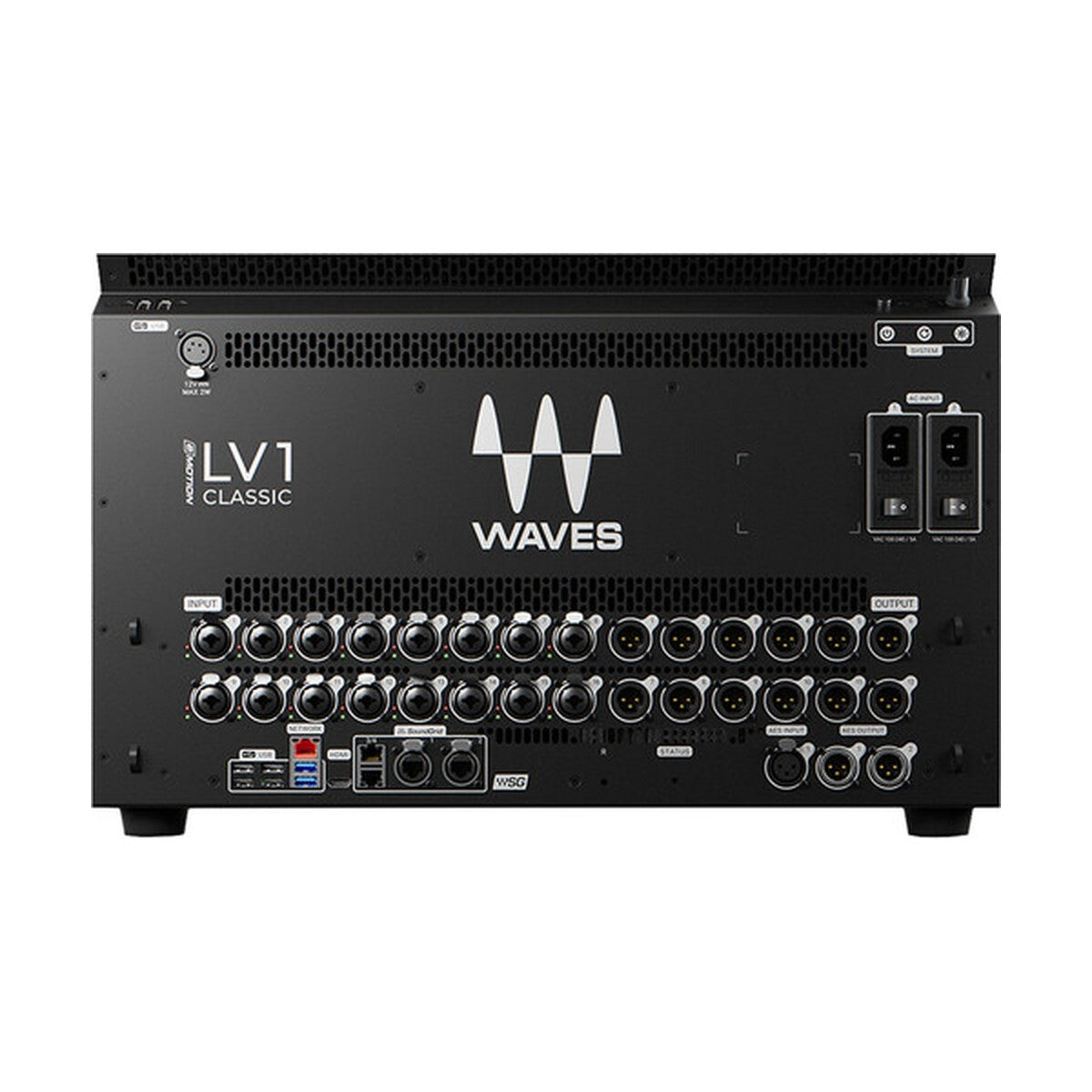

- 4x SoundGrid (2x Ethercon, 2x RJ45), AES3 I/O, HDMI
- Dual power supplies, 17.2 kg weight, 559x401x561 mm dimensions
TECHNICAL SPECIFICATIONS
- Channels: 64 mono/stereo (expandable to 80/160)
- Buses: 44 mono/stereo (expandable to 52)
- Engine: 32-bit Float, 0.8 ms latency
- AD Converters: Waves Signature Preamps (16x)
- Display: 21.5" HD Multi-Touch
- Faders: 17x 100mm Alps Motorized
- Processors: 16x Built-in Waves (Tune RT, F6, eMo Suite, etc.)
- I/O: 16 Mic/Line In, 12 Line Out, 1x AES3 In, 2x AES3 Out
