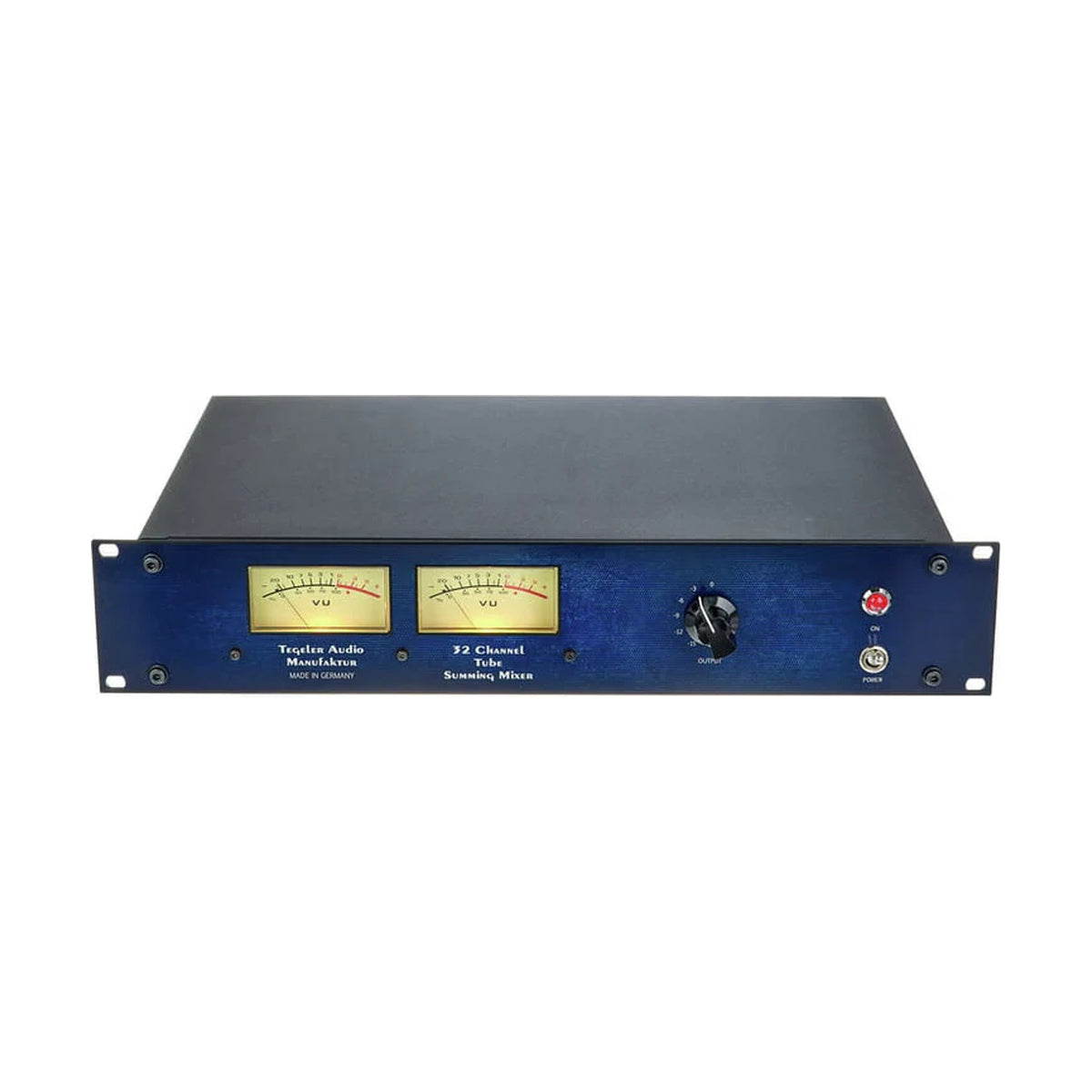

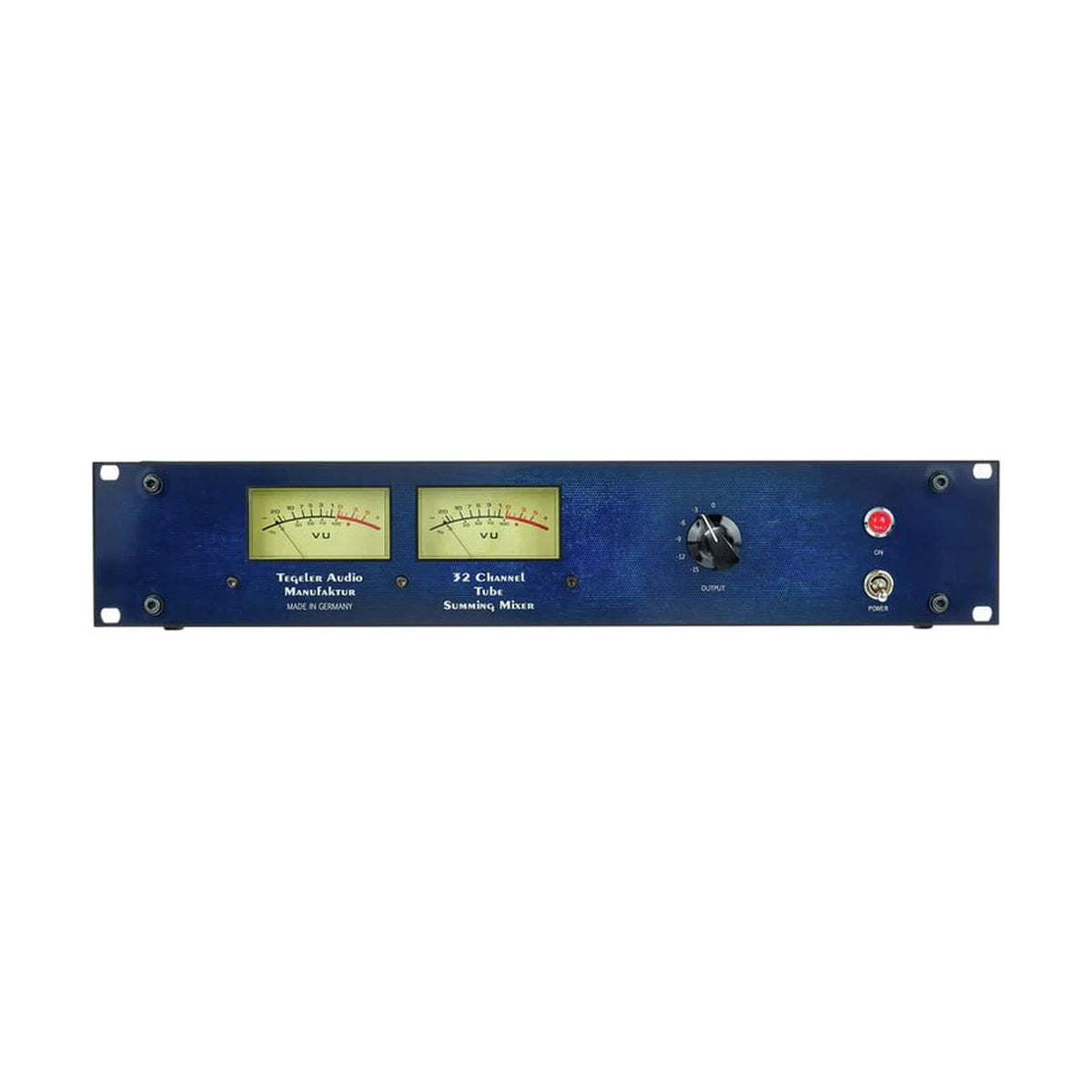

Tegeler Audio Manufaktur Tube Summing Mixer – high-end analog summing mixer blending vintage console warmth with digital workflow convenience. Ideal for professional studios seeking total recall and analog glue without sacrificing modern efficiency. Features 2x20 channels (40 total) for complex mixes, with cascading capability for surround or expanded setups. Stepped output attenuators ensure precise, repeatable mixes.
Each channel employs discrete Class-A transistor buffers and ECC81/82 tubes for rich harmonics and saturation. Switchable input modes (0dB/-12dB) prevent clipping, while transformer-balanced outputs deliver low-distortion signal. No EQ or dynamics per channel—focuses on pure summing with optional tube saturation. Compatible with DAW stems for hybrid analog-digital production.
Handcrafted in Germany with premium components, its robust chassis suits fixed installations. Enhances stereo imaging and depth, elevating ITB mixes to console quality.
MAIN FEATURES
- 2x20 channels (40 mono or 20 stereo) with discrete Class-A buffers
- Twin ECC81/82 tube stages for harmonic saturation and warmth
- Stepped attenuators on master outputs for exact recall
- Switchable input sensitivity (0dB/-12dB) per channel
- Cascadable design for multi-unit surround mixing
- Transformer-balanced XLR outputs (main L/R)
- All-analog signal path for transparent, musical summing
- Hand-wired in Germany with audiophile components
- No internal PSU noise—external transformer supply
- Compatible with DAW hybrid workflows
TECHNICAL SPECIFICATIONS

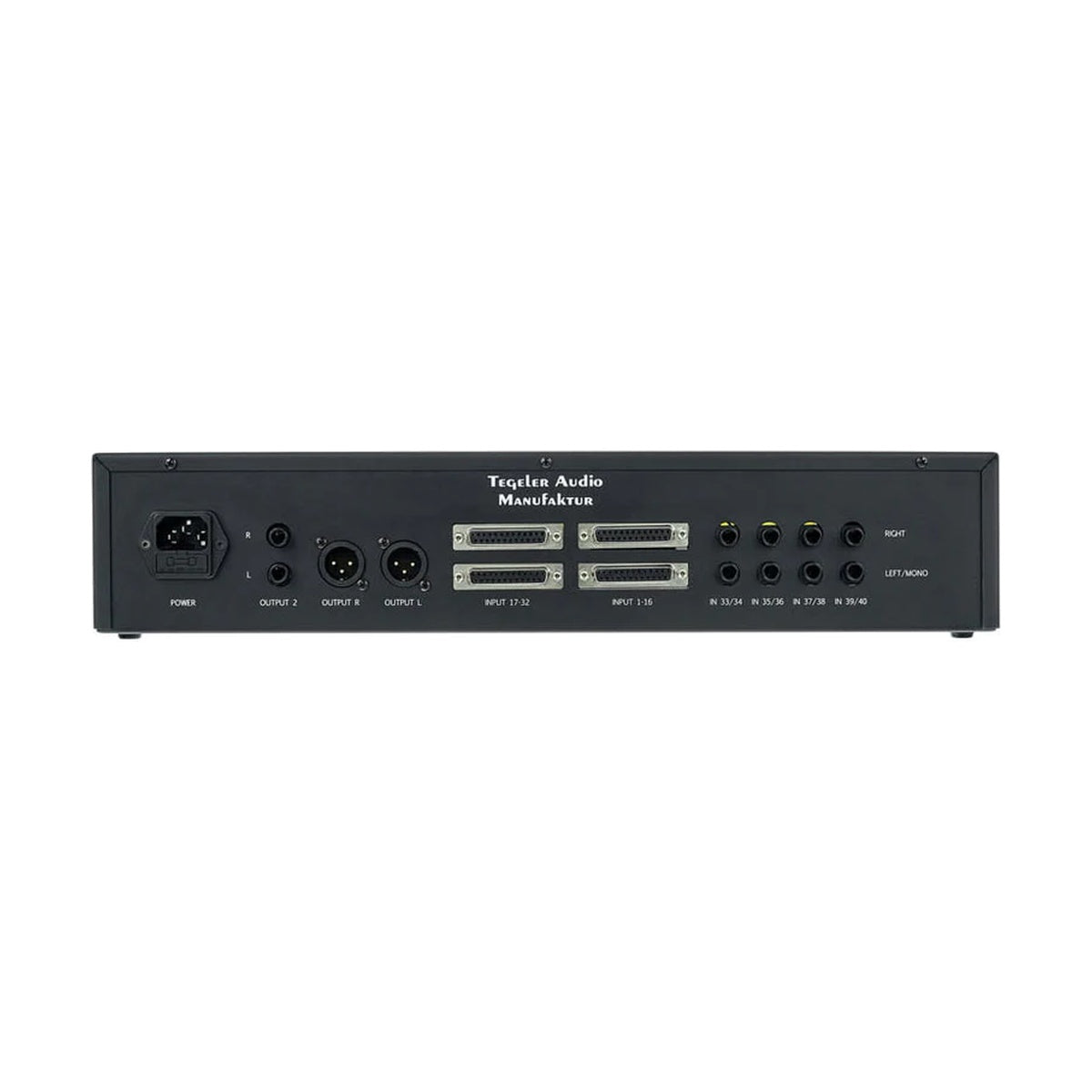

- Inputs: 40 x balanced XLR (D-sub connectors for 20-channel banks)
- Outputs: 2 x balanced XLR main L/R (transformer-coupled)
- Channels: 2 banks of 20, mono summing to stereo
- Tubes: 2 x ECC81, 2 x ECC82 per unit
- Frequency Response: 20Hz-100kHz ±0.5dB
- THD + Noise: <0.05% at 0dBu
- Max Input Level: +30dBu (0dB mode)
- Max Output Level: +27dBu
- Power Supply: External 230V AC toroidal transformer
- Dimensions (W x H x D): 482 x 88 x 300 mm (19" rackmount)
- Weight: 7 kg (15.4 lbs)
- Included: Tube Summing Mixer, external PSU, manual
- Product Code: TSM
