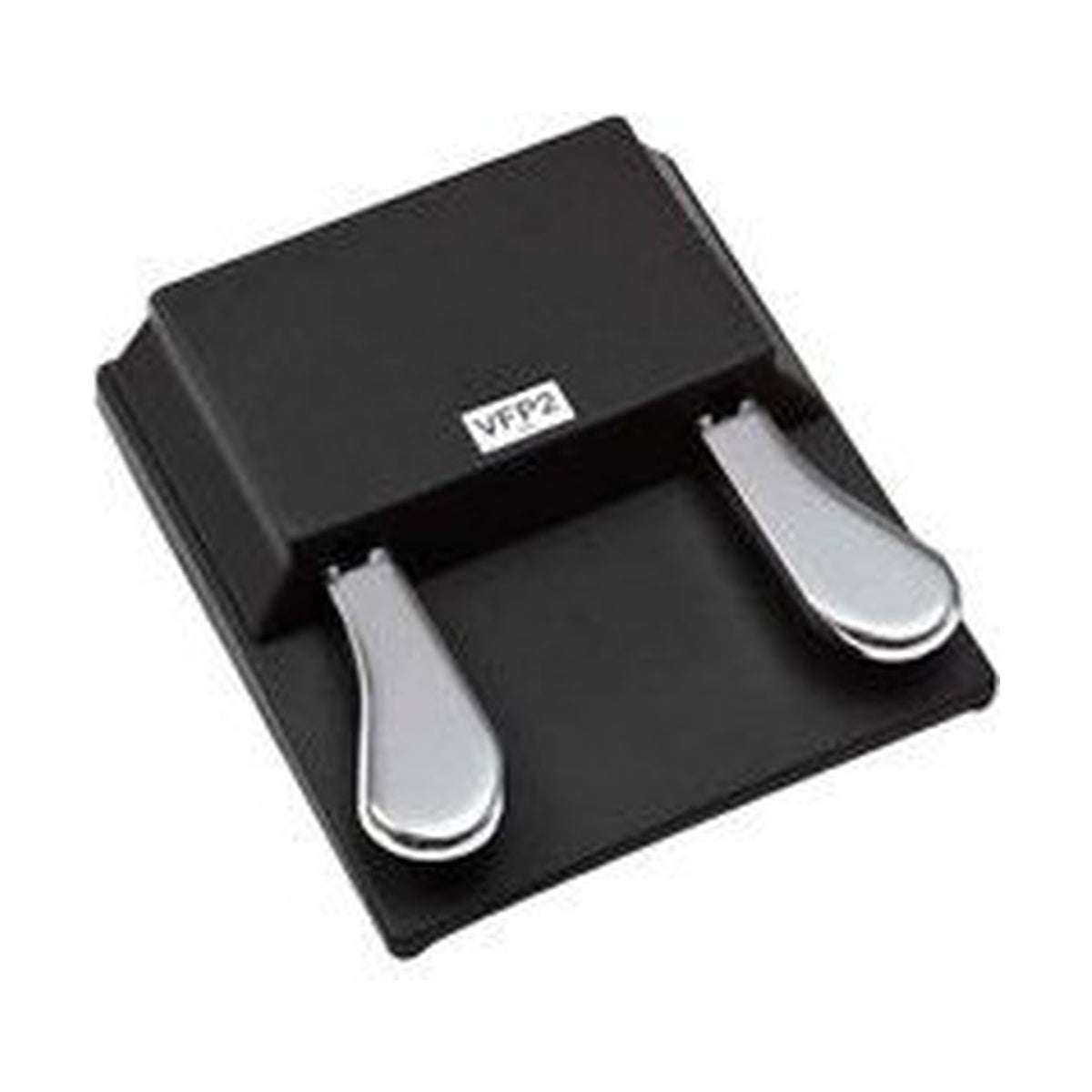

Studiologic VFP 2/10b is a dual piano-style sustain pedal in the accessories and cables category, manufactured in Italy by Fatar. Two independent pedals in a single solid housing, normally open contact, with a stereo TRS 6.35 mm output – one cable into one TRS socket on the keyboard. Designed for Studiologic SL and Numa series keyboards, and compatible with the majority of digital pianos and synthesizers that accept normally open polarity.
Two Pedals – One Cable
The VFP 2/10b houses two independent switches in a single enclosure: the left pedal performs standard sustain, the right acts as a secondary switch (sostenuto, soft, or an assignable function). Both signals travel over a single TRS stereo cable (6.35 mm jack, 2 m length) to a single TRS input on the keyboard – no splitter required. This configuration is native to Studiologic SL88 GT, SL88, SL73, SL88 Grand, SL88 Studio, SL73 Studio, Numa X Piano, and Numa X Piano GT keyboards, which auto-detect pedal polarity on restart. Solid rubberised housing with two chrome-plated levers and anti-slip rubber feet. The /10b designation indicates normally open contact – the standard polarity for the vast majority of keyboards and synthesizers.
KEY FEATURES
- Dual piano-style sustain pedal – 2 independent switches
- Normally open contact – /10b variant
- Connector: 1 × TRS stereo jack 6.35 mm (both pedals via single cable)
- Cable length: 2 m
- Solid rubberised housing with chrome-plated levers
- Anti-slip rubber feet
- Made in Italy by Fatar
- Compatible with Studiologic SL and Numa series keyboards and most synthesizers and digital pianos supporting normally open mode
TECHNICAL SPECIFICATIONS
- Type: dual sustain pedal / switch, normally open contact
- Output connector: 1 × TRS stereo jack 6.35 mm (1/4")
- Cable length: 2 m (6.56 ft)
- Width: 19.5 cm (7.7")
- Depth: 22 cm (6.7")
- Height: 5.5 cm (2.2")
- Weight: 0.9 kg (2 lbs)
