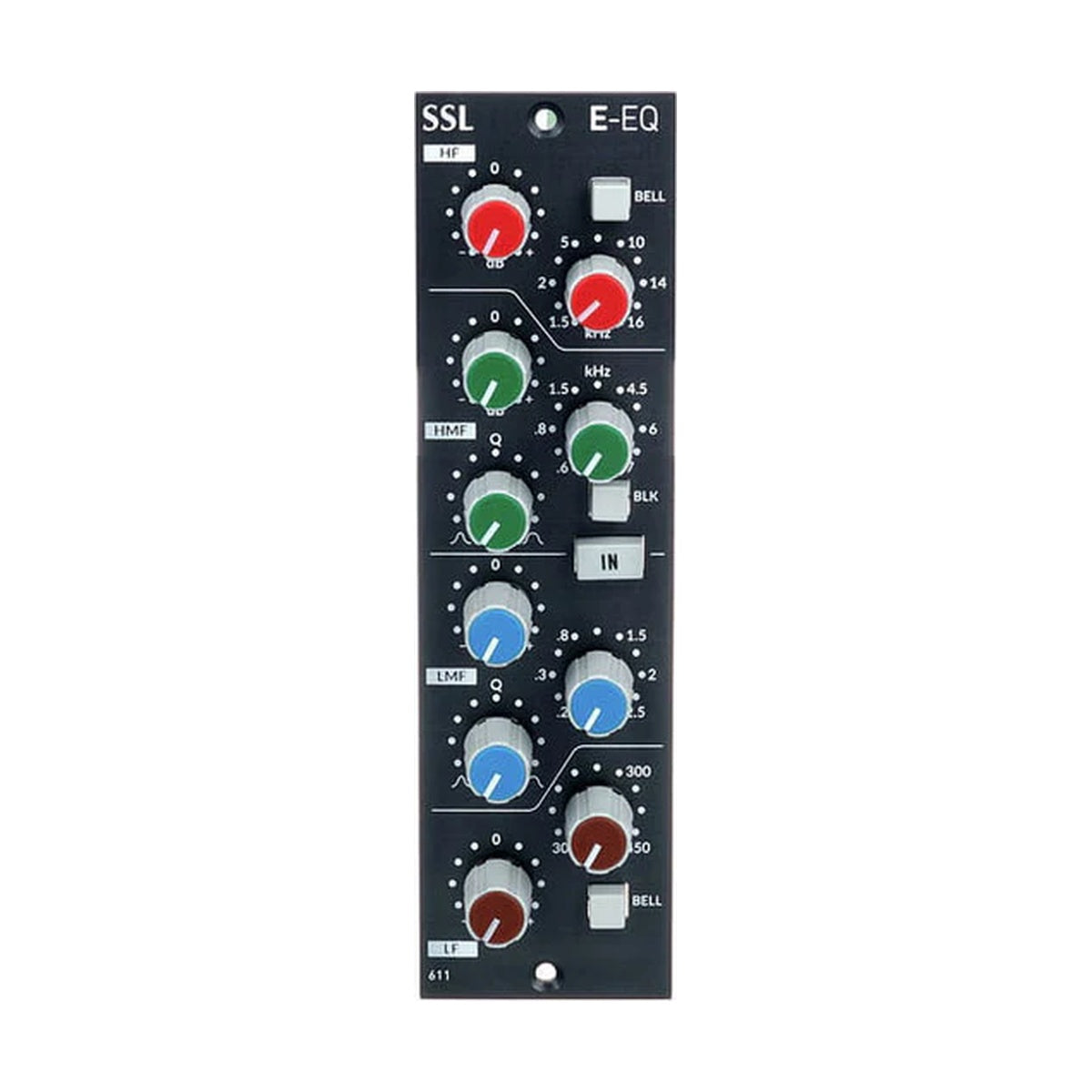

SSL 500 Series E-EQ Module – 4-band parametric equalizer derived from SL 4000 E Series console. Brown knob for musical curves, Black knob for tighter, precise EQ. Switchable bell/shelf on HF/LF, fully parametric HMF/LMF bands. Ideal for tracking/mixing in professional studios.
Single-slot 500 Series module with stepped controls for recall. Balanced I/O, high headroom, low noise for clean signal shaping.
MAIN FEATURES
- 4-band EQ: HF/LF (shelf/bell), HMF/LMF parametric
- Brown/Black knob modes for musical/precise EQ
- Stepped controls for recall
- High headroom, low noise
- Single-slot 500 Series format
TECHNICAL SPECIFICATIONS
- Bands: HF (1.5-16kHz), HMF (600Hz-7kHz), LMF (200Hz-2kHz), LF (30-450Hz)
- Gain: ±15dB per band
- Inputs/Outputs: Balanced via 500 Series rack
- Power: 500 Series slot
- Dimensions: Single-slot 500 module
- Weight: Not specified
- Included: E-EQ module
- Product Code: E-EQ
