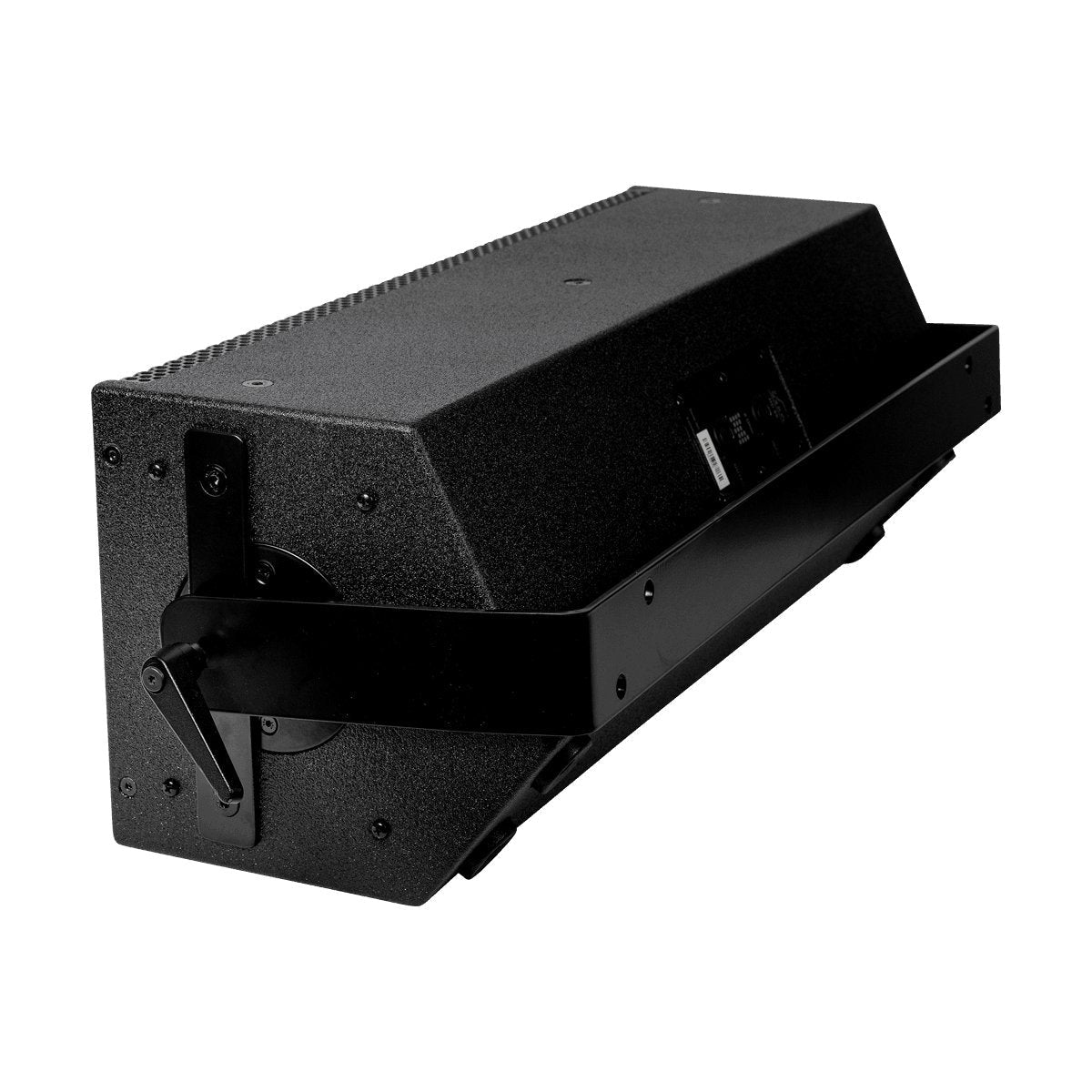

Solton WM 88 — a C-type wall mount for the HD 88 and T 28 A enclosures, allowing the column to be hung in either vertical or horizontal orientation.
Multi-angle enclosures like the HD 88 and T 28 A are built for front-fill, monitoring, or installed applications where mounting direction depends on room geometry rather than one fixed design assumption. WM 88 addresses that directly: the same bracket lets the cabinet hang vertically under a balcony or horizontally over a stage, with no need for two separate mounting kits.
One Bracket, Two Mounting Orientations
An installer choosing between a vertical or horizontal column setup usually has to order two different brackets or modify one on site. The C-type design in WM 88 removes that step: the enclosure attaches to the same mounting point regardless of orientation, which simplifies spares inventory and speeds up install time on front-fills or under-balcony mounts.Secure Mounting Across Multi-Angle Operation
Multi-angle enclosures such as the HD 88 use several mounting angles to adapt to different applications, which calls for a bracket that holds stable geometry regardless of the angle selected. WM 88 transfers the load into the wall through a rigid C-plate, giving a repeatable, secure mount whichever of the available orientations the enclosure is set up in.KEY FEATURES
- C-type bracket enabling vertical or horizontal mounting of the same enclosure
- Built for the multi-angle HD 88 and T 28 A enclosures
- Rigid construction transferring load directly into the wall
- One mounting kit instead of two separate orientation-specific solutions
- Speeds up installation for front-fill and under-balcony applications
- Stable mounting geometry regardless of the enclosure's operating angle
TECHNICAL SPECIFICATIONS
- Type: C-type wall mounting bracket
- Mounting orientation: vertical or horizontal
- Material: steel, corrosion-resistant finish
- Compatibility: HD 88 and T 28 A enclosures
- Installation: fixed to the wall, enclosure bolted to the C-plate
- Application: permanent installation, front-fill, monitoring, and under-balcony mounting
