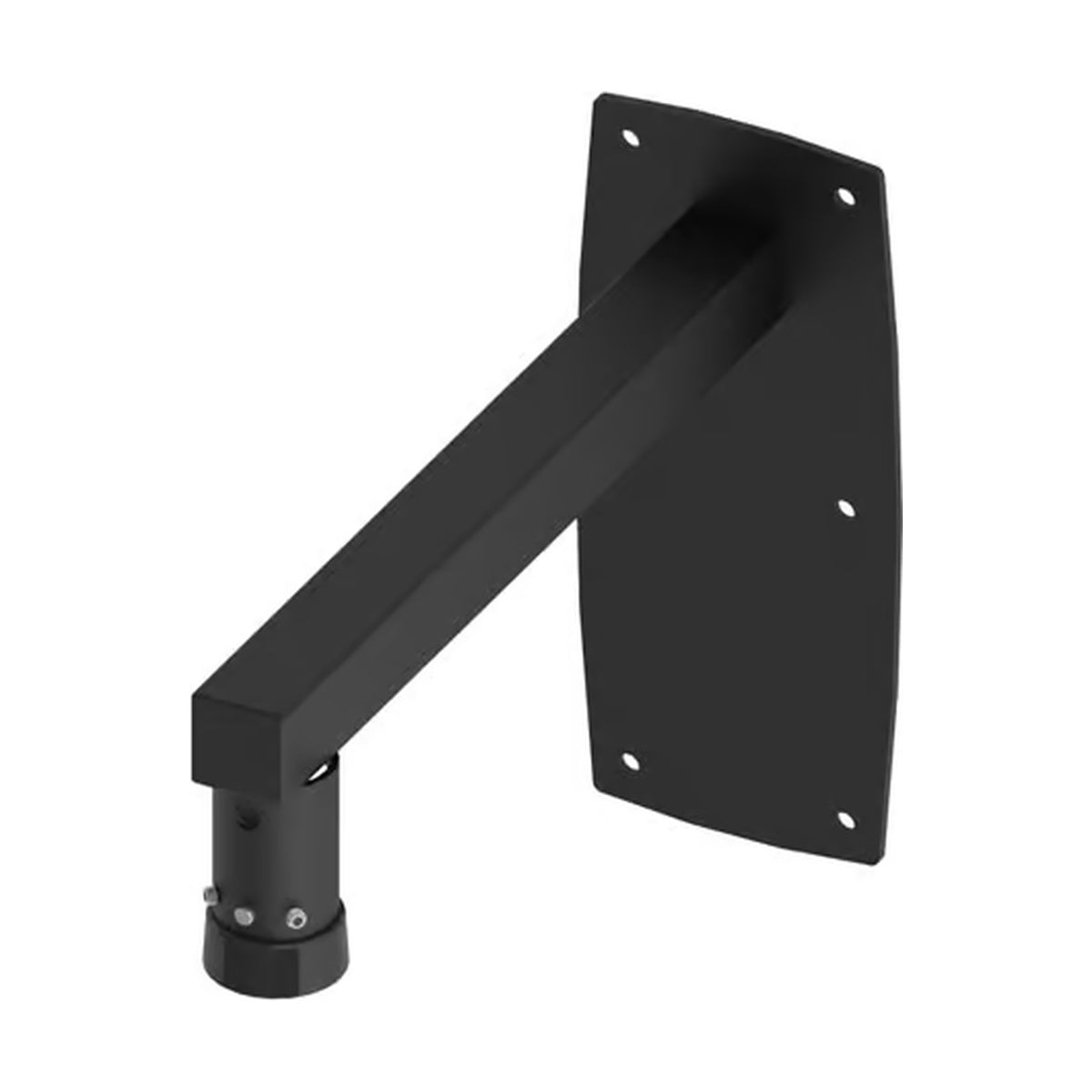

Solton WB 2 Wall Bracket — a two-axis wall bracket for installing compact Solton enclosures, allowing tilt and rotation adjustment after the column is already mounted.
An install in a conference room, bar, or church rarely allows for a perfect column position on the first attempt, since room geometry and audience placement usually force an adjustment on site. WB 2 is a two-axis wall bracket built for exactly that: the enclosure attaches to a single point on the wall, and the tech adjusts both tilt and rotation without moving the anchor points.
Two Adjustment Axes Instead of Two Separate Brackets
A conventional fixed wall bracket needs the angle measured precisely before drilling, since correcting it later means taking the whole mount apart. The two-axis design of WB 2 lets a tech fine-tune both vertical tilt and horizontal rotation after the column is already on the wall, which matters on uneven walls, varying ceiling heights, or a seating layout that changes later.Stable Mounting Geometry for Continuous Operation
A bracket running for years in a permanent install has to hold its set position without loosening from low-frequency vibration or temperature swings. WB 2 transfers the column's load into the wall through a rigid mounting plate with joints that lock once adjusted, giving a repeatable position without regular service corrections.KEY FEATURES
- Two-axis adjustment: vertical tilt and horizontal rotation in one bracket
- Compatible with compact Solton installation enclosures, including the IP 8 and CT 5 N
- Rigid mounting plate transferring load directly into the wall
- Column position can be fine-tuned after permanent mounting
- Lockable joints holding position without play during operation
- Simplified mounting with no teardown required for angle correction
TECHNICAL SPECIFICATIONS
- Type: two-axis wall bracket (tilt + rotation)
- Material: steel, corrosion-resistant finish
- Compatibility: compact Solton installation enclosures with matching mounting inserts
- Installation: fixed to the wall, enclosure bolted to the bracket plate
- Adjustment: independent tilt and rotation, locked once positioned
- Application: permanent installation in conference rooms, bars, restaurants, and churches
