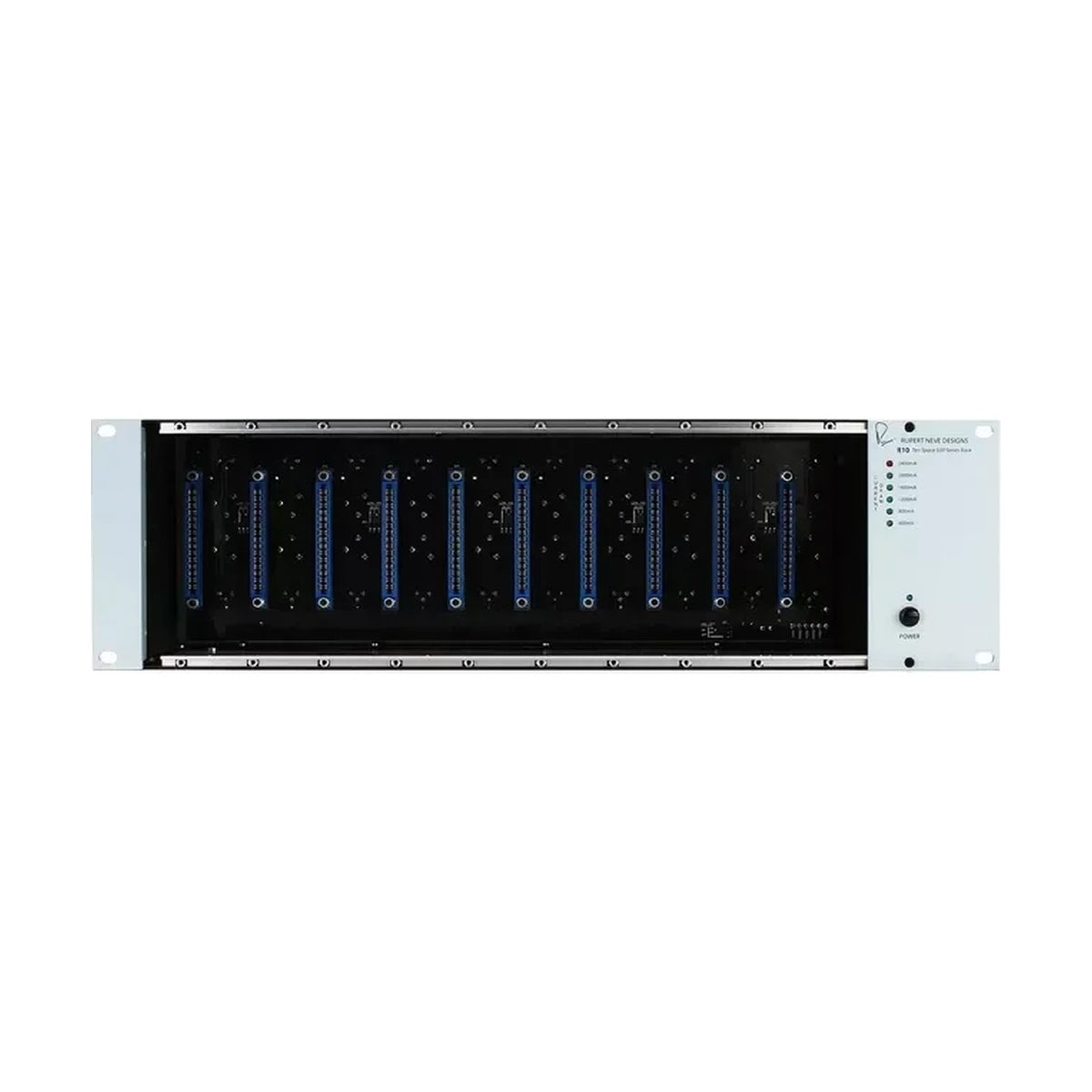

Rupert Neve Designs R10 Ten Space 500 Series Rack – 10-slot 500 Series chassis with 150% required current to prevent power rail failure under high load. Double-shielded internal PSU minimizes magnetic induction. LED current metering for monitoring and troubleshooting.
Solid steel enclosure with sliding nuts for various modules, variable-position screw holes for out-of-spec compatibility. VCA buss link on channel pairs (1-2, 3-4, etc.) for compressors like 535/543. Universal IEC input (100-240VAC, 50/60Hz, 50W). Balanced XLR/TRS I/O per channel (inputs parallel, outputs to two destinations).
Road-ready with ultra-strong rack ears; robust +48V phantom supply. Compatible with any properly-designed 500 Series modules.
MAIN FEATURES
- 150% current for 10 slots
- LED current meter
- Double-shielded PSU
- Balanced XLR/TRS I/O
- VCA buss link function
- Variable screw holes
- Universal voltage input
- Solid steel construction
TECHNICAL SPECIFICATIONS
- Slots: 10
- Power Supply: Internal, ±16VDC/+48VDC; max 2650mA (2400mA modules + 250mA phantom)
- Input Voltage: 100-240VAC, 50/60Hz, 50W

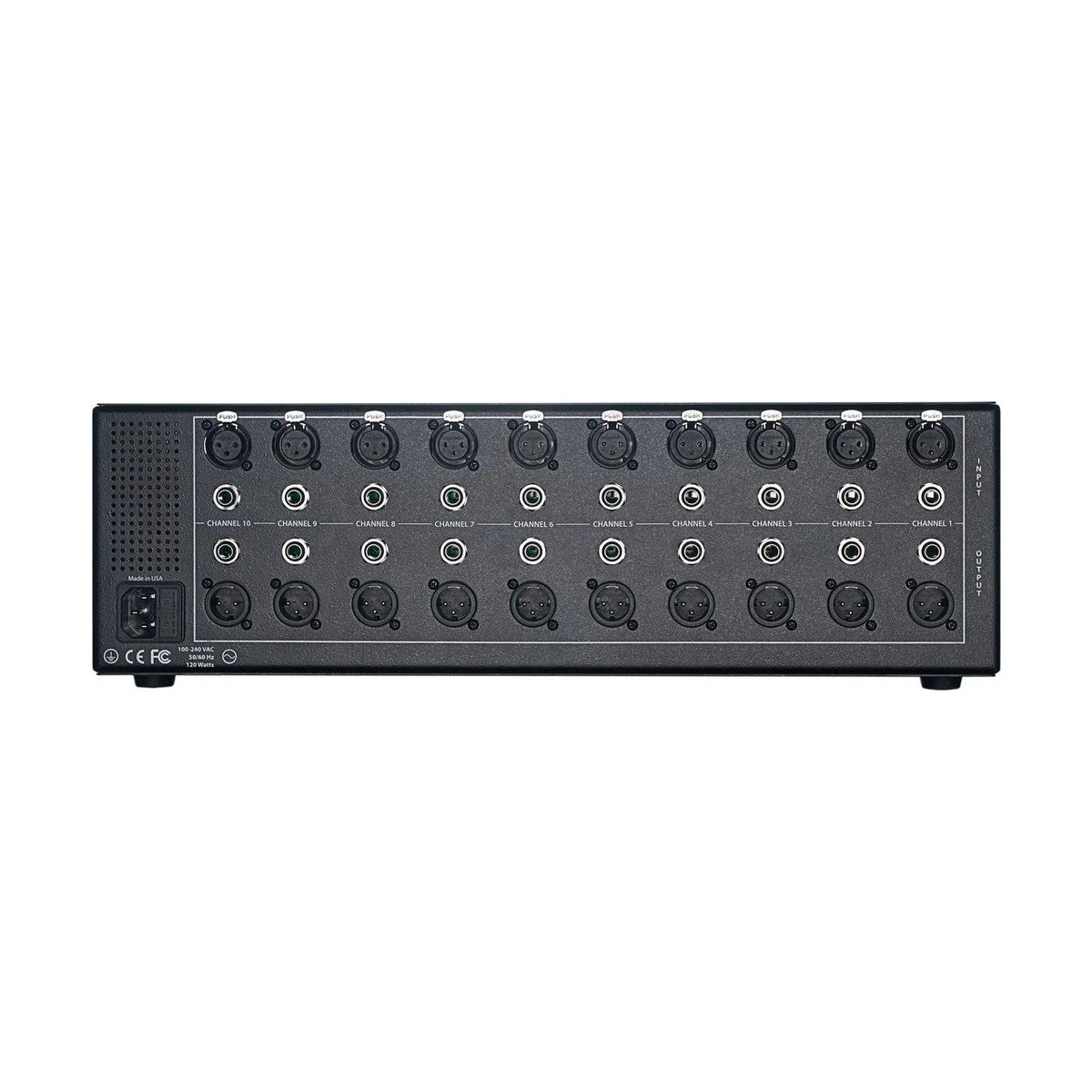

- I/O: Balanced XLR/TRS inputs/outputs per channel
- Dimensions (W x D x H): 19 x 7.5 x 5.25 in
- Weight: 14 lbs
- Included: R10 rack, power cord, 4-40 screws for modules
- Product Code: R10
