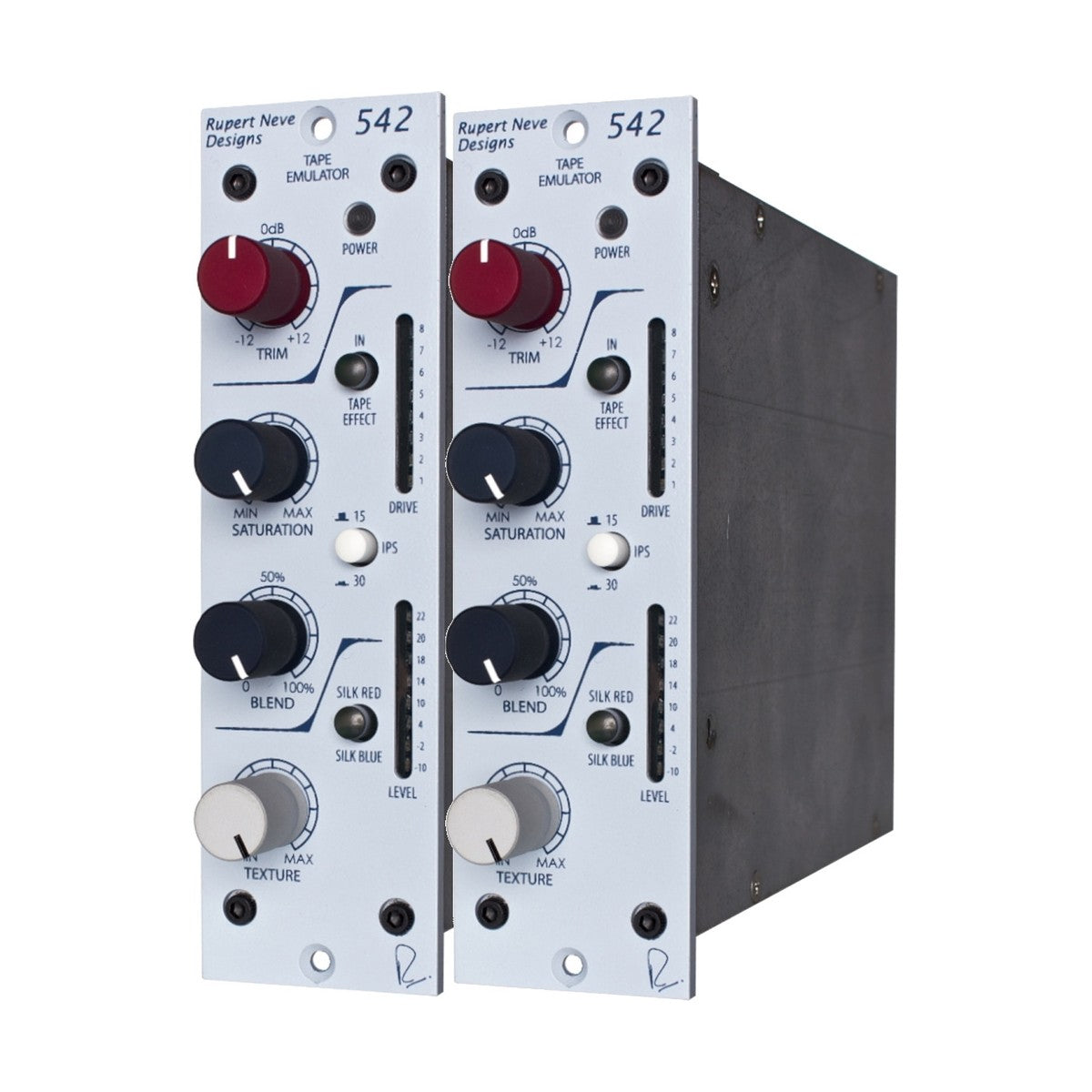

Rupert Neve Designs 542 Tape Emulator Stereo Pair is a matched pair of 500-series modules that turns your lunchbox into a true analog tape-style color box. Each 542 provides authentic “True Tape” saturation with variable drive, blend and switchable 15/30 IPS speeds, giving you everything from subtle warmth and glue to heavy compression, harmonics and vintage-style soft clipping. As a stereo pair, it becomes a powerful tool on mix buses, drum groups, stereo instruments and full mixes.
Unlike typical digital plug-ins, the Rupert Neve Designs 542 uses a fully analog tape-emulation circuit that drives a dedicated transformer acting as a virtual record head, followed by an EQ-compensated playback stage. The Saturation control determines how hard you hit this “tape”, while the integrated soft-clip circuit gently rounds off transients at higher drive levels. The Silk circuit with Texture control lets you further tailor the harmonic profile – from thicker, weighty lows and low-mids in Silk Blue to more forward presence and sheen in Silk Red – and the Blend knob sets the balance between pre- and post-tape signals, making it easy to dial in just the right amount of color.
KEY FEATURES
- True analog tape emulation and line driver in a 500 Series format
- Stereo pair (two 542 modules) ideal for buses, stereo sources and mix processing
- Selectable 15 IPS and 30 IPS modes for different low-frequency, saturation and transient behavior
- Continuously variable Saturation control with smooth soft clipping at higher drive
- Silk circuit with Texture control and selectable Silk Red / Silk Blue tonalities
- Blend control to mix pre-tape and post-tape signals for easy parallel coloration
- TRIM control with approximately ±12 dB range to optimize input level into the tape circuit
- Two 8-segment LED meters per module for output Level and Tape Drive indication
- Excellent on vocals, drums, bass, synths, guitars, mix buses and masters
TECHNICAL SPECIFICATIONS
- Format: 500 Series module (1 slot per 542)
- Type: Tape Emulator / Line Driver with True Tape and Silk circuitry
- Frequency response (main output): approx. 20 Hz – 22 kHz, with tape modes introducing musical LF boost and HF shaping depending on settings
- Level control: TRIM ±12 dB ahead of the tape circuit
- Tape controls: 15 / 30 IPS switch, Saturation knob, Tape In/Out, Blend
- Tonal shaping: Silk Red / Blue with variable Texture
- Meters: Dual 8-segment LED bargraphs (Level and Drive) per module
- Power consumption: roughly 110–125 mA at ±16 V DC from the 500-series rack
- Module dimensions: 1-slot 500 format, approx. 1.5" W × 5.25" H × 5.9" D
- Included: 2 × Rupert Neve Designs 542 Tape Emulator modules (stereo pair)
