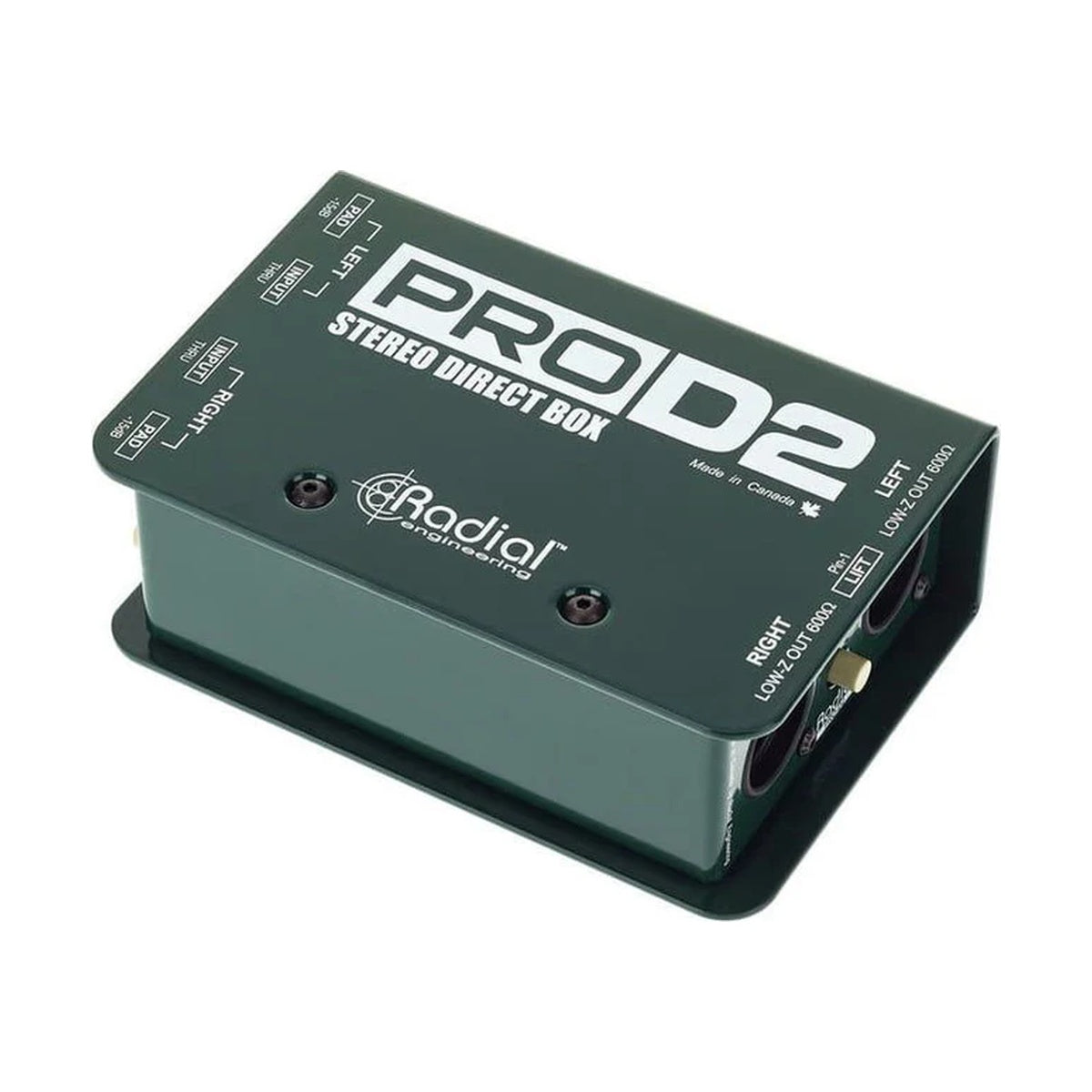

Radial Engineering ProD2 – two-channel passive direct box for connecting stereo keyboards or high-output instruments to PA or recording setup without noise or distortion. Features two Eclipse ET-DB2 transformers for excellent audio performance, handles large transients without distortion. Ideal for digital pianos, samplers, drum machines, other instruments. Can act as splitter for mono outputs. Rugged 14-gauge steel enclosure (127 x 114 x 64 mm, 0.9 kg) with book-end design.
ProD2 eliminates hum and buzz from ground loops, with merge function to sum stereo to mono. 20 Hz–20 kHz bandwidth, linear response. Hand-soldered for durability.
As versatile tool, blends simplicity with precision, ready for live/recordings without compromise.
MAIN FEATURES
- Two-channel passive DI for keyboards/instruments
- Smooth, warm sound rounding digital edge
- Handles huge transients without distortion
- Merge function for stereo-to-mono
- Eliminates hum/buzz from ground loops
- Book-end design with 14-gauge steel
- Can serve as mono splitter
- Portable: 127 x 114 x 64 mm, 0.9 kg
TECHNICAL SPECIFICATIONS
- Type: Passive DI, 2-channel
- Transformers: 2x Eclipse ET-DB2
- Frequency Response: 20 Hz–20 kHz, <1.5 dB deviation above 18 kHz
- Inputs: 2x 1/4" TS unbalanced
- Outputs: 2x XLR balanced, 1x 1/4" THRU
- Input Impedance: 1.4 MOhm
- Output Impedance: 150 Ohms
- THD + N: 0.05% @ 1 kHz
- Noise: -99 dBu (22 Hz–22 kHz)
- Dynamic Range: 109 dB
- Power: Passive, no power required
- Dimensions (W × H × D): 127 x 114 x 64 mm
- Weight: 0.9 kg
- Included: ProD2, manual
- Product Code: RAD-PROD2
