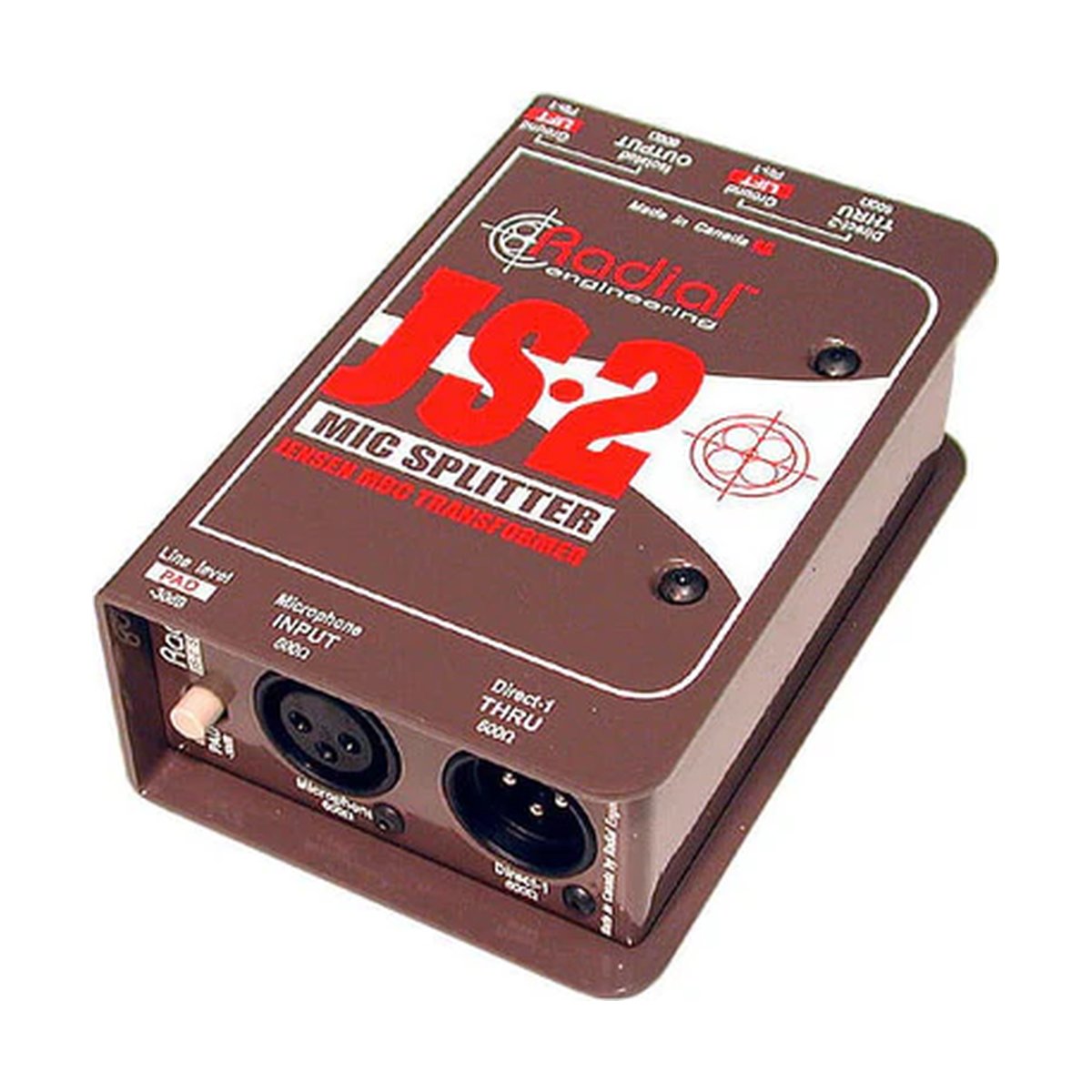

Radial Engineering JS2 – high-performance mic splitter with Jensen transformers, dividing mic signal to two outputs without degradation or noise. Provides galvanic isolation, eliminating ground loops and hum. Ideal for stage/studios. Compact steel enclosure (127 x 114 x 64 mm, 0.9 kg) with book-end design.
JS2 uses nickel-laminated core transformer for low distortion, wide bandwidth. Switches: ground lift, -30 dB PAD on input. XLR input, outputs: 1 isolated XLR, 1 direct 1/4". Hand-soldered for durability.
As pro tool, blends simplicity with precision, ready for live/recordings without compromise.
MAIN FEATURES
- 1-in/2-out splitter (1 isolated, 1 direct)
- Jensen transformer for clarity/isolation
- Eliminates hum/ground loops
- -30 dB PAD for line-level
- Ground lift on outputs
- Book-end design with 14-gauge steel
- Handles long lines without loss
- Portable: 127 x 114 x 64 mm, 0.9 kg
TECHNICAL SPECIFICATIONS
- Input: XLR balanced, impedance 1.4 kOhm
- Outputs: 1x XLR isolated, 1x 1/4" direct
- Frequency Response: 20 Hz–20 kHz (±0.5 dB)
- THD + N: < 0.01% @ 1 kHz
- Noise: < -100 dBu
- Dynamic Range: 136 dB
- Power: Passive
- Dimensions (W × H × D): 127 x 114 x 64 mm
- Weight: 0.9 kg
- Included: JS2, manual
- Product Code: RAD-JS2
