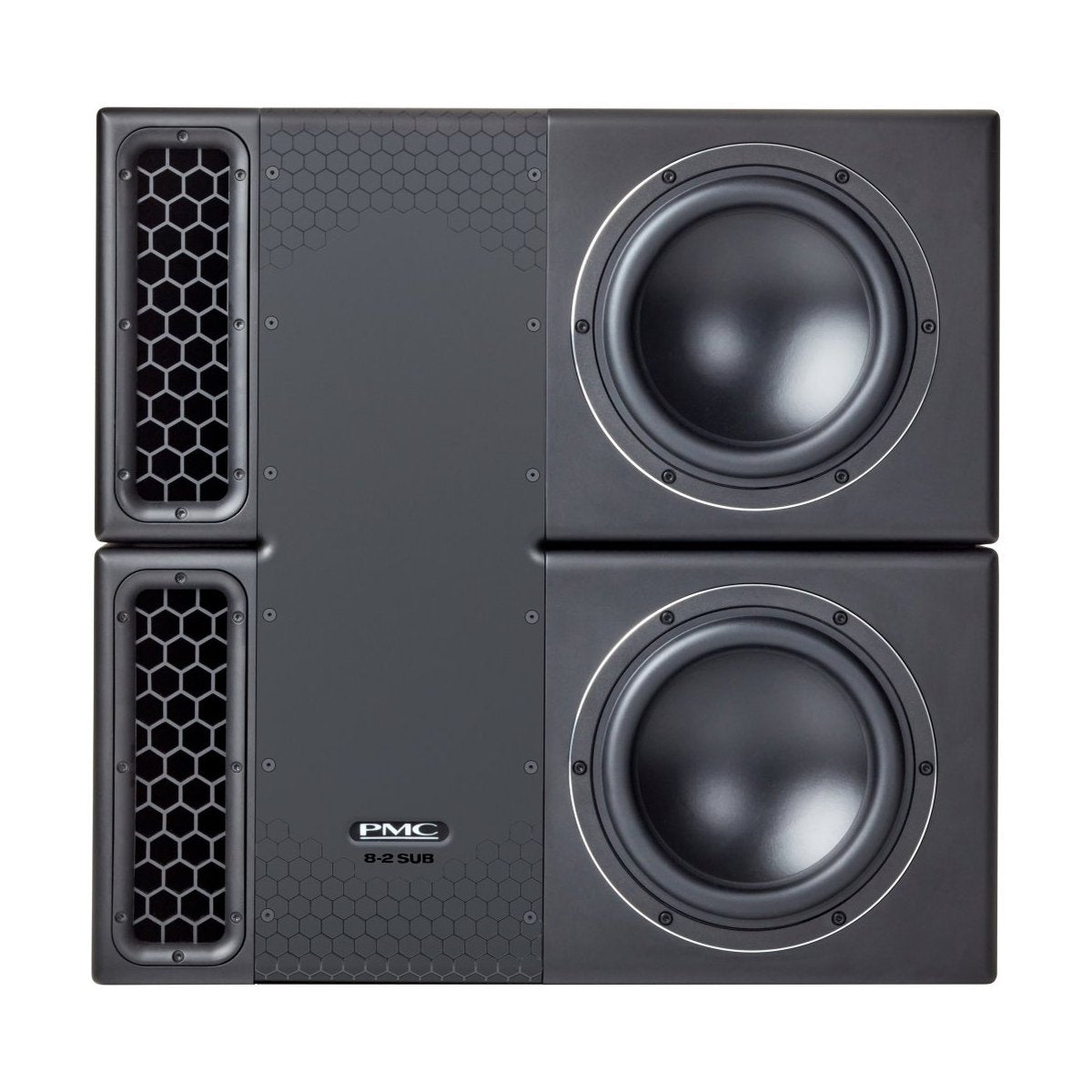

PMC 8-2 SUB-R – Active subwoofer with twin 8″ PMC studio LF drivers, 2×400 W Class-D amplification, ATL™ bass loading, DSP control with SoundAlign™ web interface, and left-hand cabinet version.
The PMC 8-2 SUB-R delivers deep, powerful bass down to 25 Hz with precision and low distortion. Its twin 200 mm (8″) drivers each run on dedicated 400 W Class-D amps and sit in a 3 m effective ATL™ transmission line. Seamless integration with PMC 6-2 or 8-2 monitors is possible via XBD configuration, or use it standalone in multichannel and immersive systems. DSP functions—including HP/LP filters, shelving & parametric EQ, delay, phase invert, and level trim—are accessed on the rear panel or via the LAN-based SoundAlign™ interface. The left-handed cabinet positions drivers on the outer edge of a stereo array for optimal stereo imaging.
KEY FEATURES
- Twin 200 mm (8″) PMC studio low-frequency drivers
- 2×400 W RMS Class-D amplification
- ATL™ bass-loading technology (3 m effective length)
- Frequency response: 25 Hz – 500 Hz (–3 dB)
- Max continuous SPL: 115 dB @1 m; Peak SPL: 121 dB @1 m
- XLR inputs, switchable analog (+20/+24 dBu, 22 kΩ) or AES3 digital (16/24 bit, 18–192 kHz, 110 Ω)
- XLR AES3 digital output (24-bit @ 96 kHz)

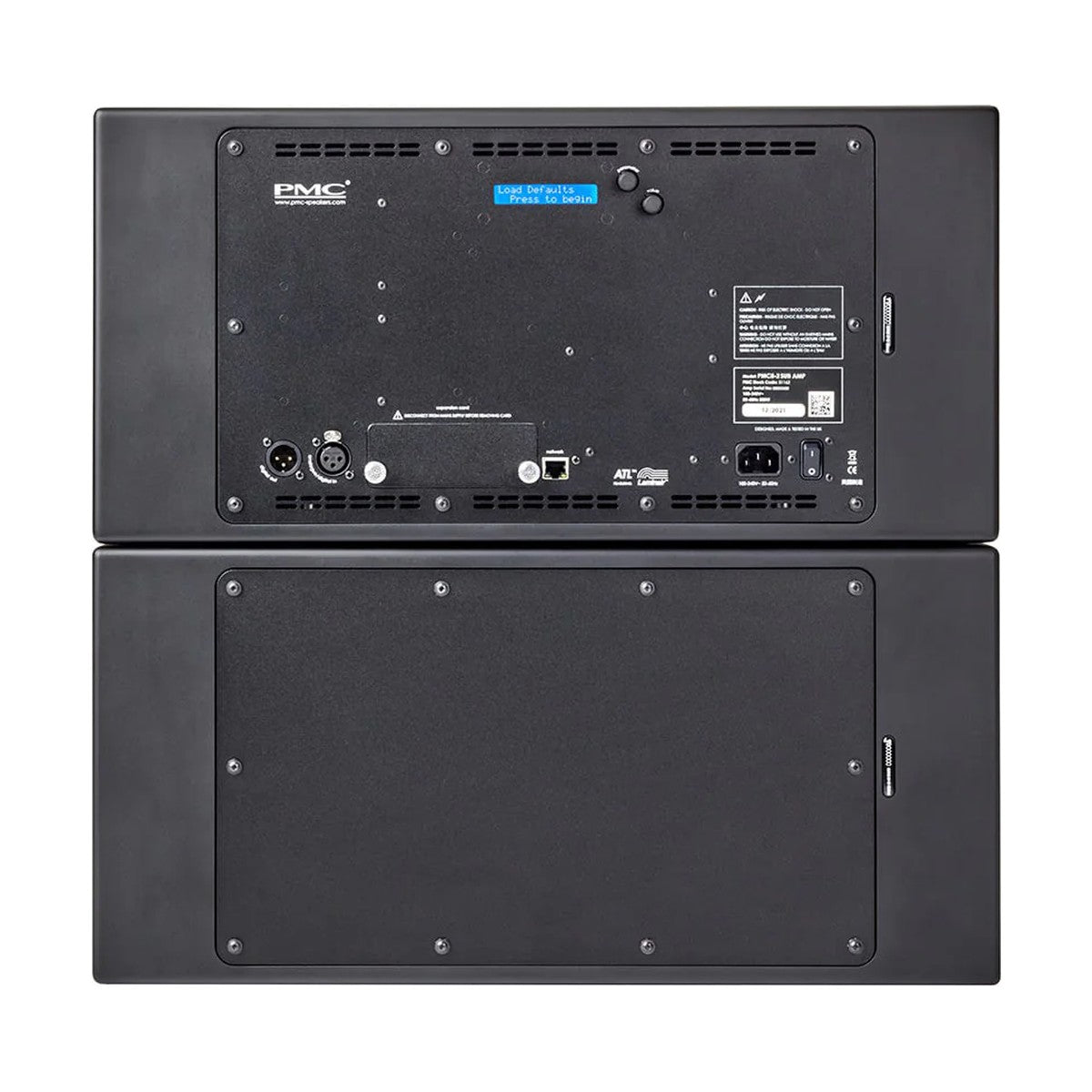

- SoundAlign™ web interface via RJ45
- On-board DSP: HP/LP filters (20–200 Hz), ±10 dB level trim, 0–30 ms delay, phase invert, shelving filters, 5-band parametric EQ, 3 user presets
- Latency: 2.4 ms
- Expansion card slot for future upgrades
TECHNICAL SPECIFICATIONS
- Type: Active subwoofer with twin 8″ drivers & ATL™ bass loading
- Drive units: 2×200 mm (8″) PMC studio drivers
- Effective ATL™ length: 3 m (9.8 ft)
- Sensitivity: +4 dBu = 98 dB SPL @1 m
- Max continuous SPL: 115 dB @1 m (quarter space)
- Max peak SPL: 121 dB @1 m (quarter space)
- Inputs: XLR analog & AES3 digital (switchable)
- Input impedance: 22 kΩ (analog), 110 Ω (digital)
- Output: XLR AES3 digital (24-bit @ 96 kHz)
- Amplifier power: 300 W RMS per driver channel
- Power consumption: 25 W idle, 300 W max
- Mains: 100–240 VAC auto-switching, 50–60 Hz (IEC C14)
- Cabinet dimensions (H×W×D): 266 × 551 × 440 mm (10.5″ × 21.7″ × 17.3″)
- Weight: 18.5 kg (40.8 lbs) each
