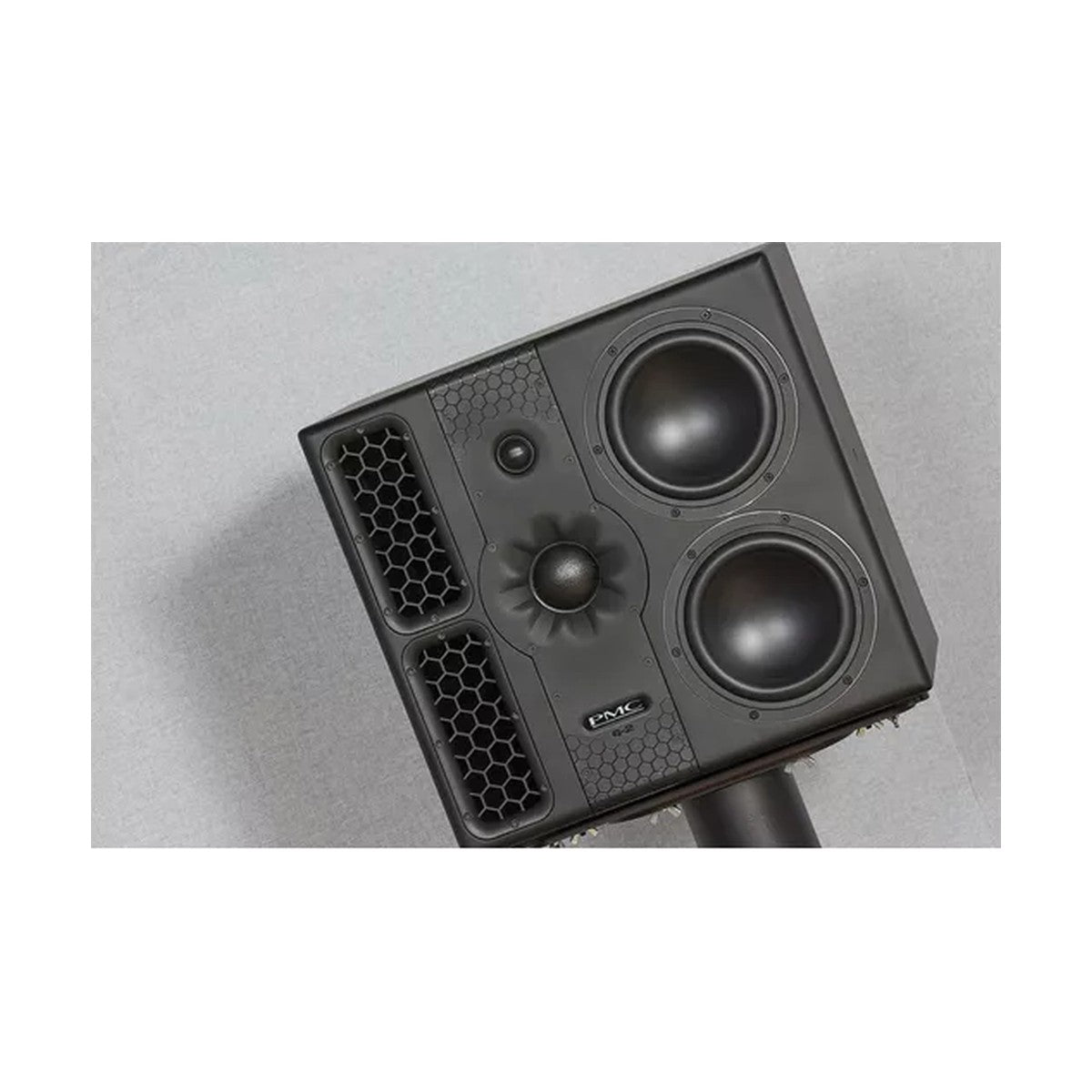

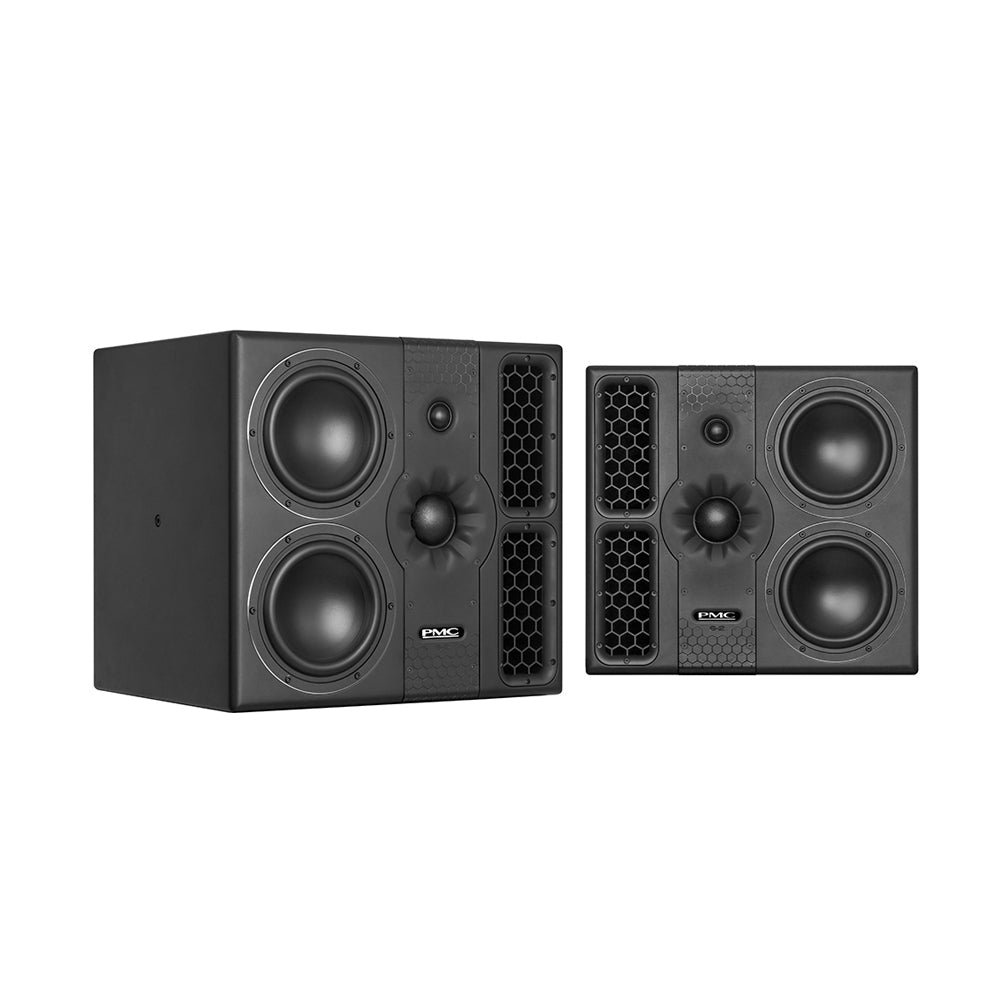

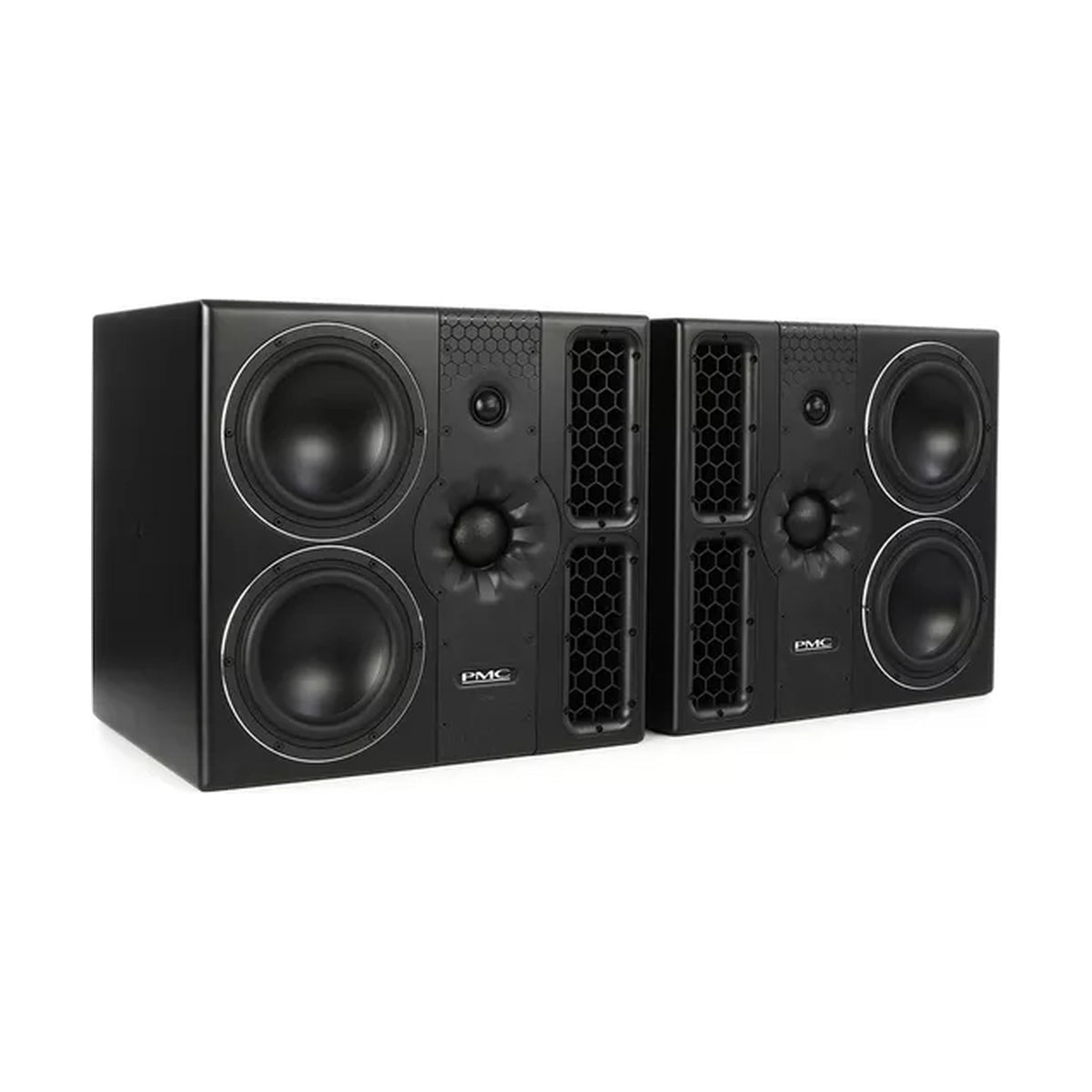

PMC 6-2 – active 3-way studio monitors with ATL™ bass loading technology. It delivers main-monitor scale, depth, and dynamics, enabling fast and confident mix decisions without listening fatigue.

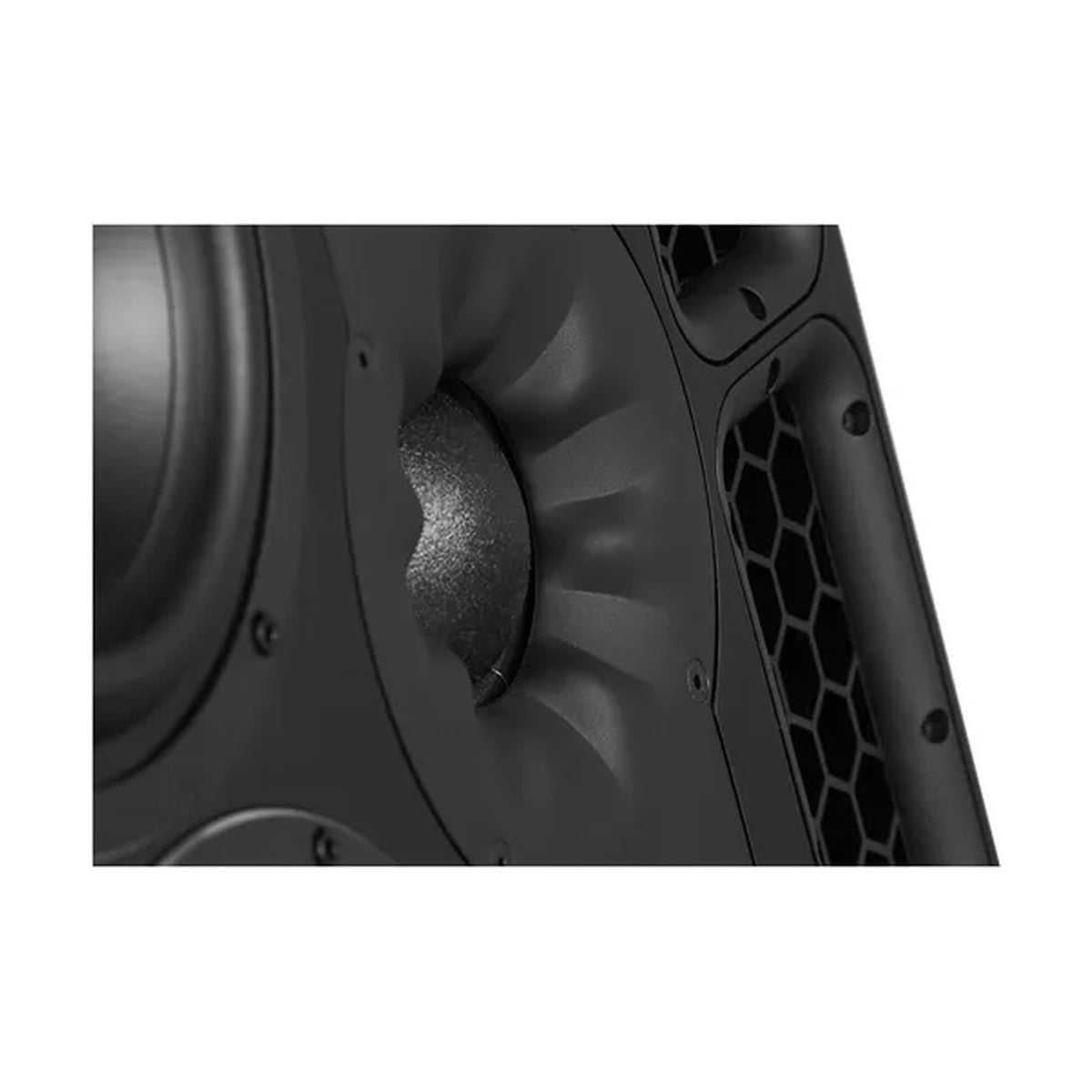

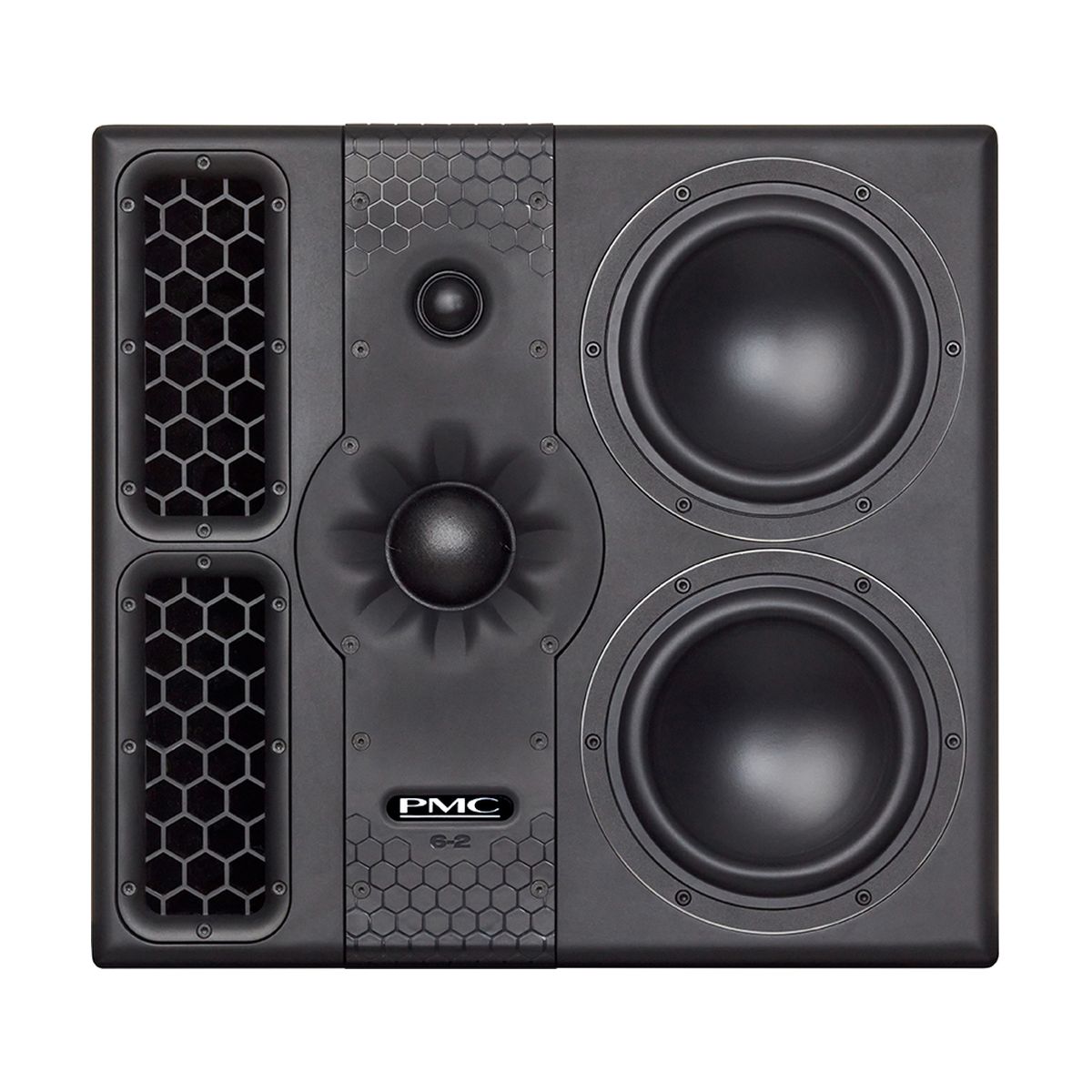

This speaker combines two custom 6-inch ultra-long-throw bass drivers, the innovative PMC55 2-inch soft-dome midrange unit, and a precision-built 1-inch soft-dome tweeter. The PMC55's distinctive 'N-compass' waveguide enhances wide dispersion and remarkable midrange projection; combined with the high-performance tweeter, the result is an ultra-wide and stable stereo image with a smooth, natural in-room response.

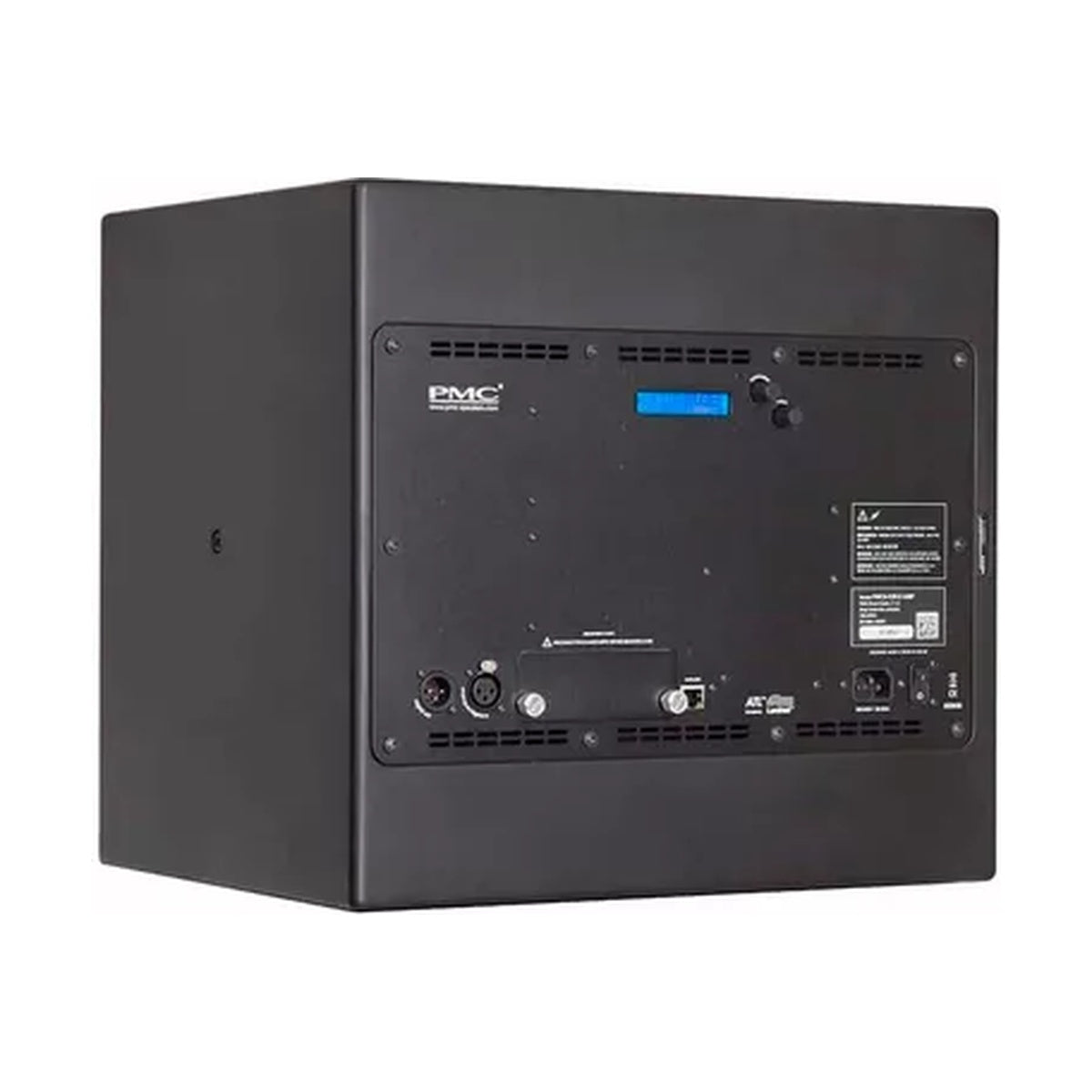

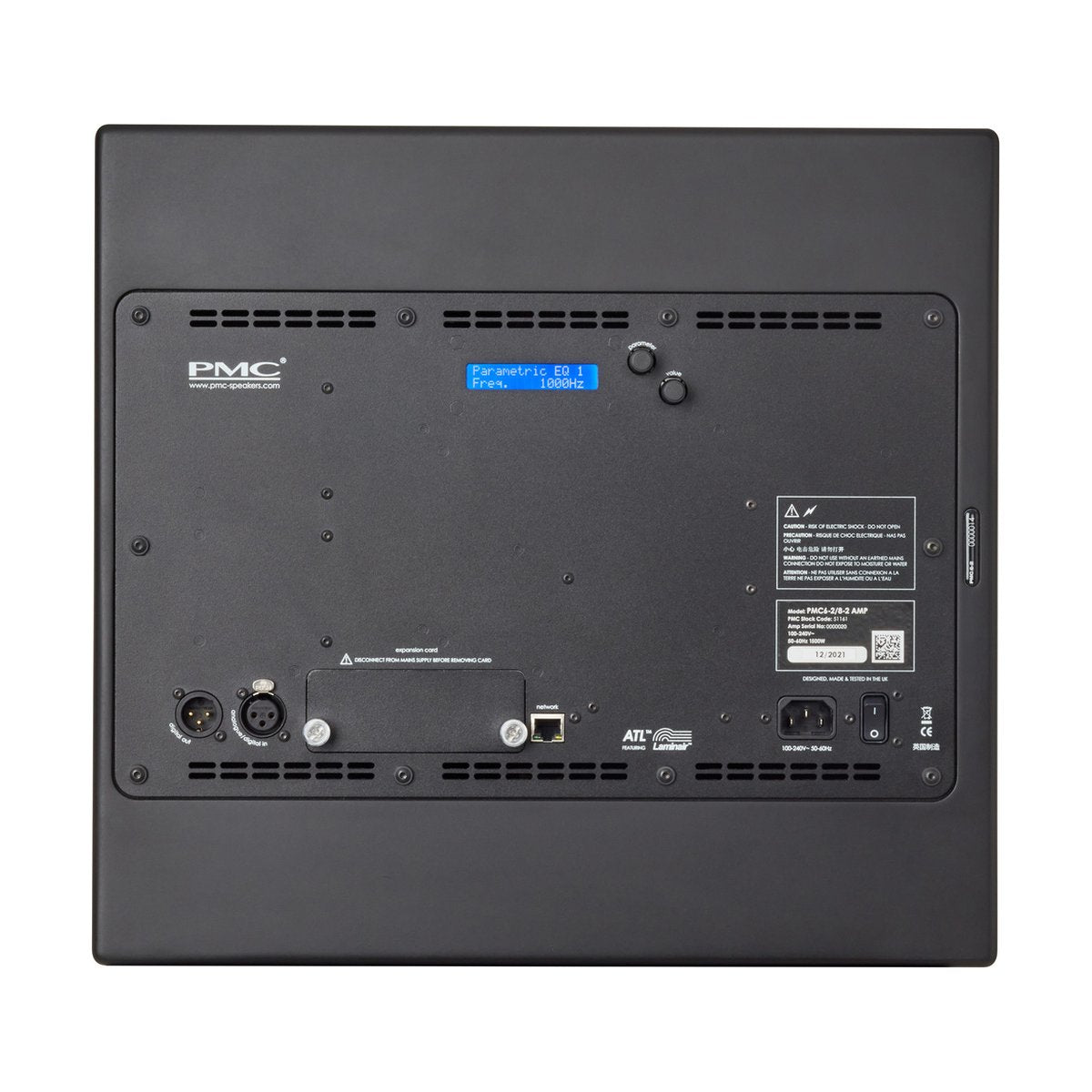

Each bass driver is individually powered by a cutting-edge 400W Class-D amplifier and seamlessly integrated via sophisticated DSP-based crossovers. The monitor is configured using rear-panel controls or the browser-based SoundAlign™ software, with comprehensive boundary and EQ options. Laminair™ airflow technology, visible in the monitor's hexagonal vent ducts, further reduces colouration and enhances dynamics and efficiency.
KEY FEATURES
- Active 3-way nearfield reference monitor with ATL™ bass loading
- 2 × 6-inch ultra-long-throw bass drivers, each with dedicated 400W Class-D amplifier
- PMC55 2-inch soft-dome midrange unit with 'N-compass' waveguide
- 1-inch soft-dome tweeter (400W Class-D)
- Total amplification: HF 400W, MF 400W, LF 2 × 400W Class-D
- Laminair™ technology – hexagonal vent ducts for reduced colouration and improved dynamics
- Advanced DSP-based crossovers; browser-based SoundAlign™ configuration software
- Balanced analogue XLR input and AES3 digital input (16/24-bit, 18–192 kHz)
- AES3 digital 'through' output (24-bit, 96 kHz) for daisy-chaining
- 5-band parametric EQ, LF/HF shelving filters, up to 30ms delay

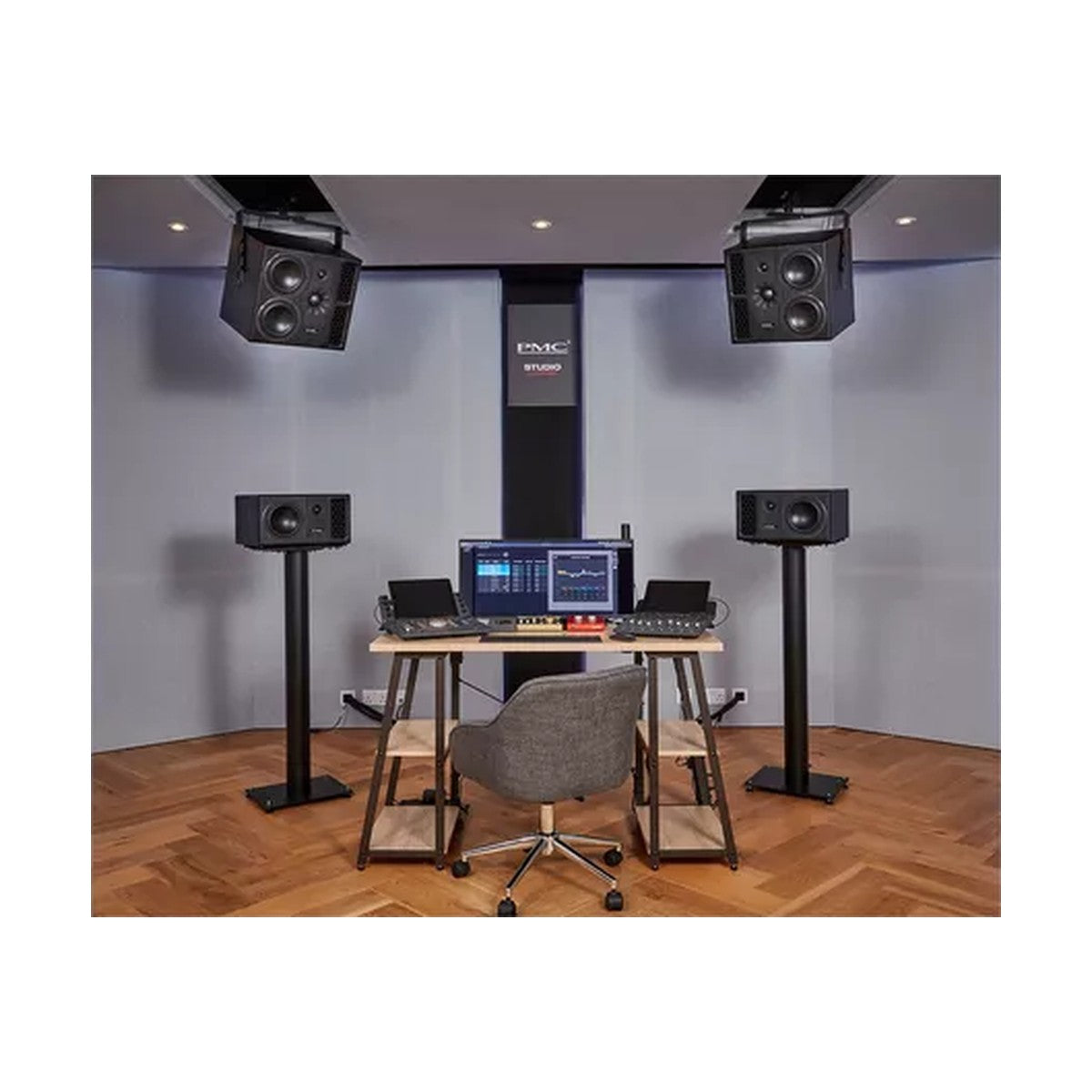

- Ceiling-mount yoke for multi-channel or immersive audio systems
TECHNICAL SPECIFICATIONS
- Type: active 3-way nearfield reference monitor with ATL™ transmission line bass loading
- LF drivers: 2 × 150 mm (6") extended-excursion, paper diaphragm
- MF driver: PMC55 – 55 mm (2") textile soft dome
- HF driver: 27 mm (1") textile soft dome
- Frequency response: 33 Hz – 25 kHz (−3 dB, 1 m, full space, on-axis)
- Max. continuous SPL: 109 dB @ 1 m
- Max. peak SPL: 121 dB @ 1 m
- Sensitivity: +4 dBu input = 98 dB SPL @ 1 m
- Latency: 2.4 ms
- Amplifiers: HF 400W, MF 400W, LF 2 × 400W Class-D
- Analogue input: balanced XLR, max. +20/+24 dBu, 22 kΩ impedance
- Digital input: AES3 (16/24-bit, 18–192 kHz), 110 Ω impedance
- Digital output: AES3 24-bit 96 kHz (through)
- Network: RJ45 for SoundAlign™ web interface
- Mains: 100–240V AC auto-switching, 50–60 Hz (IEC C14)
- Power consumption: 50W (idle) / 1500W (max)
- Cabinet dimensions: 400 × 430 × 372 mm (H × W × D)
- Weight: 21.3 kg (47 lbs) each
- Effective ATL™ transmission line length: 2 m
- 3-year Wired Tunes warranty
