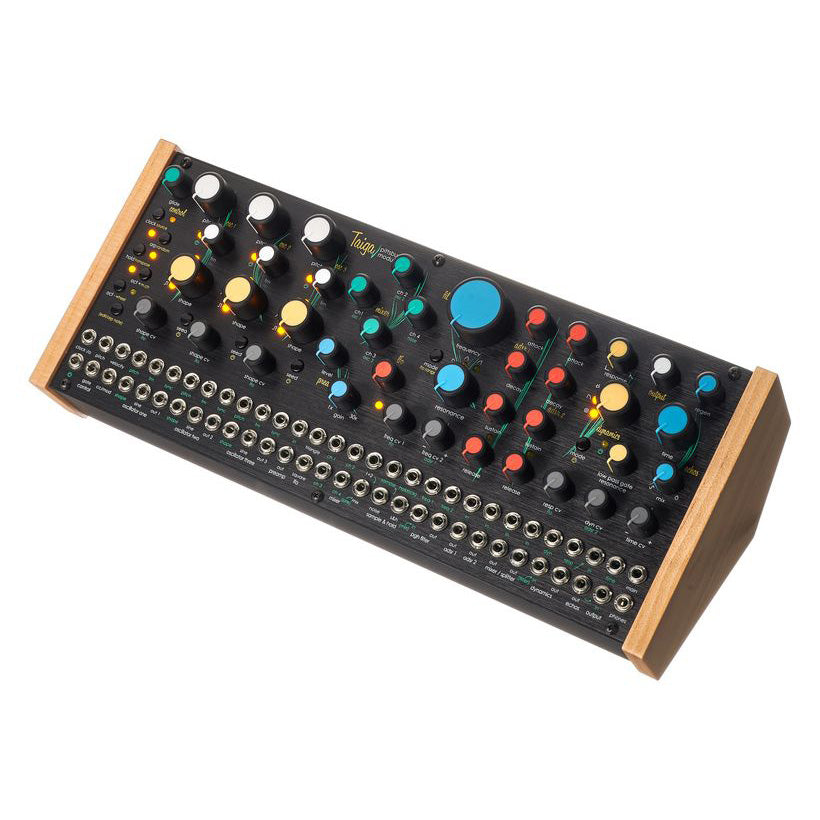

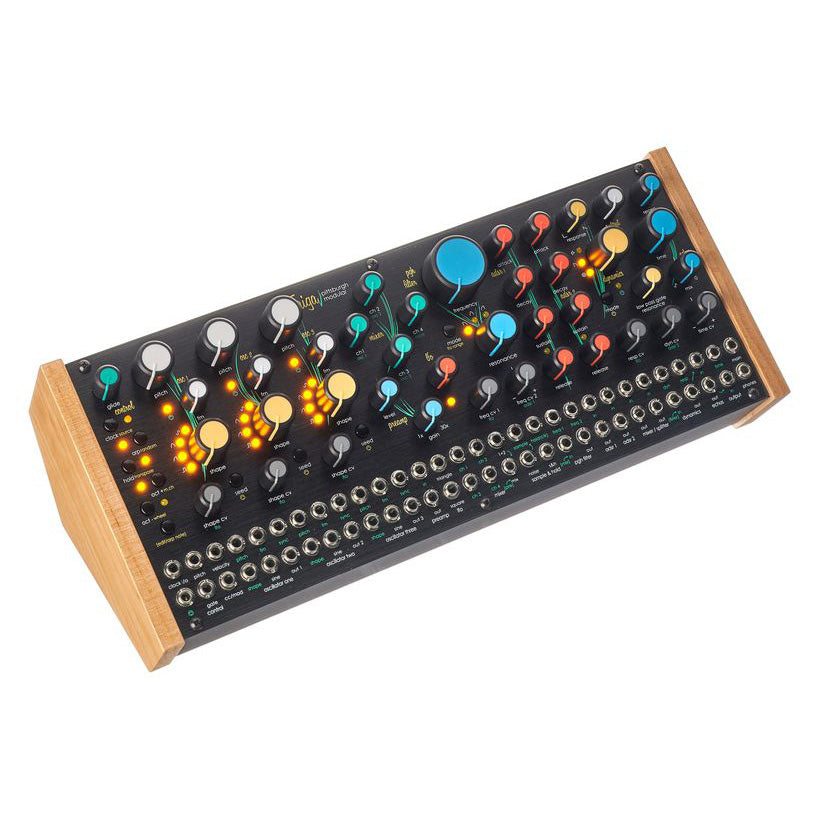

Semi-Modular Paraphone Analogue Synthesizer
- Completely analogue signal path
- 3 Oscillators, each with controls for pitch, FM, shape (sine, triangle, sawtooth, square) and waveshaper/wavefolder
- Noise generator
- 4-Channel mixer
- Adjustable preamplifier with overdrive circuit for external signal sources (gain: x30)
- LFO with two waveforms (triangle and square) and wide frequency range (41s - 500Hz)
- Multimode filter (low-pass, band-pass, high-pass) with adjustable frequency and resonance, plus 2 CV inputs with attenuators, 2 ADSR envelopes
- Dynamics controller, switchable between VCA and lowpass gate, with adjustable frequency/bias, resonance and decay phase
- Analog delay with adjustable delay time, feedback and wet/dry mix
- Built-in MIDI-to-CV/Gate interface
- Further features: Arpeggiator, random sequencer, clock divider, clock generator with tap tempo, sample & hold, 2-channel mixer
- CV inputs for all parameters and outputs for all individual sections
- Line output and headphone output: 3.5 mm jack
- Can be used as a complete Eurorack synthesiser voice (width: 60 U, depth: 40 mm)
- Power consumption when used as a module: 650mA (+12V) / 475mA (-12V)
- Dimensions of desktop housing (W x D x H): 326 x 135 x 112 mm
- Weight: 1812 g

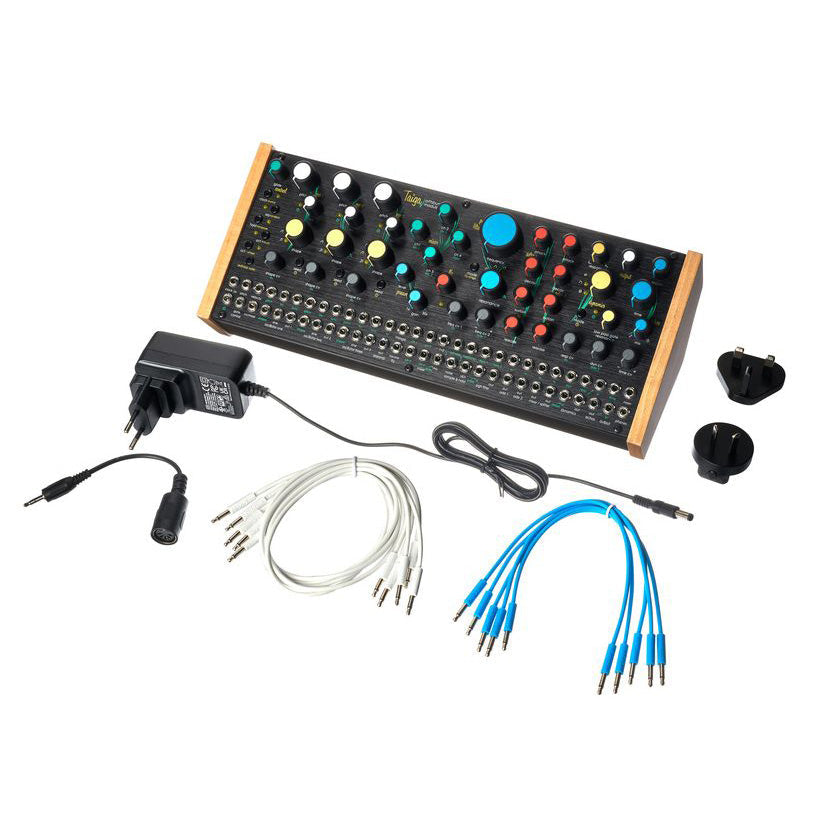

- Incl. external power supply unit, TRS-DIN MIDI adapter and 10 Nazca Noodles patch cables
