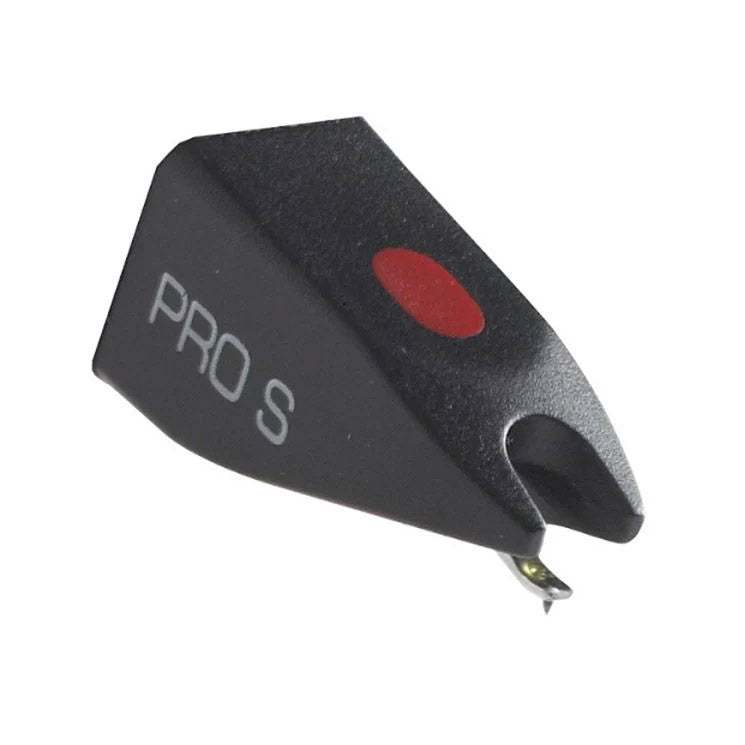

Ortofon Stylus PRO S is an entry-level DJ stylus with a spherical diamond tip and durable cantilever, designed for newcomers to the DJ scene, offering versatility and consistent performance, Output voltage 5 mV, Tracking angle: 20°.
The Ortofon Stylus PRO S serves as an excellent entry-level option for aspiring DJs seeking reliable and affordable equipment. This stylus features a spherical diamond tip, which minimizes scratching, and a robust cantilever, built to withstand the demands of active turntable use. The PRO S offers considerable versatility across various applications, providing consistent performance as a good all-around choice for various DJing needs. It delivers balanced sound quality, making it suitable for a wide range of musical genres and performance styles.
Stylus PRO S Features
- Spherical diamond stylus
- Durable cantilever
- Suitable for newcomers to DJing
- Versatile performance
- Consistent and reliable output
- Good all-around performance
Stylus PRO S Specifications
- Channel balance at 1 kHz: 2 dB
- Output voltage at 1 kHz, 5cm/sec: 5 mV
- Channel separation at 1 kHz: 20 dB
- Frequency response: 20 Hz - 20 kHz (+/- 2 dB)
- Tracking ability at 315Hz: 70 μm
- Compliance, dynamic, lateral: 7 μm/m N
- Stylus type: Spherical
- Stylus tip radius: R 18 μm
- Tracking force range: 3.0-5.0 g (30-50 mN)
- Tracking force, recommended: 4.0 g (40 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Cartridge weight: 18.5 g / 5.0 g
- Recommended load resistance: 47 kOhm
- Internal inductance: 450 mH
- Recommended load capacitance: 200-600 pF
