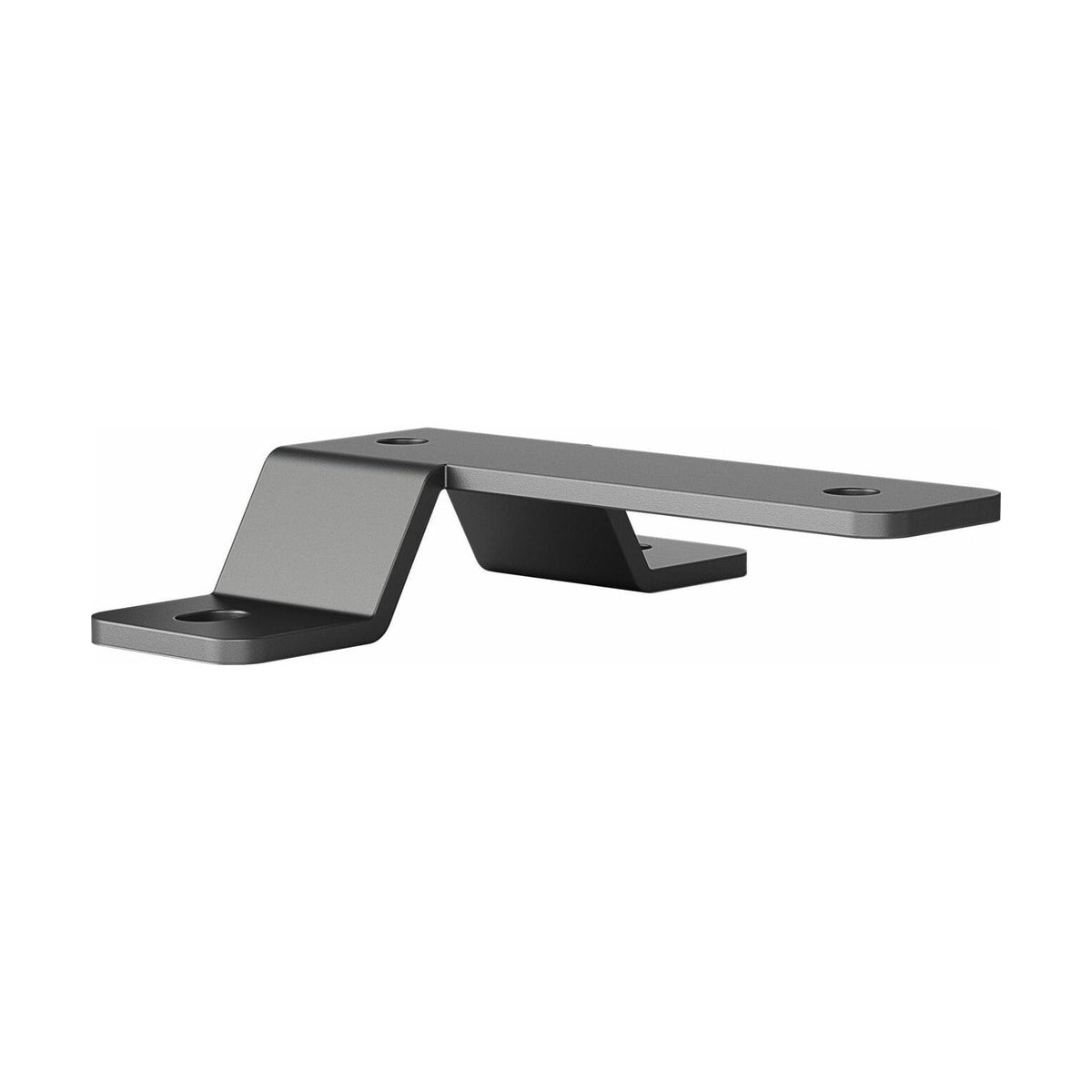

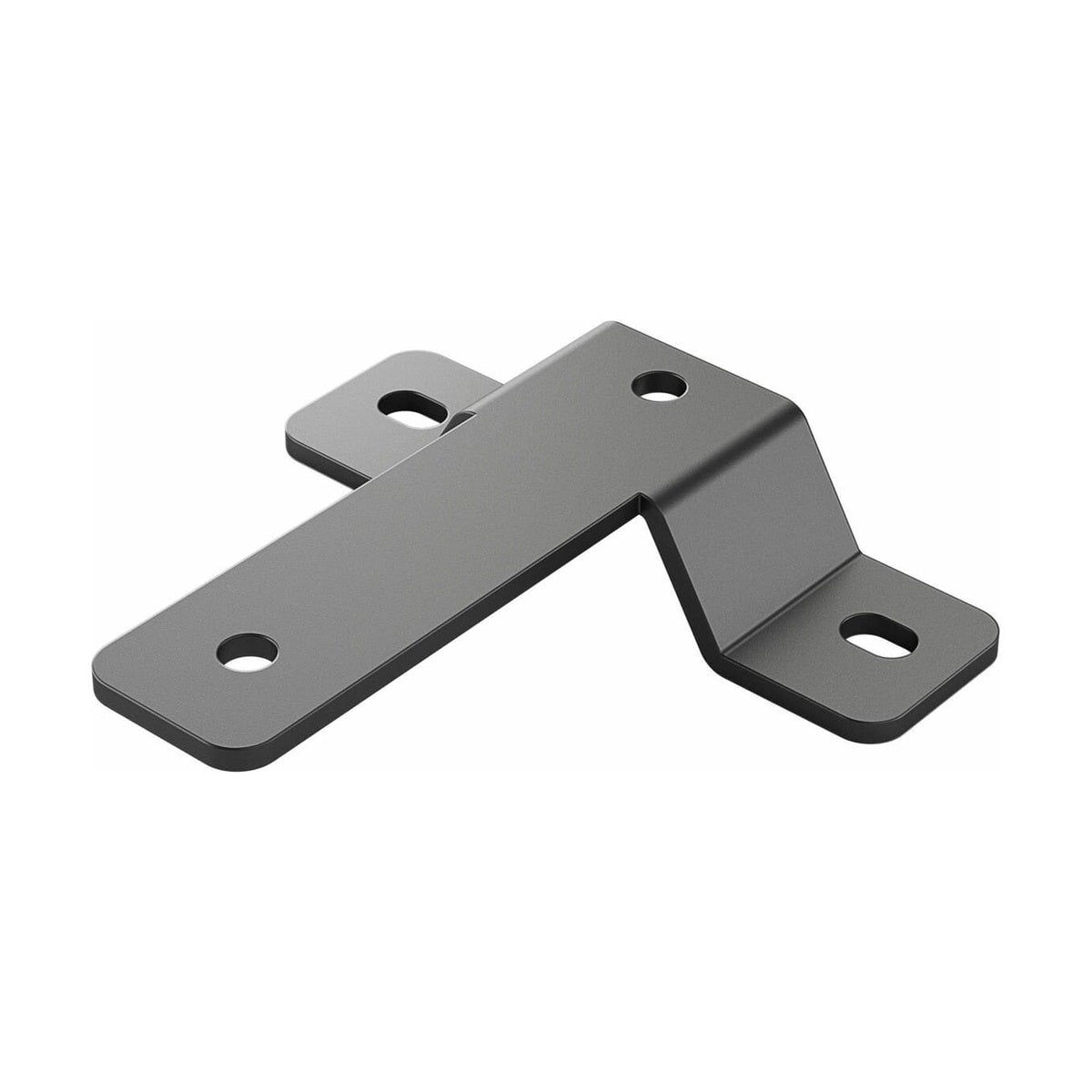

IsoAcoustics V120 T-Adapter – a T-shaped steel mounting plate that links a speaker with a horizontal 70–76.2mm hole spacing to the V120's L-Bracket or C-Bracket.
Unlike the 50x107 and 107x50 adapters, the T-Adapter handles monitors with a two-hole rear mount rather than a four-point pattern – a common layout on certain Focal, Eve Audio, Genelec, and JBL models. Without a matching adapter plate, mounting this type of speaker to the V120 would mean drilling extra holes or improvising a fit the manufacturer never intended.
Matching a two-point mounting pattern
The T-Adapter has mounting holes spaced horizontally between 2¾" and 3" (70–76.2mm), matched to the rear mounting points of the brands above, and bolts to the speaker cabinet using the included M6 and ¼"-20 fasteners. The plate's T-shape spreads the support point symmetrically around the speaker's center of gravity, which matters for mounting stability on the L-Bracket arm, where an uneven load could otherwise cause a slight tilt in the cabinet over time.A compact alternative to the larger plates
Because of its smaller footprint compared to the 50x107 and 107x50 adapters, the T-Adapter works well on monitors with a narrower rear panel, where a larger mounting plate wouldn't clear the bass port or other cabinet features. The install keeps the V120's full isolation function intact – damping structural vibration and adjusting tilt up to 45°.KEY FEATURES
- T-shaped steel plate for two-point rear mounting
- Adjustable hole spacing between 70–76.2mm
- Mounts to the V120 L-Bracket and C-Bracket
- Includes M6 and ¼"-20 mounting bolts
- Compatible with Focal, Eve Audio, Genelec, and JBL models
- Compact footprint suited to narrower speaker cabinets
TECHNICAL SPECIFICATIONS
- Material: steel
- Hole spacing: 70–76.2mm (2¾"–3"), horizontal
- Speaker-side mounting: M6 and ¼"-20 bolts (included)
- Compatible brackets: V120 L-Bracket, V120 C-Bracket
- Compatible brands: Focal, Eve Audio, Genelec, JBL
- Dimensions: 92 x 95 x 20mm
- Package contents: adapter plate, M6x12 bolts (2), lock washers (4), M6 washers (2), M6 nuts (2), M6x16 bolts (2), ¼"-20 bolts (2)
