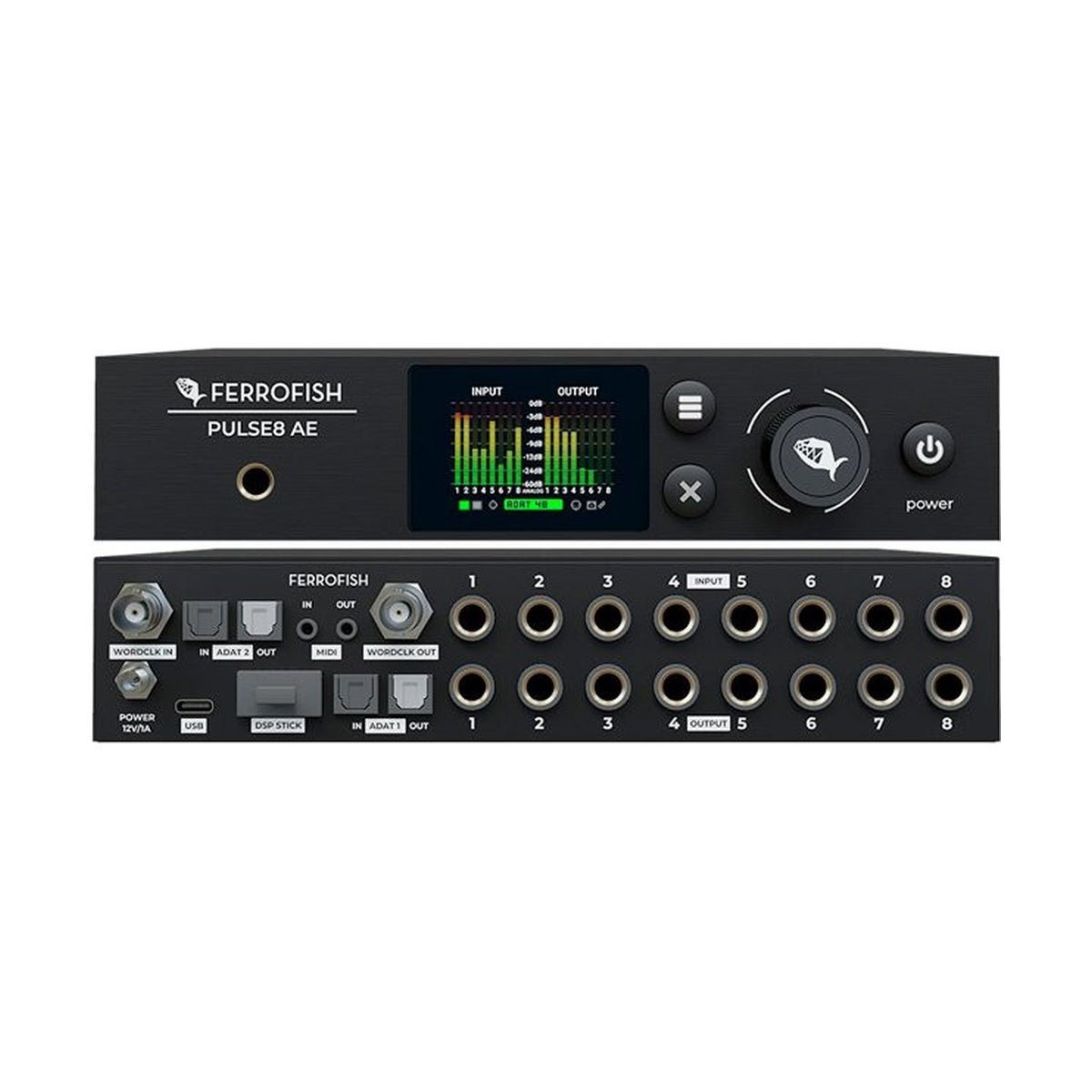

Ferrofish Pulse8 AE – compact and versatile AD/DA converter with 8 balanced analog inputs and outputs plus comprehensive ADAT connectivity up to 192 kHz. Based on premium ESS conversion technology, it delivers crystal-clear conversion with professional +20 dBu headroom. Features a high-resolution front-panel display for instant visual feedback on all input and output signals, simplifying real-time monitoring and configuration. Ideal for home studios, live, and professional setups with seamless analog-digital integration.
The device offers intuitive front-panel control via knob and buttons, RemoteFish software over USB-C for remote configuration on Mac and PC, and MIDI I/O for system integration. Dedicated headphone output powered by a separate ESS DAC, with 1 dB-step volume control and four-stage amplification for any headphone impedance. Modular design with optional DSP stick slot for future upgrades, ensuring investment protection.
MAIN FEATURES
- Intuitive Visual Monitoring: High-resolution display with multi-colored level meters for all I/O signals
- Premium Conversion Architecture: ESS converters with temperature-compensated clock, up to 192 kHz and +20 dBu headroom
- Professional Remote Control: RemoteFish software via USB-C, MIDI I/O for firmware updates
- Flexible Integration Hub: Routing with ADAT (up to 16x16 channels @48 kHz) and Word Clock sync
- Advanced Headphone Monitoring: Dedicated output with ESS DAC, 1 dB steps, 4-stage amplification
- Future-Proof Expandability: Slot for optional DSP stick for processing upgrades
TECHNICAL SPECIFICATIONS
- Analog I/O: 8 balanced TRS inputs (1/4"), 8 balanced TRS outputs (1/4")
- ADAT Connectivity: 2 ADAT inputs, 2 ADAT outputs; SMUX/4 to 192 kHz (4x4 channels), SMUX/2 to 96 kHz (8x8), 48 kHz (16x16)
- Clocking: Word Clock I/O (BNC); High-stability internal clock or external sync via ADAT/Word Clock
- Signal Monitoring: Front display with multi-colored level meters for I/O
- Controls: Front-panel knob and buttons; USB-C to RemoteFish
- Connectivity: USB-C, MIDI I/O
- Power: External 12V/1A, locking barrel connector
- Headphone Output: 6.3 mm jack; ESS DAC, 1 dB steps, 4-stage amplification
- Converters: Analog outputs: SNR 120 dB (typ.), THD+N -115 dB; Inputs: SNR 112 dB (typ.), THD+N -108 dB
- DSP: Expandable via optional DSP stick
- PLL: Digitally controlled PLL with jitter reduction
- Internal Word Clock: 125 MHz oscillator; Accuracy ±1.5 ppm, drift ±2.5 ppm
- Fuse: Internal polyfuse, self-resetting
- Power Adapter: 12V, 3A or 1A, positive pin; Included
- Power Consumption: Nominal 12 VA, standby <1 VA
- Operating Temperature: +5°C to +45°C
- Humidity: <75%, non-condensing
- Dimensions: Compact, rack or desktop suitable
