Ferrofish Pulse16 is a high-quality AD/DA/ADAT converter that provides 16 balanced analog inputs and outputs, four optical ADAT Toslink ports, and Word Clock and MIDI connectivity. With a sampling rate of up to 96 kHz and 24-bit resolution, the Pulse16 is an ideal solution for recording studios and professional audio systems. It allows seamless integration of a wide range of analog and digital equipment, making studio expansion easy while improving signal processing quality.
KEY FEATURES OF FERROFISH PULSE16
- Professional AD/DA Conversion: 16 balanced TRS inputs and outputs supporting signal levels up to +20 dBu, adjustable in 1 dB steps.
- ADAT Signal Transmission: 4 ADAT Toslink inputs and outputs, supporting 16x16 channels at up to 96 kHz sampling rate.
- Advanced Cirrus Logic Converters: Next-generation low-latency converters ensure transparency and precise sound reproduction.
- High-Quality Clocking: A temperature-compensated clock with jitter reduction ensures signal stability.
- Internal Routing Matrix: Flexible configuration allows any of the 48 inputs to be mapped to any of the 48 outputs in blocks of eight channels.

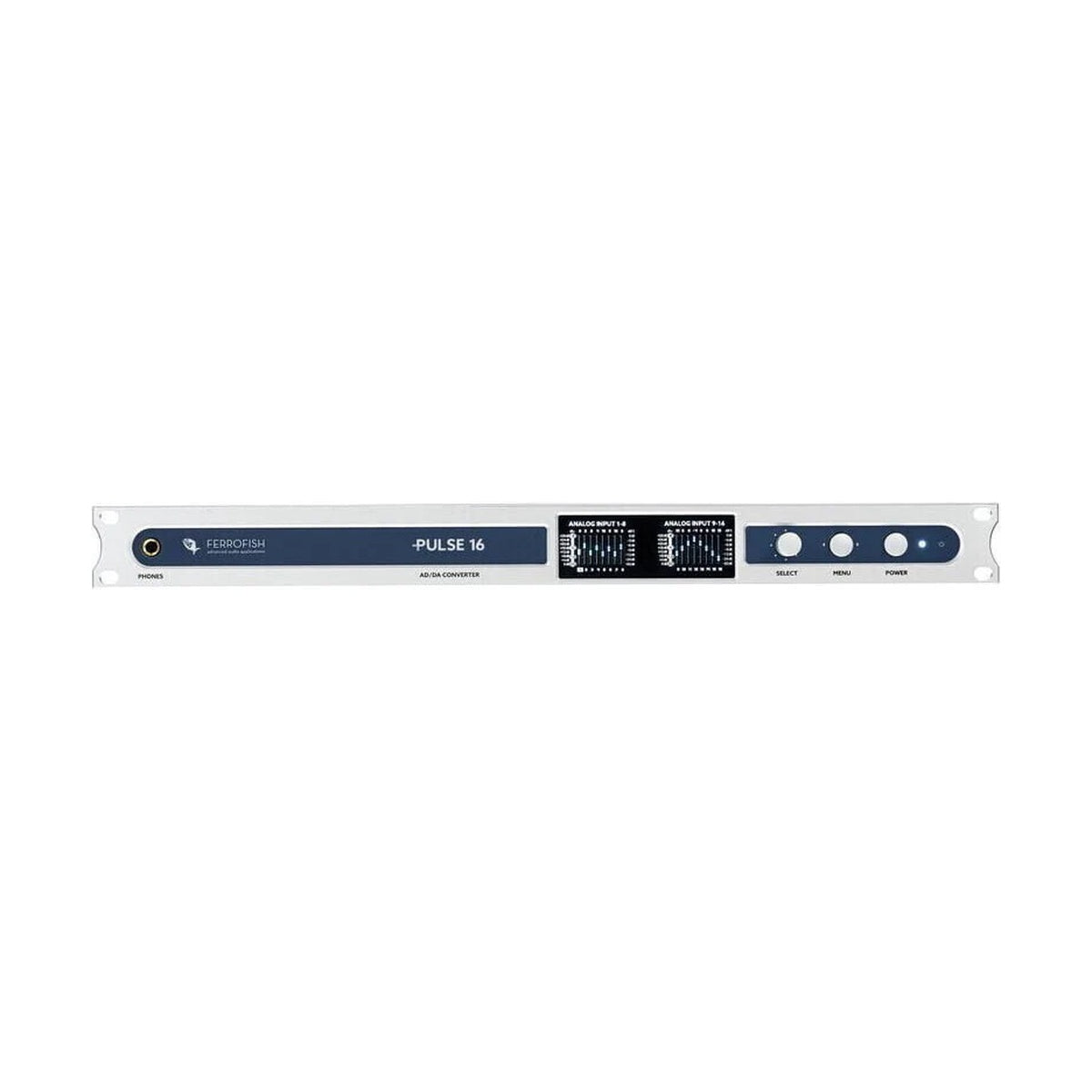

- Dual TFT Display: Two high-resolution screens provide real-time monitoring of all 32 input and output signals.
- Built-in Headphone Output: Enables direct monitoring of any mono or stereo signal from the device.
- Intuitive Control: Ferrofish Smart Guide system offers contextual hints, simplifying device operation.
- Word Clock Support: BNC Word Clock input and output ensure precise synchronization in studio systems.
- Optional MADI Module: Expandable with an MADI SFP module (sold separately) for increased flexibility.
- Compact and Fanless Design: 1U rack-mountable unit for easy integration into professional systems.
TECHNICAL SPECIFICATIONS OF FERROFISH PULSE16

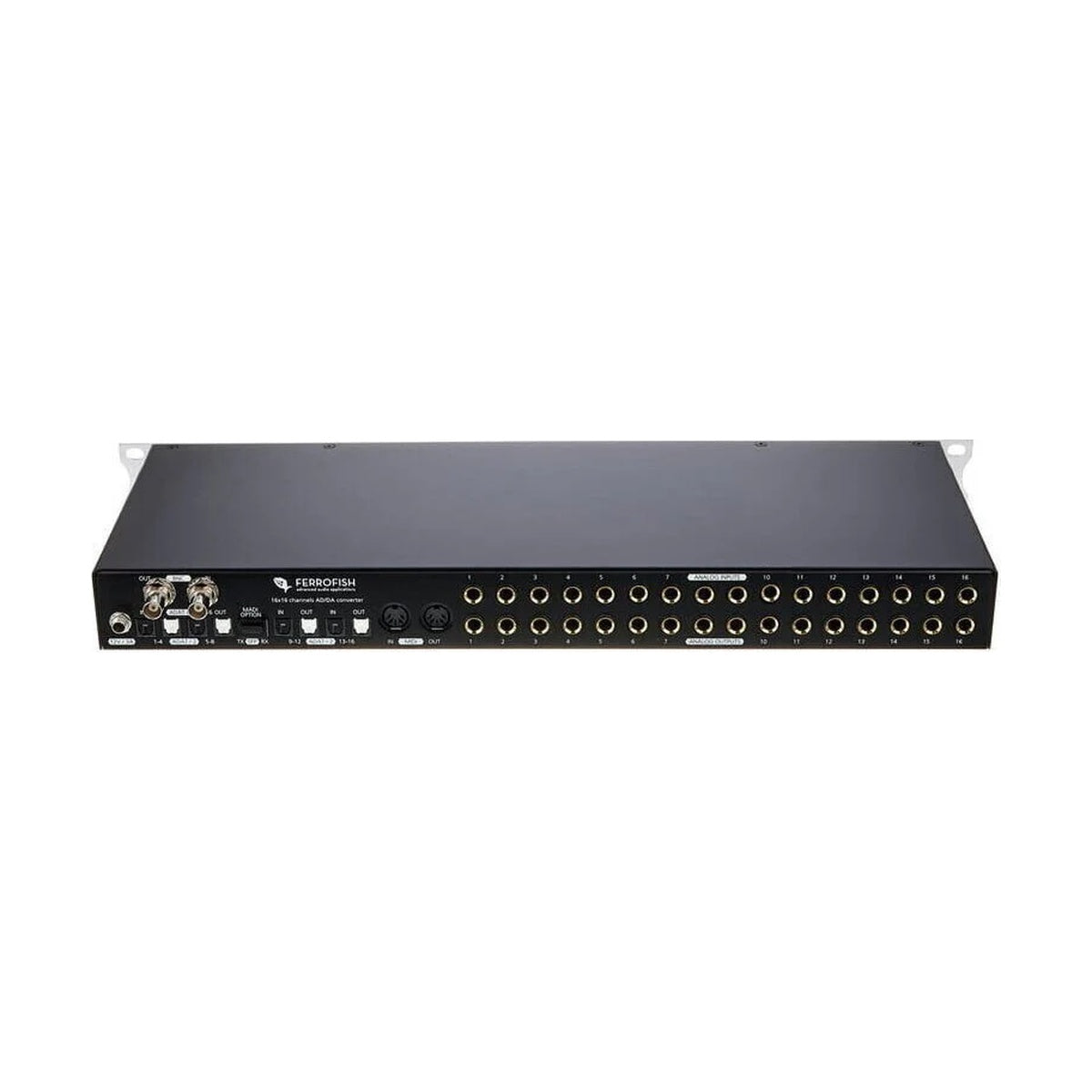

- Analog Inputs: 16 x TRS, balanced
- Analog Outputs: 16 x TRS, balanced
- Conversion: 24-bit / 96 kHz
- ADAT Inputs/Outputs: 4 x input, 4 x output (Toslink, ADAT)
- Word Clock: Input and output via BNC
- MIDI: 5-pin DIN input and output
- Headphone Output: 6.3 mm TRS
- Displays: 2 x TFT for real-time level monitoring
- Routing Matrix: Yes, flexible signal assignment
- Optional Expansion: Slot for MADI SFP module
- Housing: 1U rack-mountable, fanless design
Ferrofish Pulse16 is an excellent choice for professionals seeking high-quality conversion and flexible integration in recording systems. With extensive connectivity options and modern features, this converter ensures reliability and precision in any audio application.
